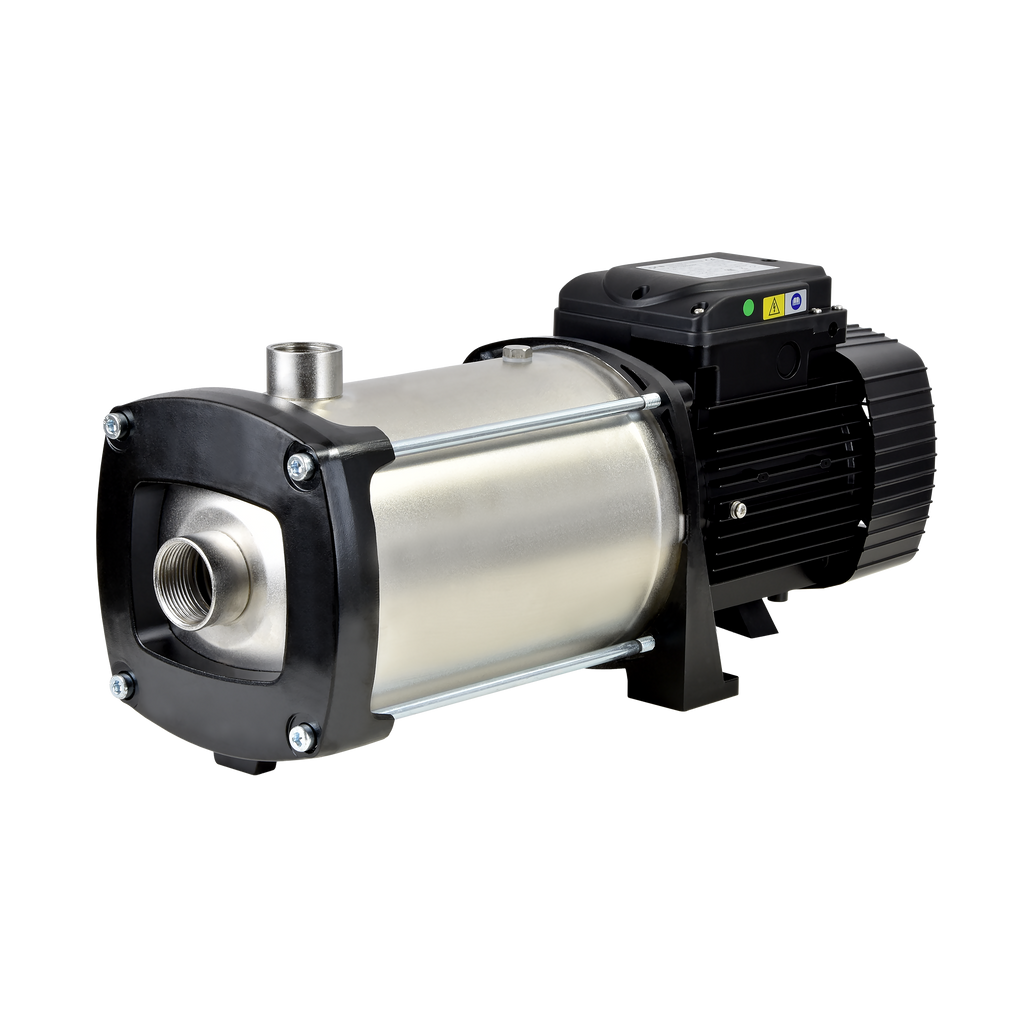

S-MCI 7-5 – industrial hydrophore pump
S-MCI 7-5 brand pump IPRO is a multi-stage, self-suction centrifugal pump designed for pumping technically clean and cold raw water from own intakes and for increasing the pressure in the water intake and pumping system in installations with increased pressure demand. As a line device IPRO, dedicated to professionals and applications requiring increased reliability, it is distinguished by a system with a venturi tube ensuring high suction capacity and a structure entirely made of AISI 304 stainless steel, guaranteeing corrosion resistance even during intensive use.
For whom
- Industrial plants and workshops - multi-stage design allows for high working pressure with stable, continuous operation under heavy load.
- Contracting companies implementing installations with increased pressure demand - high lifting allows to handle extensive multi-point installations.
- Agricultural farms and horticultural enterprises - this model supports extensive irrigation systems requiring high pressure.
- Water system installers - the possibility of cooperation with an expansion tank or a hydrophore machine makes it easier to select a complete set.
Application
The S-MCI 7-5 hydrophore pump is used in raw water intake and pumping systems with increased pressure demand, supplied from own intakes - dug or deep wells. The multi-stage design combined with the Venturi tube allows for suction of water from a depth of up to 6 meters, while maintaining high working pressure. The pump is not a water treatment device - when using it for other purposes, we recommend ensuring appropriate preparation.
In agricultural farms and industrial applications, the pump serves extensive installations requiring high pressure and continuous, stable operation under heavy load. The S-MCI 7-5 230V hydrophore pump works with an expansion tank and hydrophore machines, allowing you to build a complete set tailored to the demanding installation.
Features
The design of the S-MCI 7-5 is based entirely on AISI 304 stainless steel - the body, shaft, rotor, impellers and diffusers as well as the interwall are made of this material, which ensures high corrosion resistance when working with technically clean water. An asynchronous motor in a closed aluminum housing with external ventilation ensures stable operation even under heavy load.
The mechanical stuffing box in the SiC/SiC/EPDM system provides high resistance to abrasive wear, outperforming typical ceramic/graphite solutions, which translates into longer seal life. The motor has built-in thermal protection in the winding, protecting the pump against overheating during long-term continuous operation.
- Pump body: AISI 304 stainless steel
- Shaft and rotor: AISI 304 stainless steel
- Impellers and diffusers: AISI 304 stainless steel
- Suction diffuser: PPO polymer
- Interwall: AISI 304 stainless steel
- Mechanical stuffing box: SiC / SiC / EPDM
- Engine: asynchronous, aluminum housing, external ventilation
- Suction capacity: up to 6 m (venturi tube)
- Thermal protection built into the motor winding
- Insulation class: F
- Degree of protection: IP55
- Max. liquid temperature: 70°C
- Max working pressure: 8 bar
- Connection: 1¼×1"
IPRO – 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certificates.
Frequently asked questions
How does the venturi tube system in the S-MCI 7-5 pump work?
The Venturi tube increases the pump's suction capacity, allowing water to be drawn from a depth of up to 6 meters without the need to prime the suction system before starting. This solution works especially well when the water level in the well varies.
Can S-MCI 7-5 work with a hydrophore automat or an expansion tank?
Yes, the pump works with both an expansion tank and hydrophore machines, which allows you to configure a complete set tailored to the demanding installation.
What is the SiC/SiC material used in the mechanical stuffing box of the S-MCI 7-5 pump?
SiC is silicon carbide (carborundum) - a hard, ceramic sintered substance with high resistance to abrasion, corrosion and temperature. In the SiC/SiC designation, both mating surfaces of the stuffing box are made of this material, which makes them much harder and more mechanically resistant than other combinations made of oxide ceramics or graphite. Thanks to this, the seal better tolerates the presence of small impurities in the pumped water and remains tight for a longer period of operation.
What installations is S-MCI 7-5 best suited for?
S-MCI 7-5 is suitable for raw water intake and pumping systems with increased pressure demand - extensive home installations, farms and industrial applications requiring high head.
What is the difference between S-MCI 7-5 and S-MCI 7-4?
The S-MCI 7-5 achieves higher lifting and higher power than the S-MCI 7-4, with the same maximum capacity. It is suitable where the installation requires higher working pressure.
What is the warranty for the S-MCI 7-5 pump? IPRO?
S-MCI 7-5 brand pump IPRO is covered by a 36-month (3-year) manufacturer's warranty, and warranty and post-warranty service is provided by Dambat. In matters of maintenance or repairs, it is worth contacting directly service department.
