Description
Short description
The IBO SK-13 safety tee is a fitting designed to connect the SK-13 controller to a pressure-boosting system with a surface pump. The side branch accepts the controller's 1/4" male connection, while the internal and external threads at the ends of the body allow the tee to be fitted directly into the system pipe.
Who it's for
- Installers and plumbers - we supply a fitting designed for the SK-13 controller, simplifying the installation of dry-run protection.
- Homeowners with their own water source - we enable pump dry-run protection to be installed in an existing pressure tank system.
- Users of pressure tank systems - the tee lets you add the SK-13 controller without modifying the system.
- Service companies - we make it easier to replace or upgrade the protection during inspections of systems with a surface pump.
Applications
- Installing the SK-13 controller in pressure-boosting systems with a surface pump and pressure tank.
- Upgrading existing raw water extraction systems with dry-run protection.
- Assembling accessories for domestic and garden water systems upstream of water treatment.
The SK-13 safety tee is included in the SK-13 variant with accessories and is also available as a separate product.
Features, description and technical data

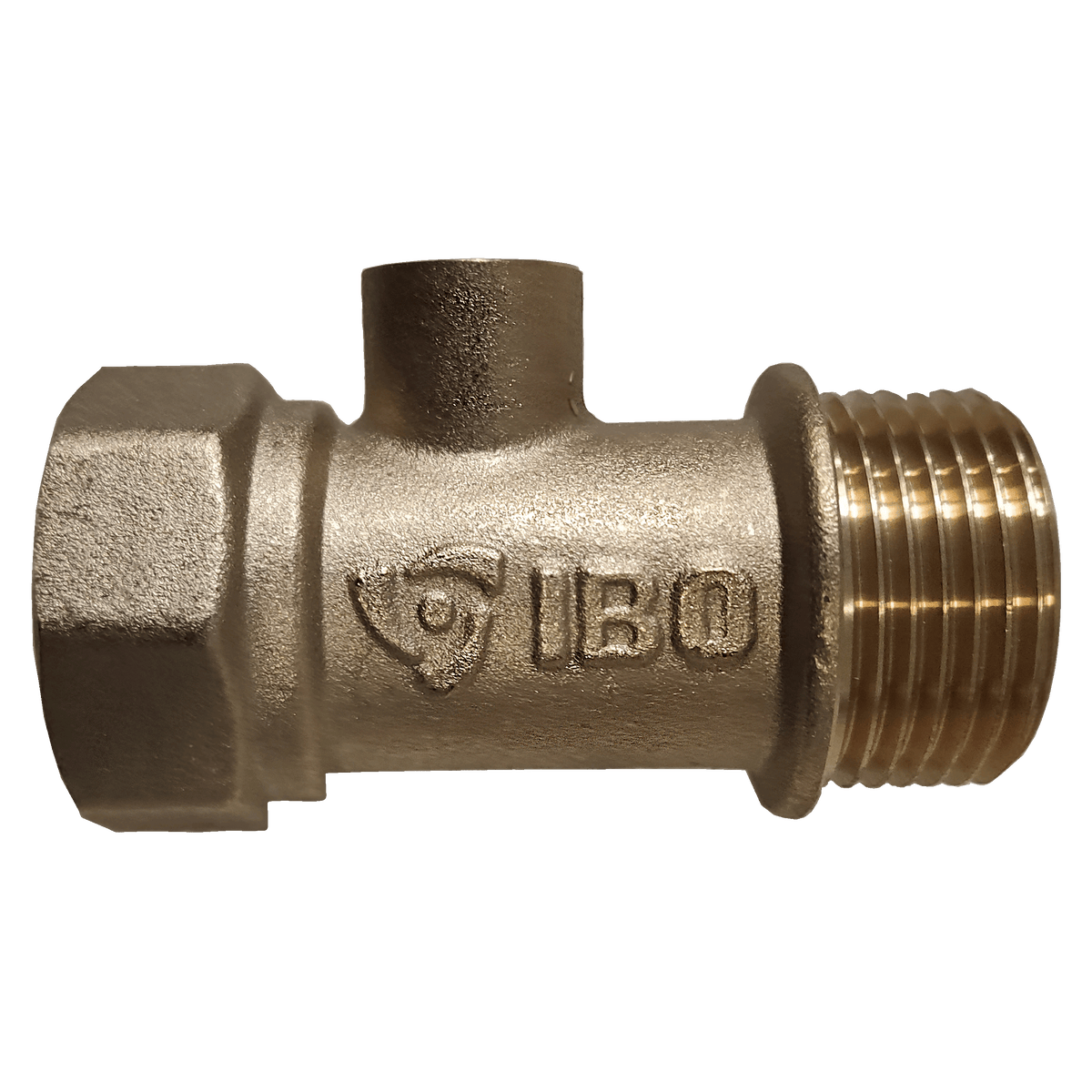

The SK-13 safety tee is an IBO threaded fitting with the brand logo on its body. It has a straight-through body with an internal thread and a wrench hex on one side, an external thread on the other, and a side branch into which the SK-13 controller with a 1/4" male thread is screwed. This allows the controller to measure pressure directly in the system.
Compatible with the SK-13 controller
The HYDRO-BLOCK SK 13 pressure controller protects the pump from damage caused by running dry. It automatically stops the pump when the system pressure drops below the shut-off level of 0.7 bar. The pump starts for the first time after the RESET button is pressed, and once the pressure exceeds 1.1 bar, the device operates automatically.
- The controller is intended exclusively for surface pumps and should be used in water systems equipped with a pressure tank.
- Pumps with single-phase motors are connected directly, while pumps with three-phase motors are connected via a contactor.
- The HYDRO-BLOCK SK 13 pressure controller does not replace a pressure switch.
The tee’s through-thread diameters, body material, dimensions, and maximum operating pressure are not provided in the source data. Content prepared based on general information. Contact us for details.
The tee and SK-13 controller operate in the raw water system, before the treatment process. They are not water treatment devices and do not confirm that the water is safe to drink.
Warranty
IBO – 24-month (2-year) manufacturer’s warranty.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certifications.
Frequently asked questions (FAQ) – what is the tee for the SK-13 protection device used for?
What is the tee for the SK-13 protection device used for?
The tee is used to connect the SK-13 controller to a pressure tank system with a surface pump. The controller screws into the side branch, which is sized for its 1/4" male BSP connection.
Is the tee included with the SK-13 controller?
The tee is included with the SK-13 version with accessories. The SK-13 version with a cable does not include it, so we also offer the tee as a separate product.
Where can I buy a tee for the SK-13 protection device made by Dambat?
As a manufacturer, we do not sell directly to customers. The tee for the SK-13 protection device is available from our sales partners, plumbing wholesalers, and authorized online distributors.
How do I choose a tee for the SK-13 protection device for my installation?
Before purchasing, check that the tee’s through-threads match the connection diameters in your installation. W If you have any questions, our technical team can help you choose accessories for your specific pressure tank system.
Does the SK-13 controller replace the pressure switch?
No. The SK-13 controller protects the pump from running dry and switches it off when the pressure drops below 0.7 bar, but it does not replace the pressure switch that controls pump operation in a pressure tank system.
What warranty does the tee for the SK-13 protection device have?
IBO – 24-month (2-year) manufacturer’s warranty. Dambat provides warranty and post-warranty service.
