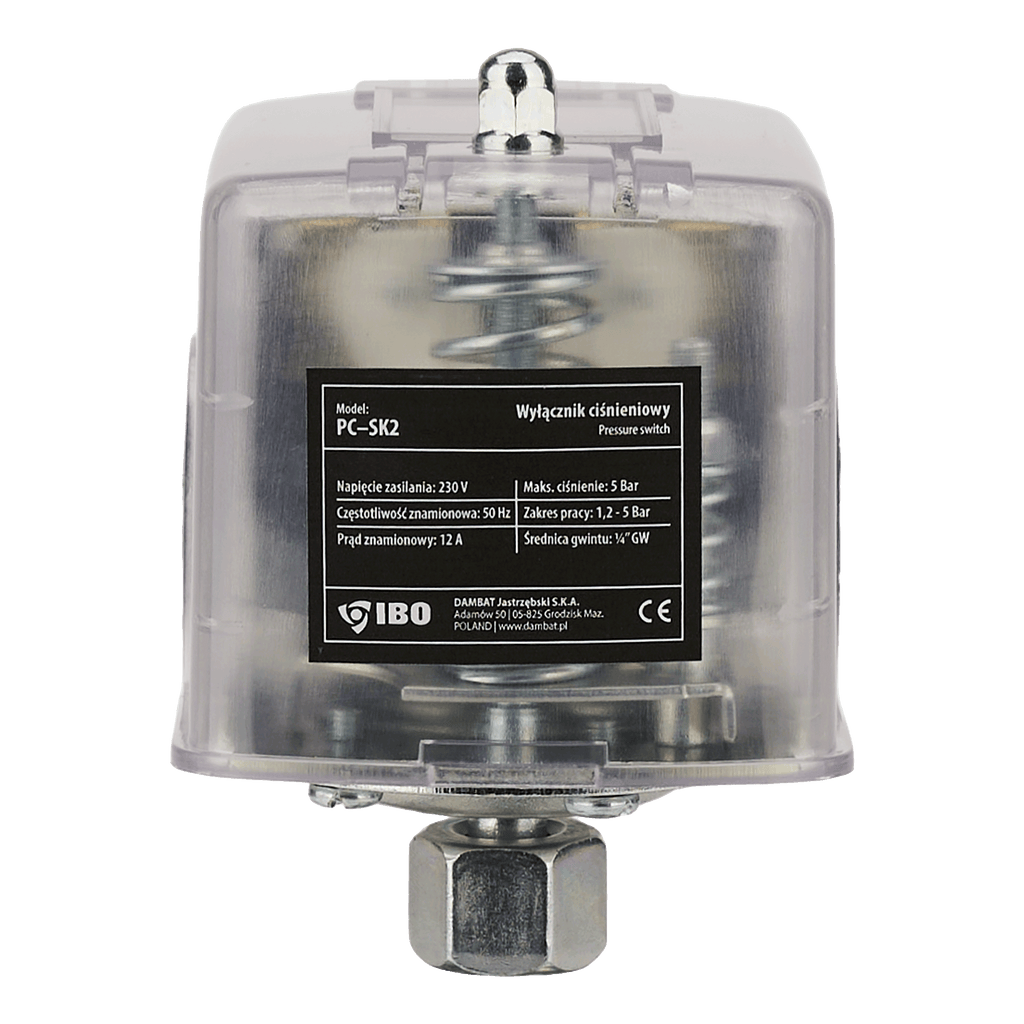

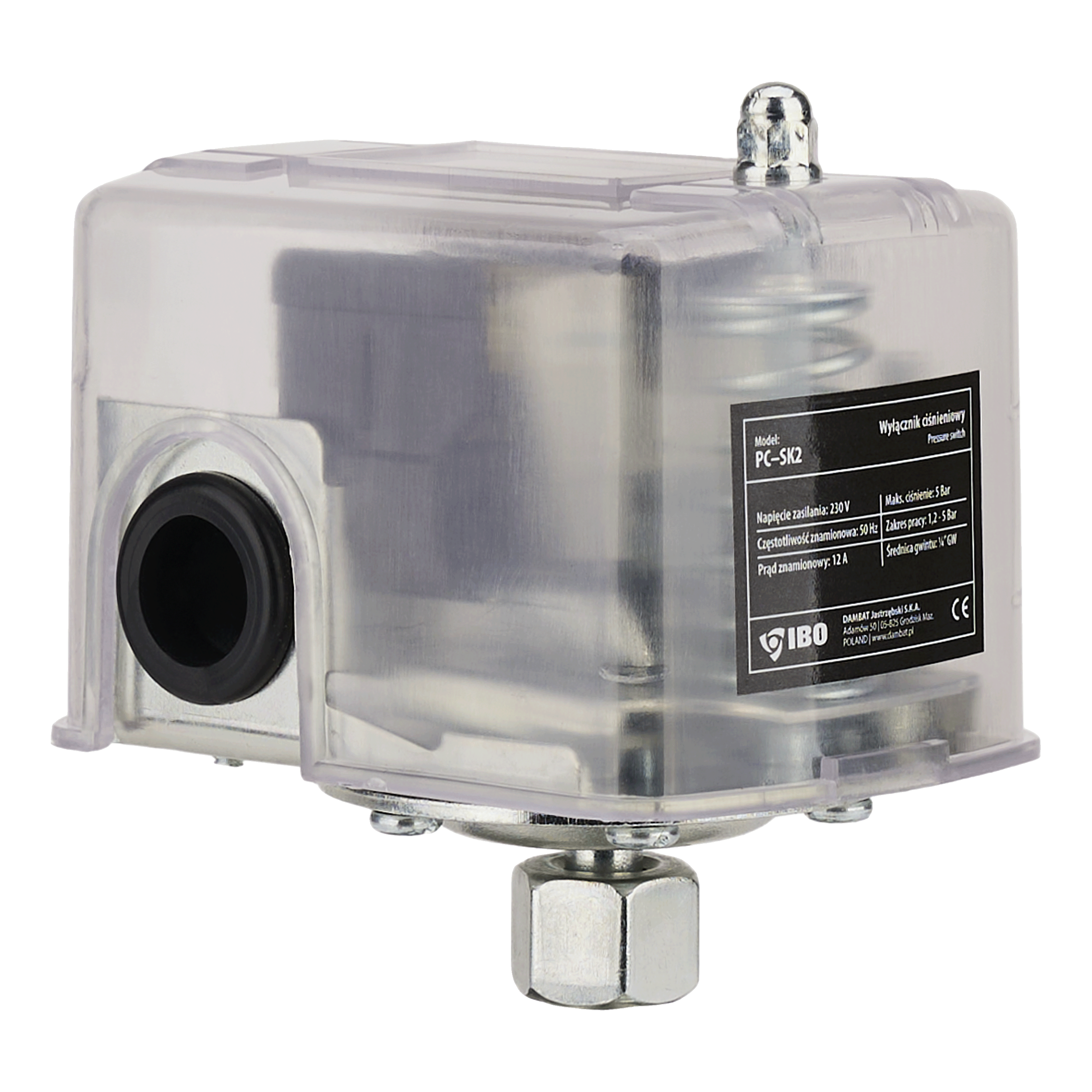

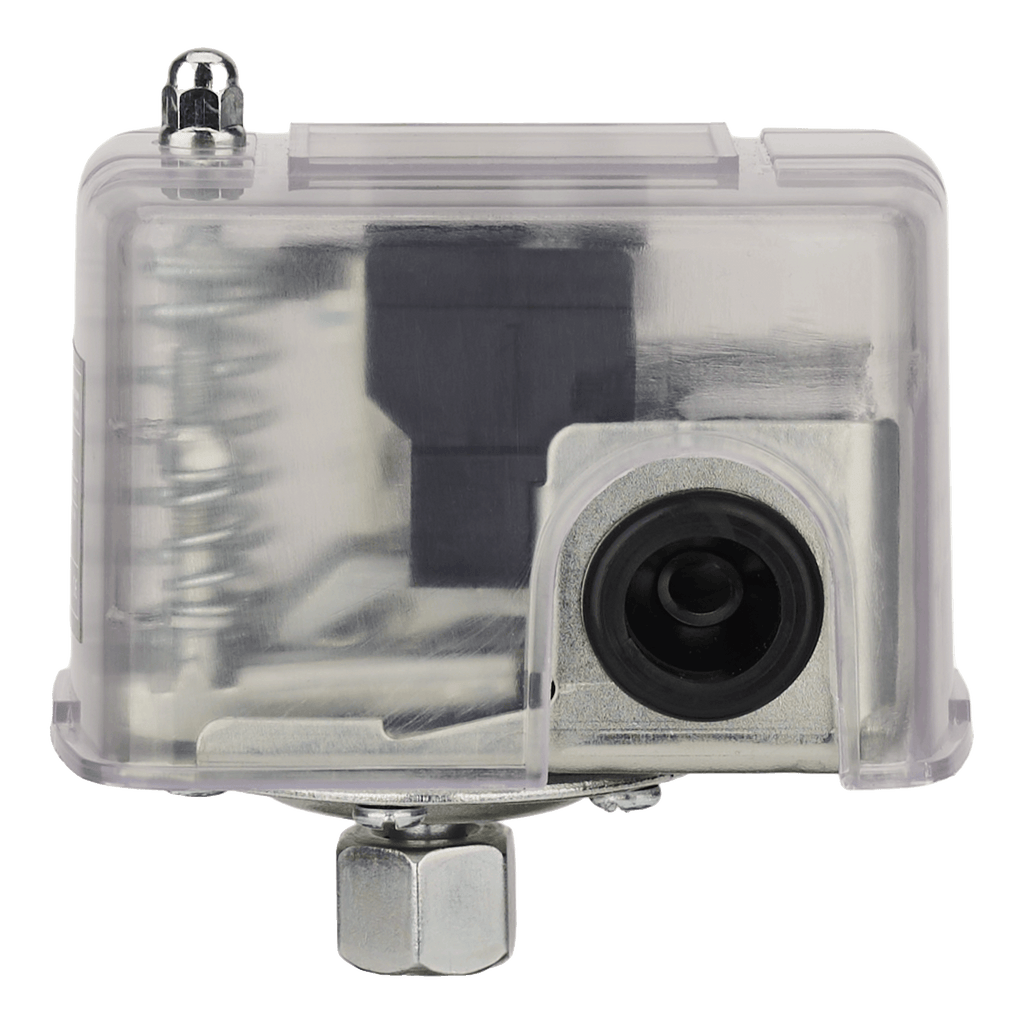

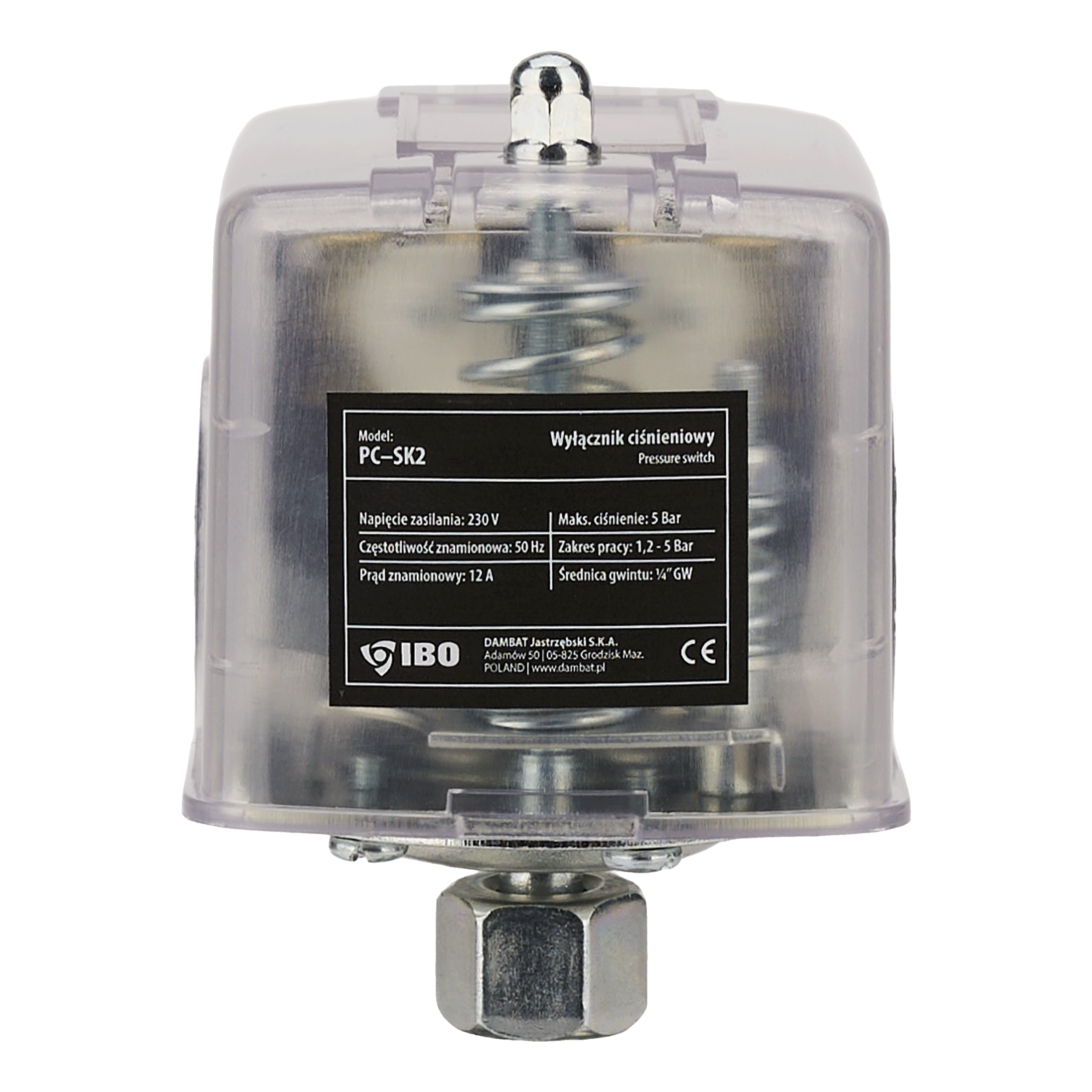

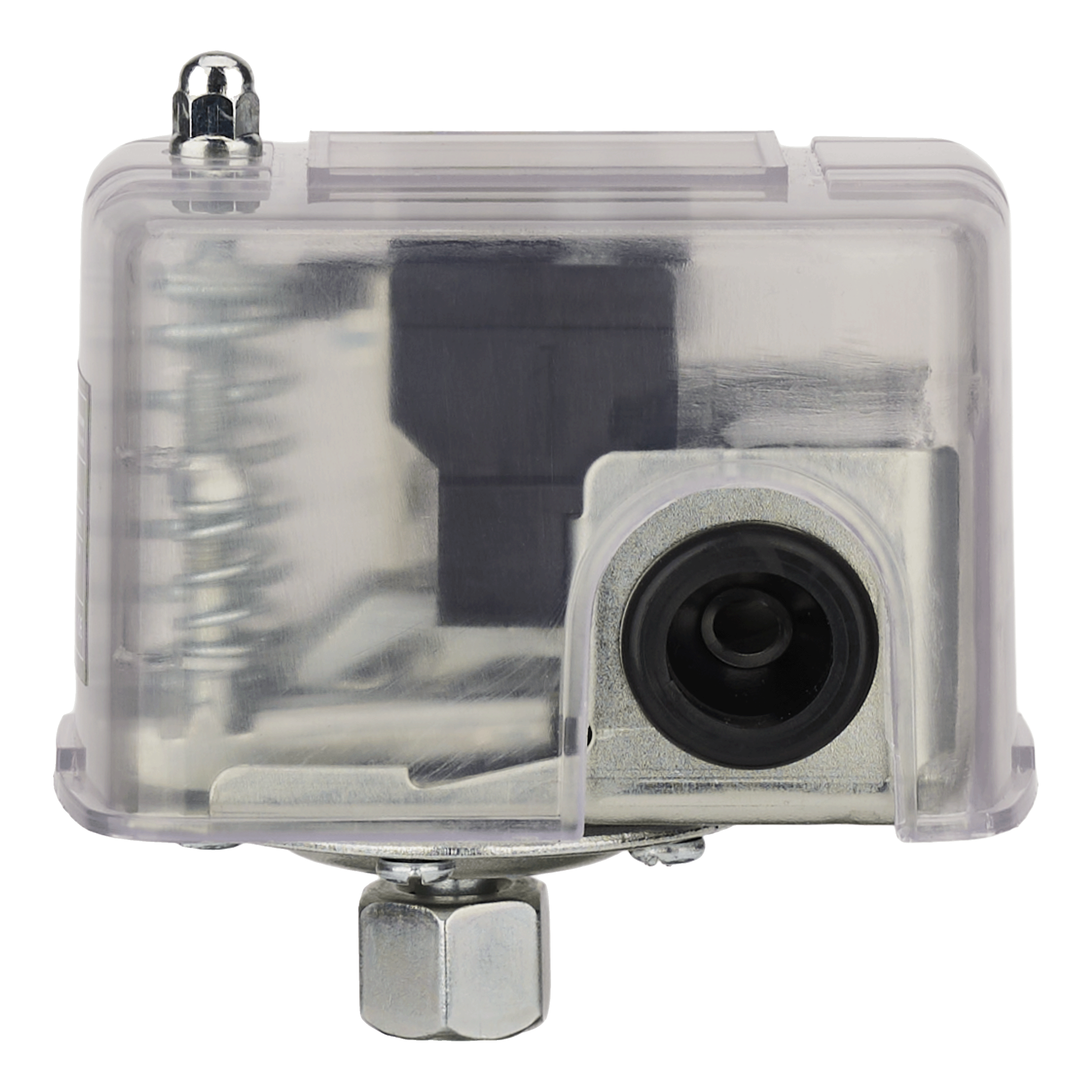

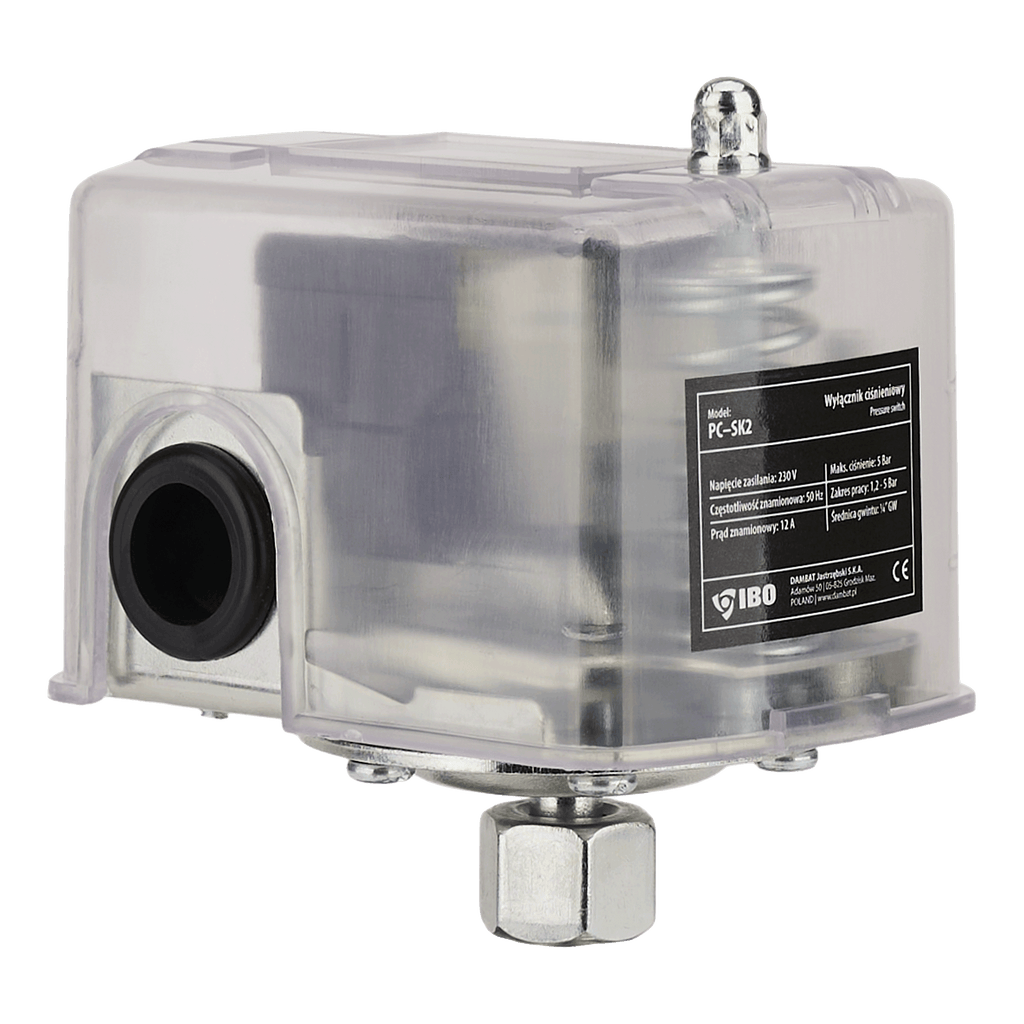

PC-SK2—transparent pressure switch with male thread
The IBO PC-SK2 is a mechanical pressure switch for controlling the operation of a single-phase pump. It switches the pump on when the installation pressure drops to the set value and switches it off when the upper threshold is reached. The operating thresholds are set by the user with two screws, while the ¼" connection, available with both an internal and external thread, allows the device to be connected to the installation in two ways.
Who is it for?
- Installers and plumbers—the ¼" thread, available in both internal and external versions, provides flexibility when connecting the switch to an existing pipeline.
- Homeowners with their own water source—the switch maintains pressure within the specified range, automating pump operation.
- Users of pressure-booster sets—the device controls a pump connected to a pressure tank.
- Allotment gardeners and farms—durable solution for the pump’s daily operation during water usage.
Applications
The PC-SK2 is suitable for domestic and garden water installations with a single-phase pump operating with a pressure tank. The switch maintains water pressure between the set lower and upper thresholds and controls the pump according to water demand. It is compatible with surface and submersible pumps.
The device responds to the pressure in the pipeline to which it is connected. In a domestic pressure-booster water system, the PC-SK2 230 V pressure switch keeps the pump operating within the pressure range set to suit the installation’s requirements.
PC-SK2 Pressure Switch Features
The PC-SK2 operates with two settings—the pump cut-in pressure and cut-out pressure. They are factory-set to 1.4 and 2.8 bar, and both values can be adjusted using two screws: screw A controls the cut-in threshold, while screw B controls the cut-out threshold. The adjustment range is from 1.2 to 5 bar, with a minimum cut-in pressure of 1.2 bar. The difference between the thresholds should be at least 1 bar to prevent the pump from cycling too frequently.

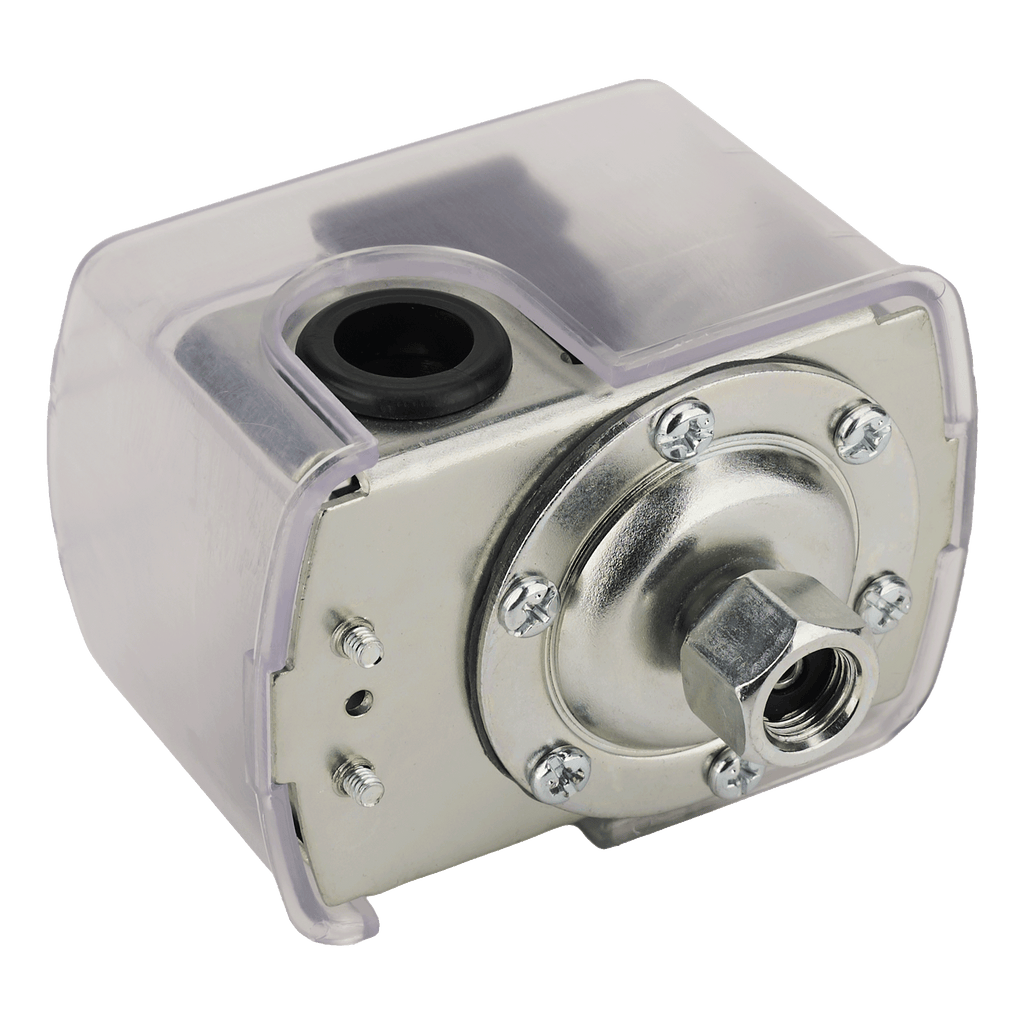

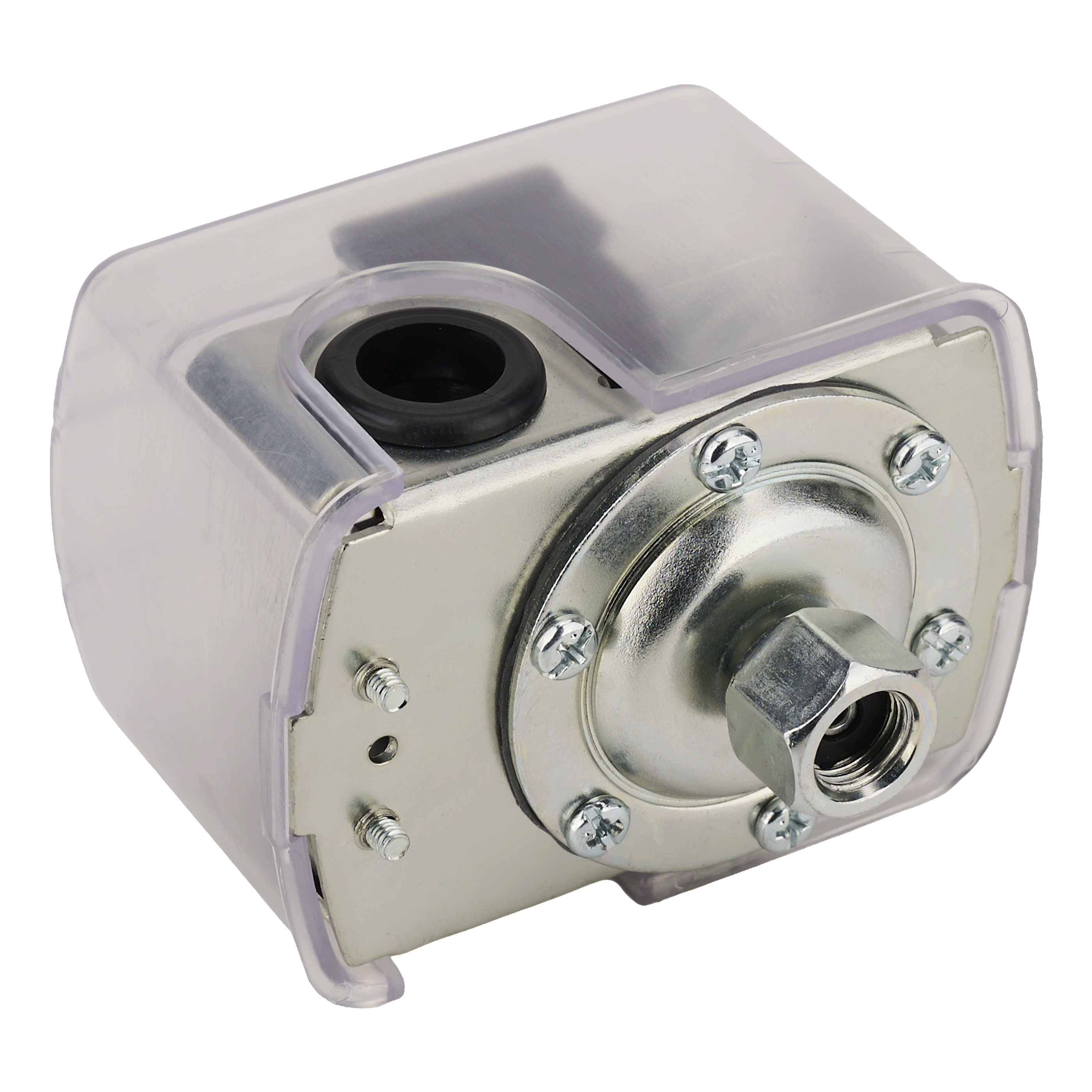

A feature that sets the PC-SK2 apart is its ¼" connection, designed with both an internal and external thread. This allows the switch to be connected directly to various installation components without additional adapters. The device supports single-phase pumps with a current draw of up to 12 A, including more powerful pumps than those used with basic pressure switches. The durable plastic housing protects the mechanism under typical water installation conditions.
- Brand: IBO
- Type: mechanical pressure switch for single-phase pumps
- Power supply: 230 V, 50 Hz
- Pressure range: 1.2–5 bar
- Maximum current: 12 A
- Minimum threshold difference: 1 bar
- Adjustment: two adjustment screws
- Connection: ¼" female thread
IBO – 24-month (2-year) manufacturer's warranty.
Dambat – a trusted manufacturer of pumps and water management equipment with quality certifications.
Frequently asked questions (FAQ) – PC-SK2 pressure switch
What is the PC-SK2 pressure switch used for?
The PC-SK2 is a mechanical pressure switch that automatically switches the pump on and off depending on the water pressure in the system. It maintains the pressure between the set lower and upper thresholds, allowing the pump to operate without manual control.
What distinguishes the connection on the PC-SK2?
The PC-SK2 has a ¼" connection with both an internal and an external thread. This allows the switch to be connected directly to various installation components without using additional fittings or adapters. The connection should be watertight to prevent device failure.
How do I set the operating pressure on the PC-SK2?
The thresholds are adjusted using two screws. Screw A sets the switch-on pressure, while screw B sets the switch-off pressure. Turning clockwise increases the pressure, while turning counterclockwise decreases it. The difference between the thresholds should not be less than 1 bar.
Which pumps is the PC-SK2 compatible with?
The switch supports single-phase pumps drawing up to 12 A on a 230 V power supply. It works with surface and submersible pumps in pressurized water systems equipped with a tank.
Does the PC-SK2 require a pressure tank?
Yes. The PC-SK2 is designed for use in pressurized water systems with a tank. The tank stores water under pressure and reduces how often the pump switches on between the lower and upper pressure thresholds.
Where can I buy the PC-SK2 pressure switch?
As a manufacturer, we do not sell directly. The IBO PC-SK2 pressure switch can be purchased from our trade partners, plumbing wholesalers, and authorized online distributors. You can find the full range of pressure switches and controllers in the controllers category.
What is the warranty on the PC-SK2 pressure switch?
IBO – 24-month (2-year) manufacturer's warranty.
