Description

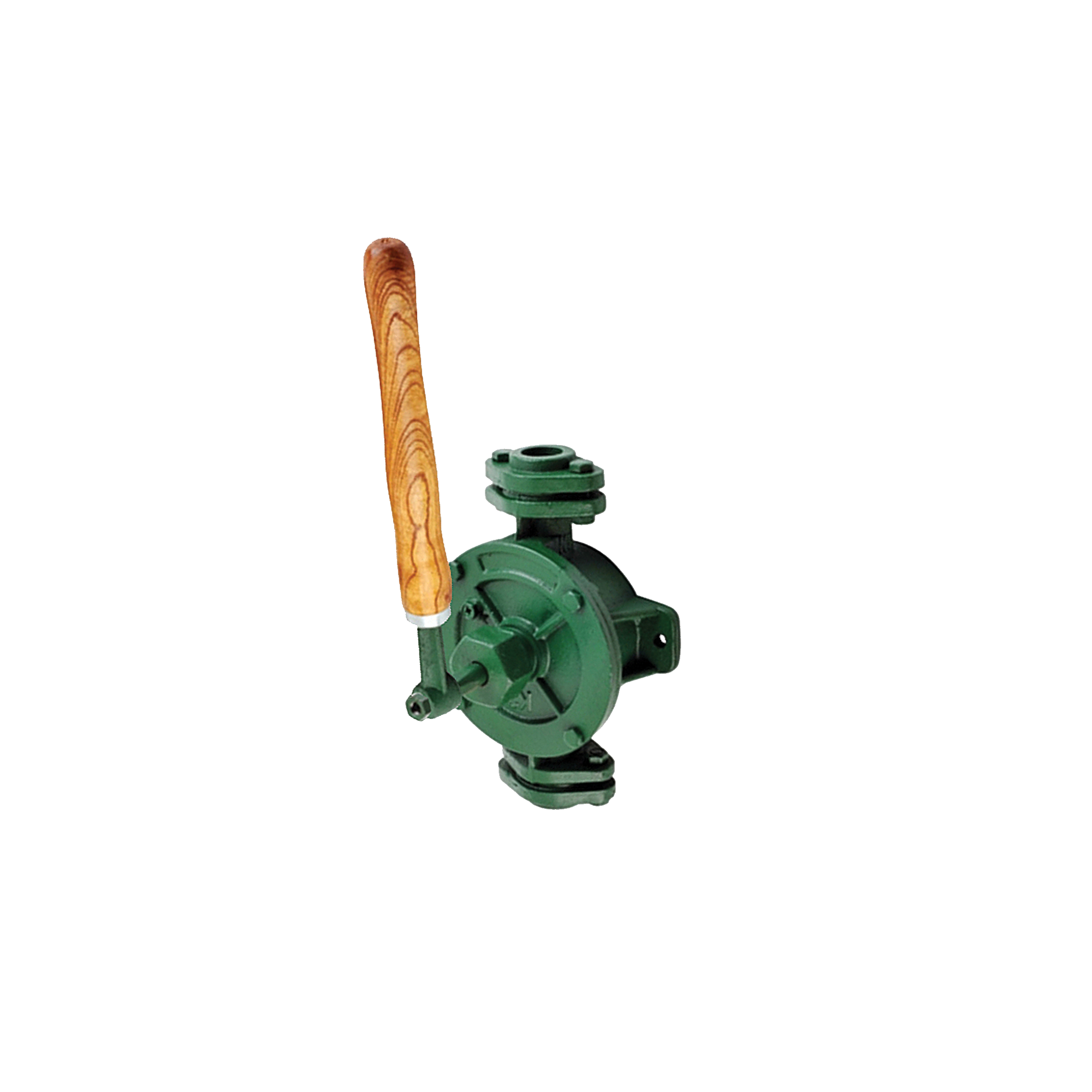

K2 it's a semi-rotary, cast iron wing hand pump designed for pumping clean liquids - water, gasoline and diesel - without the need for electricity. Capacity 22.5 l/min, Suction capacity up to 7 m and lifting up to 25 m. Perfect for plots, gardens and recreational houses.
Who is the K2 hand pump for?
- Owners of plots and gardens – independent water source without electrical connection, ready for use at any time.
- Users of recreational and summer houses – reliable hand pump operating without electricity, proven in places with limited infrastructure.
- Farmers and users of areas without electricity – pumping water, gasoline or diesel oil where access to electricity is impossible or unreliable.
- Owners of electric pumps without self-priming – the K2 pump can act as a primary (priming) pump for electric pumps without a self-priming function.
- Users looking for an emergency solution – cast iron, simple-to-construct hand pump as an independent protection in the event of a power outage.
Application of the K2 hand wing pump
- Pumping water on plots and gardens – quick access to water without the need to install an electric hydrophore pump.
- Pumping fuel (gasoline, diesel) – safe and controlled transfer of clean liquid fuels.
- Primary pump for electric pumps – flooding the suction system of electric pumps that do not have a self-priming function.
- Working in places without electricity – plots, gardens, recreational houses, agricultural areas without energy infrastructure.
- Emergency water supply – independent and reliable source of liquid flow in the event of a power outage or electrical installation failure.
The K2 hand pump is a proven solution for pumping clean liquids wherever access to electricity is limited or impossible.
Features, construction and technical data – K2 wing hand pump
K2 belongs to a series of semi-rotary wing-type hand pumps made of cast iron, which ensures the solidity and durability of the body during long-term use. The principle of operation is based on the semi-rotary movement of the lever, which drives the internal wing mechanism pumping the liquid. The lack of an electric motor means full independence from power sources.
The pump is equipped with drain plug, which allows the body to be emptied of water in case of risk of freezing - which is especially important when storing the device in winter. The body is mounted using flanges, which allows for easy disassembly and reassembly without the need to use specialized tools. Maximum Suction capacity is 7 m, which makes it suitable for working on wells and surface reservoirs.
Technical data
| Parameter | Value |
|---|---|
| Model | K2 |
| Pump type | Semi-rotary, wing, manual |
| Body material | Cast iron |
| Connection size | 1" |
| Performance | 22.5 l/min |
| Lifting (max.) | 25 m |
| Suction capacity (max.) | 7 m |
| Weight | 8 kg |
| Power supply | None (hand pump) |
| Drain plug | Yes |
| Body assembly | For flanges (easy disassembly) |
| Pumped media | Clean water, gasoline, diesel oil |
| Warranty | 24 months |
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certificates.
Frequently asked questions (FAQ) – K2 wing hand pump
What is the K2 hand pump used for?
Pump K2 is intended for pumping clean fluids – water, petrol and diesel – without the need for electricity. It works for plots, gardens and recreational houses and as a primary pump for electric pumps without self-priming function.
Does the K2 pump require electricity?
No – K2 this hand pump, operating solely with the power of human muscles. It does not require any electrical power, which makes it an ideal solution in places without electricity or as emergency protection in the event of a power outage.
From what depth can the K2 pump suck water?
Maximum Suction capacity pumps K2 is 7 m. This means that the pump can draw liquid from sources where the water or fuel table is no deeper than 7 m below the pump inlet.
How to protect the K2 pump against freezing?
Pump K2 is equipped with drain plug, which allows the body to be completely emptied of water after pumping. Before frost sets in, unscrew the cap and drain any remaining water to prevent freezing damage to the cast iron body.
How to assemble and disassemble the K2 pump?
Pump body K2 is mounted using orifice, which enables quick and easy assembly and disassembly without the need to use specialized tools. This solution is particularly convenient when the pump is used seasonally or when it is necessary to move it to another place.
Where can you buy the K2 wing hand pump?
Pump K2 can be purchased online authorized distributors and wholesalers cooperating with the brand IBO.
What is the warranty on the K2 hand pump?
Hand pump K2 is covered 24-month warranty. If you have any questions about service or detailed warranty terms, please contact Dambat directly.
