Description

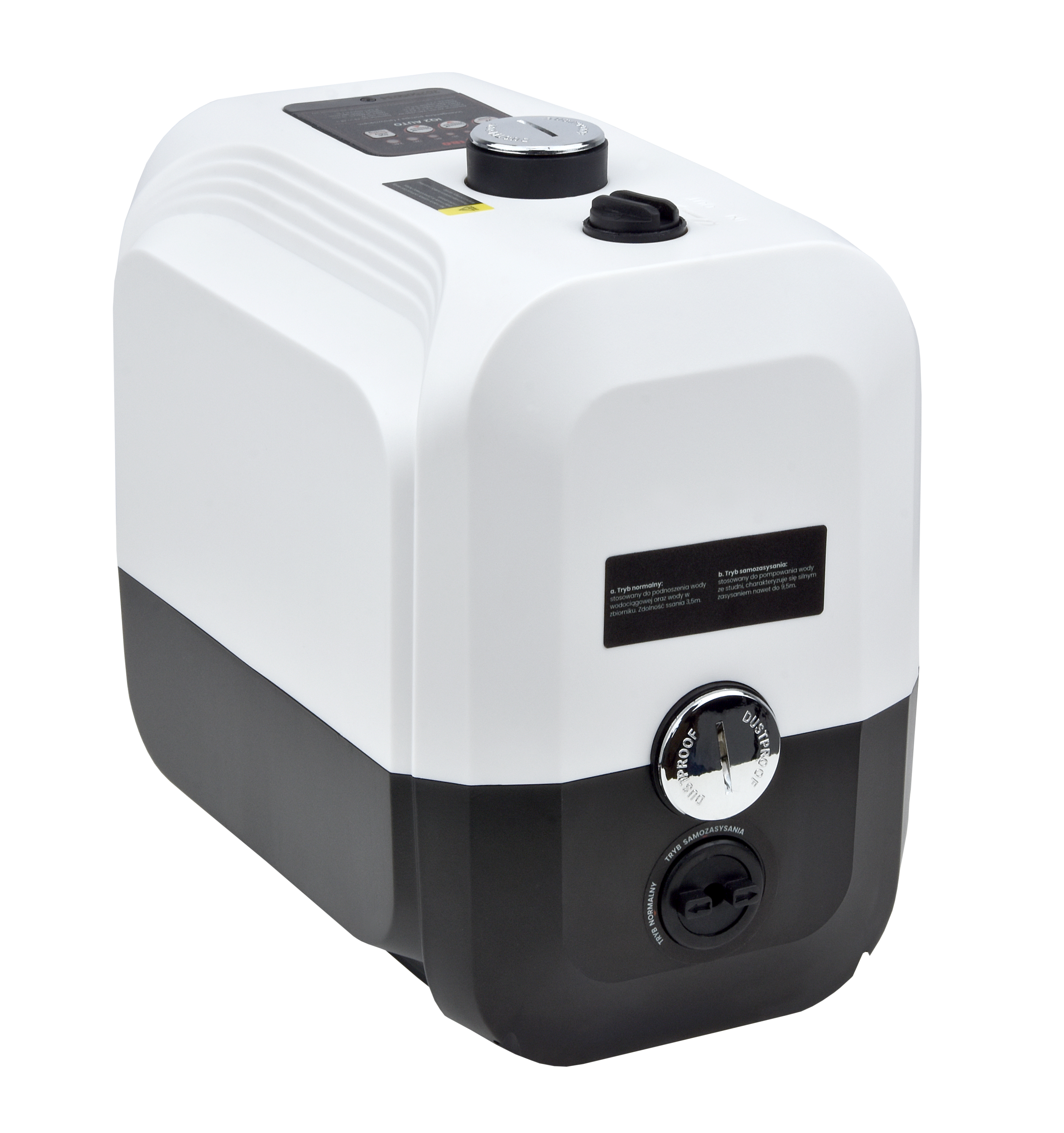

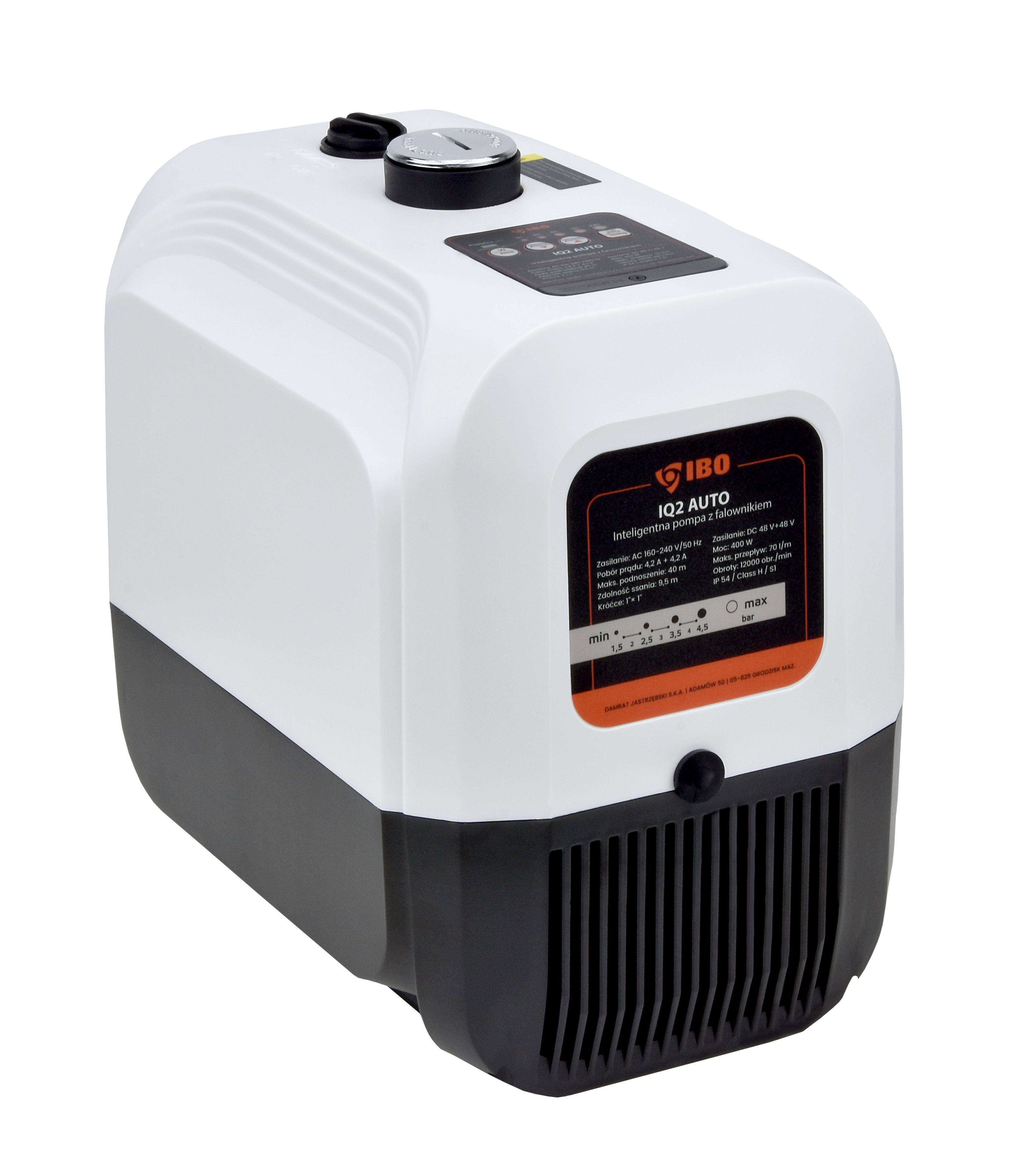

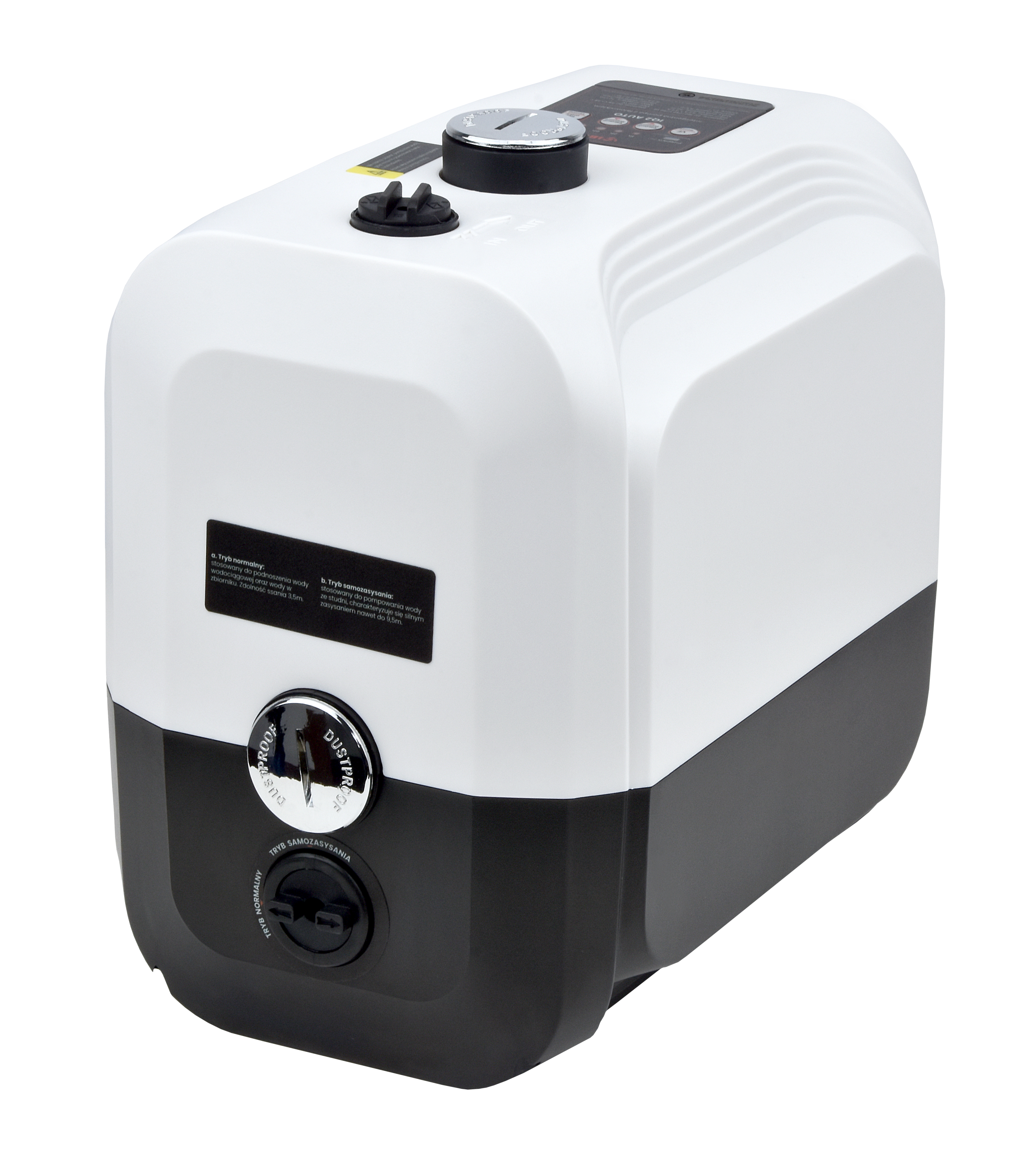

IQ 2 AUTO - compact pressure boosting pump
IQ 2 AUTO is a compact, intelligent pump with a frequency converter, designed to supply single-family houses and larger properties with clean water from their own intakes and to increase the pressure from the water supply network. It maintains constant pressure at all draw-off points, operates exceptionally quietly (45 dB) and consumes less energy than a classic pressure booster set. Despite its compact dimensions, it achieves a capacity of up to 70 l/min and a lifting height of up to 40 m.
For whom
- Owners of single-family houses - constant water pressure throughout the installation and very quiet operation, allowing installation close to the living area.
- Small service facilities and farms – energy-saving pressure maintenance with variable water demand.
- Users of old water supply networks - effective raising of too low pressure from the water supply, even to high-altitude areas.
- Gardeners and allotment gardeners – Power supply watering with water from a well or reservoir.
- Installers – automatic adaptation to installation and simple configuration, clear parameters and manufacturer's support.
Application
The IQ 2 AUTO pump works as the heart of home and backyard water installations: it draws raw water from your own well or raises too low pressure from the water supply network, maintaining an even flow at every point of consumption. Available suction modes - from the water supply network and from a well - allow you to adjust the operation to a specific water source.
The device will also handle garden irrigation and watering with rainwater collected from the tank, as well as water supply for smaller industrial facilities. The IQ 2 AUTO 230 V inverter pump works with typical installations found in Polish single-family houses.
Features of IQ 2 AUTO
IQ 2 AUTO provides constant, strong water pressure throughout the house - regardless of whether you turn on one tap or use the shower, washing machine and kitchen at the same time. The pump itself adjusts its work rate to the current consumption, so the water pressure does not change when someone turns on the next tap.
The heart of the device are two modern, energy-saving engines, which together give the power of a large pump in a small and light housing (only 5 kg). In practice, this means high efficiency and high lifting capacity from equipment that will fit even in a tight boiler room or manhole. Thanks to this solution, the pump consumes less electricity and operates very quietly - at 45 dB, which is quieter than an ordinary conversation - so it can be placed close to the living area.
Operation is simple: just set the operating pressure in the range of 1.5-4.5 bar, and the pump will maintain it by itself. You can also select a suction mode that matches the water source (water network or well) and enable periodic operation in cycles of 1, 2, 6, 12 or 24 hours. Safety is ensured by a set of built-in protections: protection against dry running (without additional sensors in the well), against voltage surges, overload, water hammer and installation leaks.
- Max Lift: 40 m
- Max capacity: 70 l/min
- Suction capacity: 9.5 m
- Max. system pressure: 10 bar
- Pressure setting range: 1.5–4.5 bar
- Power: 400W (0.4kW)
- Engine speed: up to 12000 rpm
- Power supply: AC 160-240V
- Drive: 2 DC motors with permanent magnets
- Noise Level: 45 dB
- Connections: 1" × 1"
- Degree of protection: IP54
- Insulation class: H
- Working mode: continuous
IBO – 24 months (2 years) manufacturer's warranty.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certificates.
Frequently asked questions (FAQ) – what is the IQ 2 AUTO pump used for?
What is the IQ 2 AUTO pump used for?
IQ 2 AUTO supplies houses, hotels and smaller facilities with raw water from its own well and relieves too low pressure from the water supply network. Thanks to the built-in inverter, it maintains constant pressure on all intake valves at an operating pressure of up to 10 bar.
How does a pump with an inverter differ from a classic hydrophore set?
Instead of cyclical switching on and off, the pump smoothly regulates the engine speed, adapting it to the current water consumption. The result is constant pressure, gentle starts, quiet operation at the level of 45 dB and lower energy consumption than in a system without an inverter.
Is IQ 2 AUTO suitable for watering the garden with rainwater from the tank?
Yes, the pump can draw water from a tank or well and power the irrigation installation - just select the well suction mode. When drawing from an open source, a non-return valve should be installed on the suction pipe to prevent automatic emptying of the pipeline - appropriate elements can be found in accessories for surface and hydrophore pumps.
How to set the pump working pressure?
The operating pressure can be set from 1.5 to 4.5 bar, and the pump will then maintain it automatically thanks to adaptation to the installation. A periodic operation function in cycles of 1, 2, 6, 12 or 24 hours is also available.
Where can you buy the IQ 2 AUTO pump?
Dambat, as a manufacturer, does not conduct direct sales. The IQ 2 AUTO pump is available from our trading partners, installation wholesalers and authorized online distributors.
What warranty is covered by the IQ 2 AUTO pump?
IBO – 24 months (2 years) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
- Max Lift: 40.0 m
- Suction capacity: m
- Max capacity: 70.0 l/min
- Power: 0.4 kW
- Power supply:
- Current: 4.2 A
- Speed engine: 0-12000 rpm
- Insulation class: H
- Degree of protection: IP54
- Connection: 1 inches
- Max. liquid temperature: 100°C
- Dimensions length/height/width: cm
- Weight: 4.8 kg
