Description

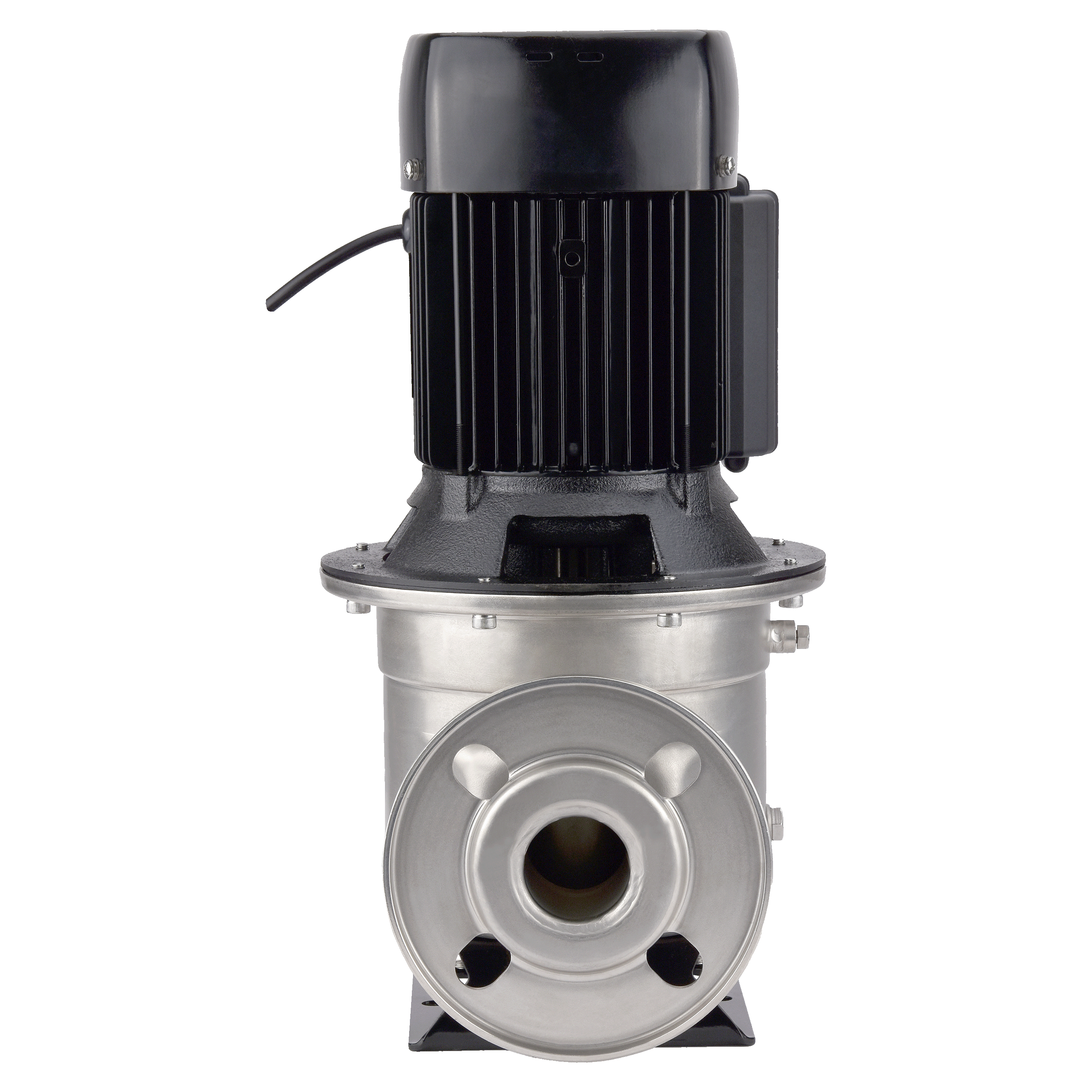

IBO IGDL pump - in-line circulation pump
The IBO IGDL pump is an efficient, multi-stage pump for cold and hot water, designed to supply and increase pressure in water, heating and industrial installations, wherever reliable circulation of clean water in a wide temperature range is required.
For whom
- Installers and contractors – a proven solution for the construction and modernization of water, heating and HVAC installations in residential and commercial buildings, with a guarantee of stable operating parameters.
- Managers of multi-family buildings and commercial facilities – effectively increasing water pressure and ensuring user comfort in tall buildings and extensive hot and cold water installations.
- Industry and production plants – reliable circulation of media in process systems, cooling circuits and water supply to boilers, using a pump with high energy efficiency.
- Farmers and farms – possibility of use in irrigation installations, water supply systems and systems supporting the operation of technological devices.
- Installation designers – universal pump for projects requiring reliable operation with clean water, also at elevated temperatures, with clearly defined inlet pressure requirements.
Application
- Water supply and pressure boosting systems in high-rise buildings, Power supply water supply installations and utility water distribution systems.
- HVAC and heating installations, including cold and hot water circulation, boiler circuits and cooperation with heat exchangers and ventilation units.
- Industrial circulation systems, process water circulation systems and systems supporting the operation of production equipment.
- Fire protection systems, backup and auxiliary water supply systems, as well as installations in public buildings.
- Agricultural irrigation, watering systems and transport of clean water from tanks, reservoirs and storage systems.
The IBO IGDL pump will work wherever a reliable clean water pump is required for domestic, industrial, heating and irrigation applications.
Features, description and technical data
The IBO IGDL pump is a modern, multi-stage pump intended for pumping clean water, designed to work in installations requiring both high efficiency and resistance to elevated medium temperatures. The device can operate with cold and hot water, provided that the medium is free of fibers and solid particles and the hot water is soft water, i.e. with a low content of soluble calcium and magnesium compounds.
Common uses include Power supply and increasing water pressure in high-rise buildings, working as an element of pipeline support systems, HVAC and heating systems, as well as circulating hot and cold water in domestic and industrial installations. The pump can also be used to supply water to boilers and in industrial circulation systems where stable flow and pressure parameters are required.
Construction and materials
The design of the IBO IGDL pump is based on durable materials ensuring long-term and failure-free operation. The pump body, diffuser, interwall and rear cover are made of AISI 304 stainless steel, which guarantees high corrosion resistance and enables safe operation with clean drinking water. The motor housing is made of aluminum, thanks to which the device combines good heat dissipation with relatively low weight.
- Motor housing: aluminum.
- Rear cover, interwall, diffuser, pump body: AISI 304 stainless steel.
- Pump body support: steel.
- Mechanical gland: graphite, silicon carbide, FKM seal (resistant to higher temperatures and many media).
Thanks to the use of a high-class mechanical seal with graphite and silicon carbide elements and the FKM seal, the pump is properly protected against leaks and adapted to work with increased medium temperature while maintaining high tightness.
Engine and electrical parameters
The IBO IGDL pump is equipped with a high-efficiency electric motor in the IE3 efficiency class, which translates into lower energy consumption while maintaining the required operating parameters. The motor is characterized by protection class IP55, which provides effective protection against the ingress of dust and water jets, and insulation class F, allowing operation at elevated winding temperatures. The engine operating mode is intended for continuous use in typical water and heating installations (detailed values of power, voltage and frequency should be read from the catalog card or nameplate of a specific model - content based on general data).
- High efficiency motor: efficiency class IE3.
- Degree of protection: IP55.
- Insulation class: F
- Operating mode: continuous
Working conditions and operational parameters
The IBO IGDL pump is designed to work with clean water, free from fibers, sand or other solid particles, which is crucial for the protection of hydraulic components and seals. When working with hot water, soft water is required, which reduces the risk of scaling deposits and extends the life of the pump and installation.
- Medium: pure water, without fibers and solid particles.
- Hot water: soft water required (low content of soluble calcium and magnesium compounds).
To ensure trouble-free operation and avoid cavitation, it is necessary to maintain a minimum inlet pressure on the suction side depending on the medium temperature.
- For medium temperatures up to 75°C: the minimum inlet pressure on the suction side is 0.4 bar at a water column height of 4 m.
- For a medium temperature of 90°C: the minimum inlet pressure on the suction side is 0.7 bar at a water column height of 7 m.
The selection of the appropriate inflow pressure and the height of the pump installation relative to the water surface should be verified each time at the installation design stage, taking into account the pressure losses in the installation and the specificity of the power source.
Installation and operation
The IBO IGDL pump should be installed in a way that ensures easy service access, stable foundation and proper venting of the system. Before starting the installation, make sure that the medium meets the manufacturer's requirements (clean water without solid impurities, appropriate hardness at higher temperatures) and that the required minimum inlet pressure values on the suction side are maintained. It is recommended to use additional elements, such as shut-off valves, strainers and safety fittings, selected by the designer or installer based on the requirements of a specific installation - content developed on the basis of general data.
When using the IBO IGDL pump for a long time, it is recommended to periodically inspect the installation, check its tightness, check the condition of the seals and check the electrical parameters of the motor. Regular maintenance in accordance with the manufacturer's instructions allows you to maintain high hydraulic and electrical efficiency of the device for many years.
The IBO IGDL pump is part of the IBO brand offer, manufactured by Dambat - a trusted manufacturer of pumps and hydrotechnical equipment with many years of experience and quality certificates.
FAQ
You can buy the IBO IGDL pump in authorized stores and wholesalers cooperating with the IBO brand and directly from distributors offering Dambat products in stationary and online sales - availability details depend on the offer of a specific seller (information based on general data). Most models of IBO pumps, including IBO IGDL, are available for online sale in specialized stores selling pumps and hydraulic fittings, as well as on selected e-commerce platforms - the exact availability should be verified with the seller (information based on general data). The IBO IGDL pump is particularly recommended for water supply installations, pressurization in high-rise buildings, HVAC and heating systems and industrial circulation systems in which the medium is clean water. It can also be used in boiler power systems and hot and cold utility water circuits, provided that the requirements regarding the quality of the medium and the minimum inflow pressure are met. Unlike many standard pumps operating only with cold water, the IBO IGDL is designed to operate with both cold and hot water, while maintaining specified minimum inlet pressure conditions. Thanks to the use of a mechanical seal made of materials resistant to higher temperatures and a structure with AISI 304 stainless steel elements, the pump is more suitable for heating and industrial installations. For a heating medium temperature of up to 75°C, the minimum inlet pressure on the suction side is 0.4 bar at a water column height of 4 m, which reduces the risk of cavitation and loss of efficiency. For a medium temperature of 90°C, the required minimum inlet pressure increases to 0.7 bar at a water column height of 7 m, therefore it is necessary to properly design the installation and select the pump operating point. The basis for proper operation is work with clean water, periodic inspection of filters, system tightness and electrical parameters of the engine, as well as compliance with the recommendations in the user manual. In the case of hot water installations, it is worth monitoring the water quality (hardness, sediments) and the condition of the seals to ensure long-term and failure-free operation of the pump. IBO brand pumps are standardly covered by a manufacturer's warranty, the detailed conditions and duration of which depend on the type of device and the terms of purchase; in the absence of specific data for the IBO IGDL model, please refer to the manufacturer's current warranty card - content based on general data.Where can I buy an IBO IGDL pump?
Is the IBO IGDL pump available for online sale?
What installations is the IBO IGDL pump best suited for?
How does the IBO IGDL pump differ from typical cold water pumps?
What are the inlet pressure requirements on the suction side?
How to care for the IBO IGDL pump during operation?
What is the warranty on the IBO IGDL pump?
- Lifting: 10.0 m,
- Performance: 200.0 l/min.,
- Suction capacity: m,
- Power: 0.37 kW,
- Power supply: ,
- Frequency: 50 Hz,
- Power consumption: 2.45 Oh,
- Motor Speed: 2900 rpm ,
- Dimensions: 405/305/210 mm
- Weight: 12.2 kg,
