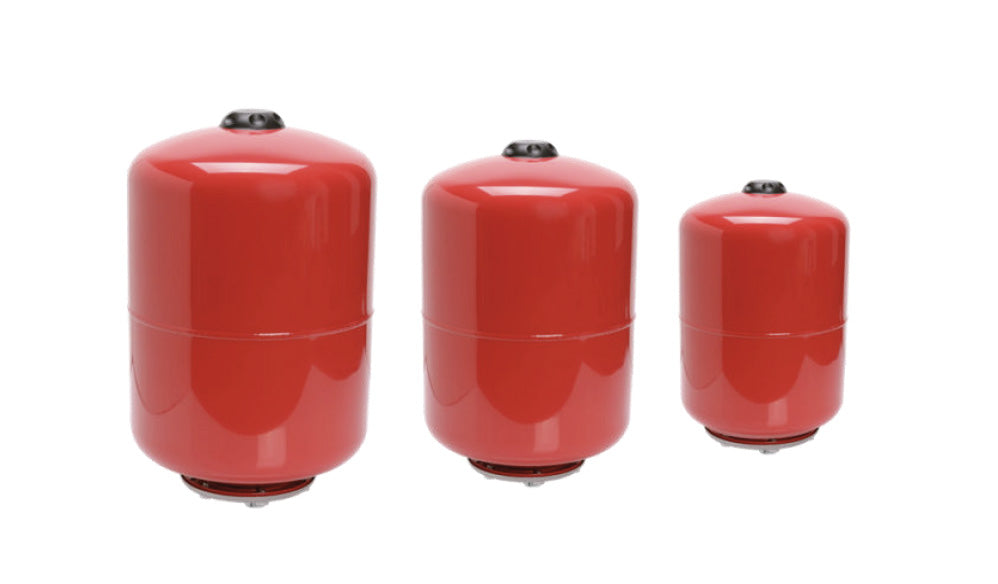

C.O. 100 BASIC diaphragm expansion vessel – expansion vessel for central heating systems
The IBO C.O. 100 BASIC diaphragm expansion vessel is a closed expansion vessel with a capacity of 100 l, designed for central heating systems. It accommodates the thermal expansion of water and stabilizes system pressure, limiting fluctuations as the system heats up and cools down. A replaceable EPDM diaphragm inside separates the heating water from the gas cushion.
Who it's for
-
Heating system installers – the 1" connection and replaceable EPDM diaphragm simplify installation and subsequent maintenance in a closed central heating system.
-
Homeowners with a boiler or furnace – the vessel accommodates the increase in water volume as it heats up, maintaining stable system pressure.
-
Heating and solar systems – the 1.5 bar pre-charge pressure suits typical closed systems operating with heating water or a glycol solution.
-
Technical servicing – the replaceable EPDM diaphragm allows the vessel to be restored to working order without replacing the entire unit.
Applications
The C.O. 100 BASIC diaphragm expansion vessel accommodates the thermal expansion of water in a closed central heating system, maintaining stable pressure and limiting fluctuations caused by the increase in water volume as it heats up.
It is suitable for domestic and commercial heating systems as well as solar systems operating with heating water or a glycol solution. The C.O. 100 BASIC expansion vessel is installed vertically on the system return side.
C.O. 100 BASIC expansion vessel features – description and technical data
The vessel body is made of steel coated with a protective exterior finish that increases corrosion resistance. A replaceable diaphragm made of EPDM synthetic rubber, resistant to stretching and elevated temperatures, is fitted inside the steel shell. The diaphragm separates the heating medium from the compressed gas cushion, limiting the water's contact with the inside of the body.
The vessel is supplied with a factory pre-charge pressure of 1.5 bar ±10%, which can be adjusted to suit the specific installation. It works with closed heating systems with a maximum operating pressure of 8 bar and a medium temperature of up to 99°C.
- Type: diaphragm expansion vessel for central heating
- Brand: IBO
- Capacity: 100 l
- Diaphragm: replaceable, EPDM
- Pre-charge pressure: 1.5 bar ±10%
- Max. operating pressure: 8 bar
- Max. test pressure: 12 bar
- Connection: 1"
- Operating temperature: 0–99°C
- Installation position: vertical
- Dimensions (Ø × height): Ø45 × 89 cm
- Weight: 11.5 kg
IBO – 24-month (2-year) manufacturer's warranty. Dambat provides warranty and post-warranty service.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certifications.
Frequently asked questions (FAQ) – C.O. 100 BASIC diaphragm expansion vessel
What is the C.O. 100 BASIC diaphragm expansion vessel used for?
The IBO C.O. 100 BASIC diaphragm expansion vessel absorbs the thermal expansion of water in a closed central heating system and stabilizes the pressure. W this way, it reduces pressure fluctuations that occur when water expands as it heats up.
How does the C.O. BASIC expansion vessel differ from the CWU BASIC version?
The C.O. BASIC expansion vessel is designed for closed central heating systems and works with heating water. The separate CWU BASIC series is intended for domestic hot water and designed to come into contact with potable water. The two series should not be used interchangeably.
What is the vessel's pre-charge pressure, and can it be changed?
The factory pre-charge pressure is 1.5 bar ±10%. It can be adjusted to match the system's static pressure by adding or releasing gas through the valve on the vessel connection, with the system isolated and depressurized.
How do I install the C.O. 100 BASIC diaphragm expansion vessel?
Install the vessel vertically, usually on the return side of the system, using the 1" connection. An isolation valve is recommended to allow servicing without draining the entire system. Check the pre-charge pressure before startup.
Where can I buy the C.O. 100 BASIC diaphragm expansion vessel?
The manufacturer does not sell directly. The C.O. 100 BASIC expansion vessel is available from trade partners, plumbing wholesalers, and authorized online distributors.
What warranty does the C.O. 100 BASIC expansion vessel have?
The IBO C.O. 100 BASIC diaphragm expansion vessel comes with a 24-month (2-year) manufacturer's warranty. Dambat provides warranty and post-warranty service.
