Description

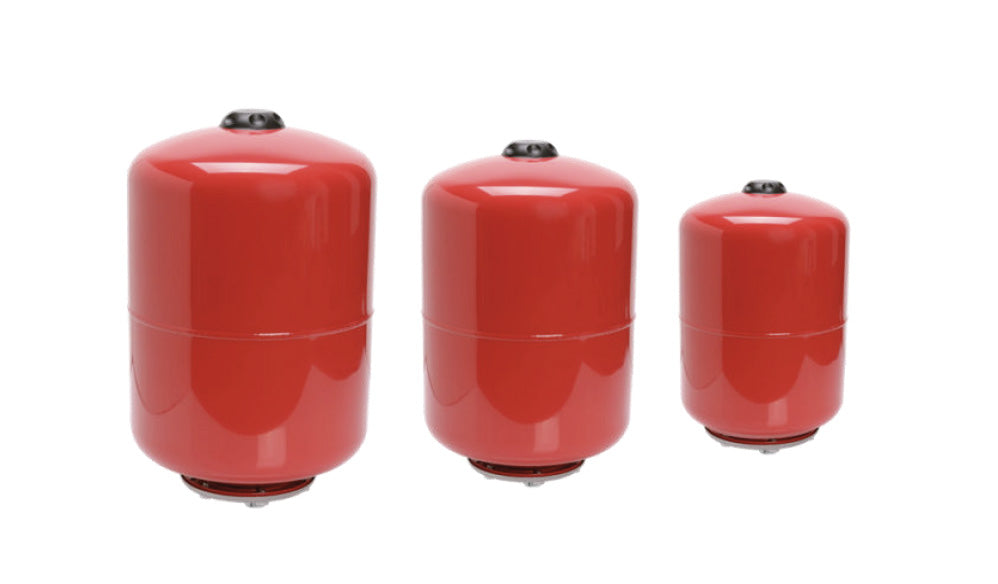

IBO C.O. 8 BASIC Expansion Vessel
IBO C.O. BASIC expansion vessels are expansion tanks designed for closed heating and solar systems. As a manufacturer, we designed the BASIC series to effectively compensate for changes in the volume of the heating medium, stabilizing pressure and protecting the system against excessive pressure increases. The series is available in capacities from 8 to 100 liters, in wall-mounted and floor-standing versions.
Who it is for
- HVAC installation companies – we supply proven, ready-to-install components for building safe closed heating and solar systems.
- Heating system designers – we offer vessels with specific pressure and capacity data, making system selection and planning easier.
- Wholesalers and technical stores – we enable you to expand your product range with an economical series of C.O. expansion vessels available in a wide range of capacities.
- Service technicians and maintenance departments – we provide vessels with a replaceable EPDM diaphragm, facilitating servicing without replacing the entire unit.
Applications
- Maintaining and equalizing pressure in closed central heating systems – compensating for changes in the volume of the medium resulting from heating.
- Operation in solar systems using a medium containing up to 50% glycol.
- Protecting heating systems in residential buildings, agricultural facilities, and small industrial installations.
- Operation with closed heating-water circuits in boiler and collector systems.
IBO C.O. BASIC expansion vessels are not suitable for contact with oils, solvents, chemical liquids, petroleum-based substances, or Group 1 fluids according to Directive 2014/68/EU.
Features, description, and technical data
The Dambat IBO C.O. BASIC series includes expansion vessels for heating and solar systems, available in two mounting configurations: wall-mounted vessels with capacities of 8, 12, 19, and 24 liters, and floor-standing vessels with capacities of 36, 50, 80, and 100 liters. This selection of variants makes it possible to match the device to both small domestic systems and larger utility installations.
The vessel body is made of carbon steel coated with an exterior protective lacquer that provides corrosion resistance. A replaceable diaphragm made of synthetic EPDM rubber is installed inside the steel shell. It is characterized by high tensile strength and resistance to high temperatures. The diaphragm completely separates the heating medium from the compressed air cushion, preventing internal corrosion of the body.
BASIC series vessels are equipped with a valve for regulating the pressure inside the tank and a replaceable galvanized steel flange with a diameter of ¾", enabling the vessel to be connected to an existing pipe system.
Common parameters of the IBO C.O. BASIC series:
- Diaphragm: YES – replaceable, EPDM
- Connection: ¾" (replaceable galvanized flange)
- Pre-charge pressure: 1.5 bar (±10%)
- Operating temperature: from 0°C to 99°C
- Body: carbon steel coated with protective lacquer
- Flange: galvanized steel
Warranty: IBO – 24-month (2-year) manufacturer’s warranty. Dambat is the only authorized service provider.
Frequently asked questions (FAQ) – IBO C.O. BASIC expansion vessels
What are IBO C.O. BASIC expansion vessels used for?
IBO C.O. BASIC expansion vessels are designed for use in closed central heating and solar systems. Their main function is to compensate for changes in the volume of the heating medium caused by temperature variations and to continuously stabilize pressure, protecting the system against excessive pressure increases and hydraulic failures.
How does the IBO C.O. BASIC series differ from IBO ITALY C.O. vessels and GBV tanks?
IBO C.O. BASIC is an economical IBO series intended for closed heating and solar systems, featuring an EPDM diaphragm and a pre-charge pressure of 1.5 bar, covered by a 24-month manufacturer’s warranty. The IBO ITALY C.O. series is the equivalent from the IBO ITALY line and is covered by a 3-year warranty. GBV tanks, on the other hand, are intended for water supply and pressure-boosting systems, not for heating media.
Where can expansion vessels from the IBO C.O. BASIC series be purchased?
As a manufacturer, we do not sell directly online. IBO C.O. BASIC expansion vessels are available from our trading partners, installation wholesalers, and authorized online distributors cooperating with the Dambat brand.
What is the warranty period and where can service be requested?
IBO C.O. BASIC expansion vessels are covered by a 24-month (2-year) manufacturer’s warranty. Dambat is the only authorized service provider – the contact form is available at dambat.pl/pages/serwis.
How should IBO C.O. BASIC expansion vessels be installed correctly?
Wall-mounted vessels (8–24 l) are installed horizontally on the return line to the heater. Floor-standing vessels (36–100 l) are installed vertically.
How can the pre-charge pressure in IBO C.O. BASIC vessels be checked?
The pressure is regulated through the air valve located on the vessel. Pressure is replenished using a standard compressor. The factory pre-charge pressure of the IBO C.O. BASIC series is 1.5 bar (±10%).
Are IBO C.O. BASIC vessels suitable for glycol systems?
Yes – IBO C.O. BASIC expansion vessels are approved for use with mixtures of water and ethylene glycol or propylene glycol, provided that the glycol content does not exceed 50%. The devices are not suitable for contact with oils, solvents, chemical liquids, or petroleum-based substances.
- Diaphragm: YES,
- Installation position: Vertical,
- Connection: 3/4",
- Pressure gauge: NO,
- Maximum tested pressure: 12.0 bar,
- Pre-charge pressure: 1.5 ±10%,
- Operating pressure: 8.0 bar,
- Operating temperature: from 0°C to 99°C,
- Dimensions: Ø20/33 cm,
- Weight: 2.05 kg,
MATERIALS
• Body: Carbon steel coated with paint,
• Diaphragm: EPDM.
Download: Instrukcja_IBO_HEAT_CO_BASIC_PL.pdf
Download: GARAN_Prawny_obowiazek_zapewnienia_zgodnosci_towaru_z_umowa.pdf
