Description

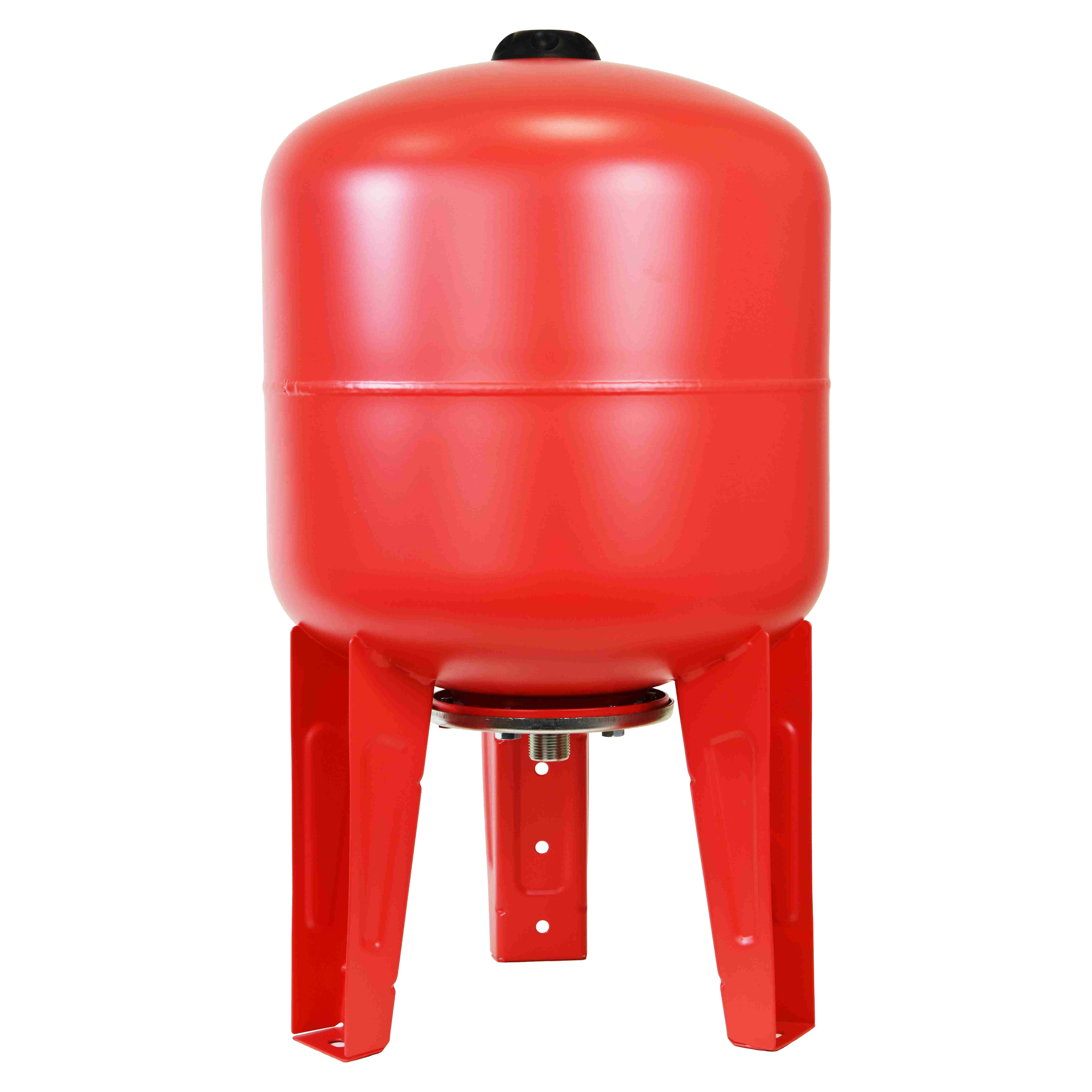

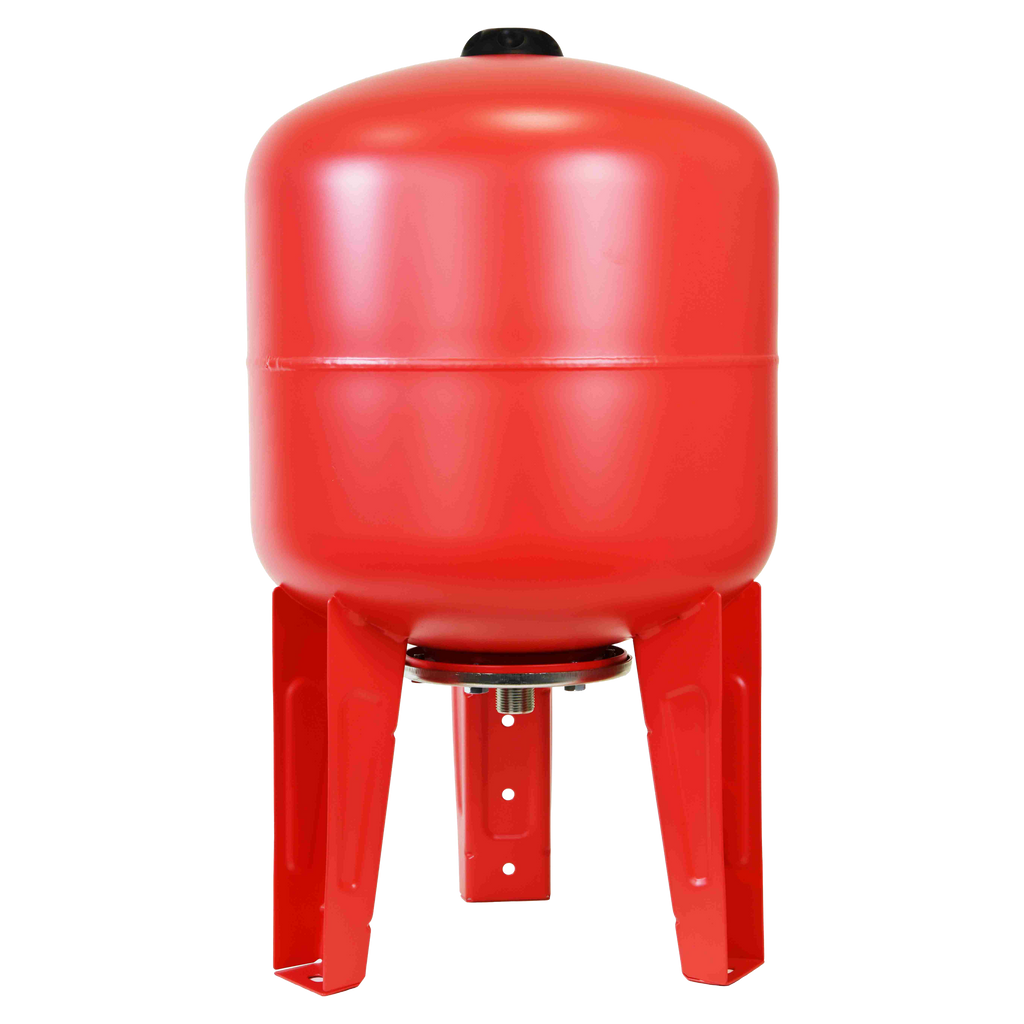

Central heating expansion vessel 36 BASIC
IBO C.O. expansion vessels BASIC are expansion tanks intended for closed heating and solar systems. As a manufacturer, we design the BASIC series to effectively compensate for changes in the volume of the heating medium, stabilizing the pressure and protecting the installation against excessive pressure increases. The series is available in capacities from 8 to 100 liters, in hanging and standing versions.
For whom
- HVAC installation companies – we supply proven, ready-to-install components for the construction of safe closed heating and solar installations.
- Heating system designers – we offer vessels with specific pressure and capacity data, facilitating the selection and planning of installations.
- Wholesale and technical stores – we make it possible to expand our offer with an economical series of expansion tanks for central heating. available in a wide range of capacities.
- Service technicians and maintenance departments – we provide vessels with a replaceable EPDM membrane, which facilitates servicing without replacing the entire device.
Application
- Maintaining and equalizing pressure in closed central heating installations - compensation for changes in the volume of the medium resulting from its heating.
- Work in solar installations with a factor containing up to 50% glycol.
- Protection of heating systems in residential buildings, agricultural facilities and small industrial installations.
- Cooperation with closed heating water circuits in boiler and collector systems.
IBO C.O. expansion vessels BASIC are not suitable for contact with oils, solvents, chemical fluids, petroleum substances or fluids from group 1 according to Directive 2014/68/EU.
Features, description and technical data

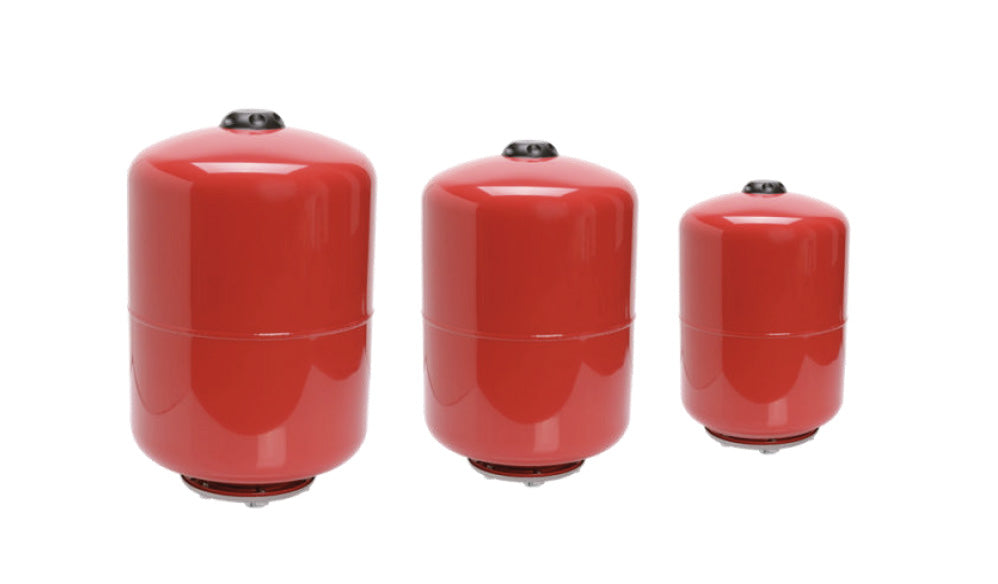

IBO C.O. series BASIC by Dambat includes expansion vessels for heating and solar installations, available in two installation configurations: hanging vessels with capacities of 8, 12, 19 and 24 liters and standing vessels with capacities of 36, 50, 80 and 100 liters. This selection of variants allows the device to be adapted to both small home installations and larger utility systems.
The body of the vessel is made of carbon steel covered with an external protective varnish to ensure corrosion resistance. Inside the steel jacket there is a replaceable membrane made of synthetic EPDM rubber, characterized by high tensile strength and resistance to high temperatures. The membrane completely separates the heating medium from the compressed air bag, preventing internal corrosion of the body.
The BASIC series vessels are equipped with a valve that regulates the pressure inside the tank and a replaceable flange made of galvanized steel with a diameter of ¾", enabling the vessel to be connected to the existing pipe system.
Common parameters of the IBO C.O. series BASIC:
- diaphragm: YES – replaceable, EPDM
- Connection: ¾" (replaceable galvanized flange)
- Pre-pressure: 1.5 bar (±10%)
- Working Temperature: from 0°C to 100°C
- Body: carbon steel covered with protective varnish
- Flange: galvanized steel
Warranty: IBO – 24 months (2 years) manufacturer's warranty. The only authorized service is Dambat.
Frequently asked questions (FAQ) – IBO C.H. expansion vessels BASIC
What are IBO C.H. expansion vessels used for? BASIC?
IBO C.O. expansion vessels BASIC are designed to work in closed central heating and solar installations. Their main function is to compensate for changes in the volume of the heating medium due to temperature and to constantly stabilize the pressure, protecting the installation against excessive pressure increases and hydraulic failures.
What is the IBO C.O. series? BASIC differs from central heating vessels. IBO ITALY and GBV tanks?
IBO C.O. BASIC is an economical series of the IBO brand dedicated to closed heating and solar installations, with an EPDM membrane and an initial pressure of 1.5 bar, covered by a 24-month manufacturer's warranty. C.O. series IBO ITALY this is the line equivalent IBO ITALY covered by a 3-year warranty. GBV tanks are intended for water supply and hydrophore installations - not for heating medium.
Where can you buy expansion vessels from the IBO C.O. series? BASIC?
As a manufacturer, we do not sell directly online. IBO C.O. expansion vessels BASIC are available from our trading partners, installation wholesalers and authorized online distributors cooperating with the Dambat brand.
What is the warranty period and where to report service?
Expansion vessels of the IBO C.O. series BASIC are covered 24-month (2 years) manufacturer's warranty. The only authorized service is Dambat - the contact form is available on the website dambat.pl/pages/serwis.
How to properly install IBO C.H. expansion vessels BASIC?
Hanging vessels (8-24 l) are installed in a horizontal position on the return to the heater. Stand-up vessels (36–100 l) are installed in a vertical position.
How to control the pre-pressure in IBO central heating vessels? BASIC?
The pressure is regulated by an air valve located on the vessel. Pressure is replenished with a standard compressor. Factory pre-charge pressure of the IBO C.O. series. BASIC is 1.5 bar (±10%).
Are IBO central heating vessels? BASIC are suitable for installations with glycol?
Yes – IBO C.H. expansion vessels. BASIC are approved for use with mixtures of water and ethylene or propylene glycol, provided that the glycol content does not exceed 50%. The devices are not suitable for contact with oils, solvents, chemical liquids or petroleum substances.
- diaphragm: YES,
- Installation Position: Vertical,
- Connection: 3/4",
- Pressure gauge: NO,
- Maximum Tested Pressure: 12.0 bar,
- Pre-pressure: 1.5 ±10%,
- Working pressure: 8.0 bar,
- Operating temperature: from 0°C to 100°C,
- Dimensions: Ø35/60 cm,
- Weight: 8.0 kg,
MATERIALS
• Body: Carbon steel covered with varnish,
• Diaphragm: EPDM.
