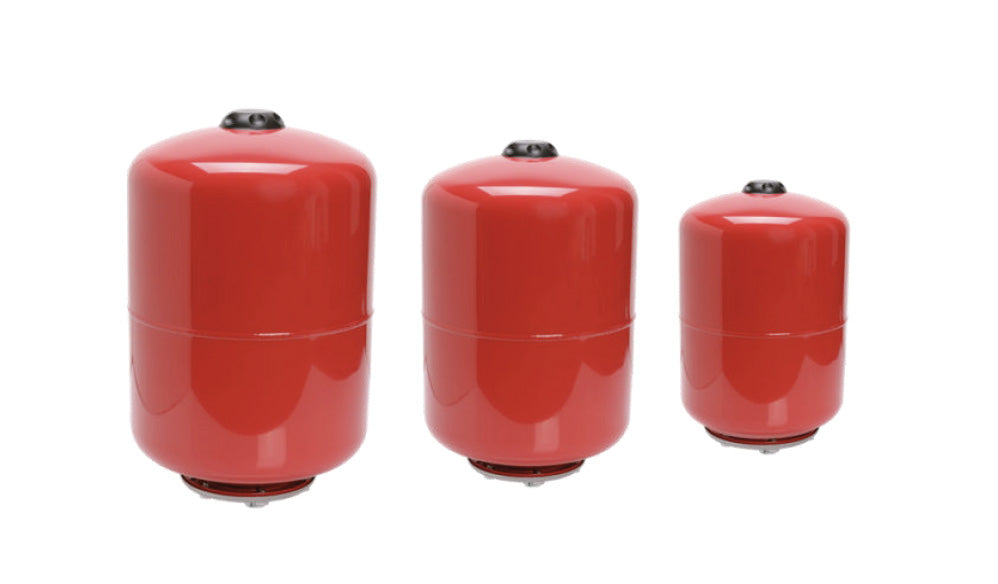

C.O. 24 BASIC diaphragm expansion vessel – an expansion vessel for central heating systems
The IBO C.O. 24 BASIC diaphragm expansion vessel is a closed expansion vessel with a capacity of 24 l, designed for central heating systems. It accommodates the thermal expansion of water and stabilizes system pressure, limiting fluctuations as the system heats up and cools down. It contains a replaceable EPDM diaphragm that separates the heating water from the gas cushion.
Who it's for
-
Heating system installers – the 3/4" connection and replaceable EPDM diaphragm make installation and subsequent servicing easier in a closed central heating system.
-
Homeowners with a boiler or furnace – the vessel accommodates the increase in water volume during heating, maintaining stable system pressure.
-
Heating and solar systems – the 1.5 bar pre-charge pressure is suitable for typical closed systems operating with heating water or a glycol solution.
-
Technical servicing – the replaceable EPDM diaphragm allows the vessel to be restored to working order without replacing the entire unit.
Applications
The C.O. 24 BASIC diaphragm expansion vessel accommodates the thermal expansion of water in a closed central heating system, maintaining stable pressure and limiting fluctuations caused by the increase in water volume during heating.
It is suitable for domestic and commercial heating systems, as well as solar systems operating with heating water or a glycol solution. The C.O. 24 BASIC expansion vessel is installed vertically on the system return side.
Features of the C.O. 24 BASIC vessel – description and technical data
The vessel body is made of steel coated on the outside with a protective varnish that increases corrosion resistance. A replaceable EPDM synthetic rubber diaphragm, resistant to stretching and elevated temperatures, is fitted inside the steel shell. The diaphragm separates the heating medium from the compressed gas cushion, limiting contact between the water and the inside of the vessel.
The vessel is supplied with a factory pre-charge pressure of 1.5 bar ±10%, which can be adjusted to suit the specific system. It is compatible with closed heating systems with a maximum operating pressure of 8 bar and a fluid temperature of up to 99°C.
- Type: diaphragm expansion vessel for central heating
- Brand: IBO
- Capacity: 24 l
- Diaphragm: replaceable, EPDM
- Pre-charge pressure: 1.5 bar ±10%
- Max. operating pressure: 8 bar
- Max. test pressure: 12 bar
- Connection: 3/4"
- Operating temperature: 0–99°C
- Installation position: vertical
- Dimensions (Ø × height): Ø28 × 46 cm
- Weight: 5.0 kg
IBO - 24-month (2-year) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
Dambat - a trusted manufacturer of pumps and hydrotechnical equipment with quality certifications.
Frequently Asked Questions (FAQ) - BASIC 24 heating expansion vessel
What is the BASIC 24 heating expansion vessel used for?
The IBO BASIC 24 heating expansion vessel accommodates the thermal expansion of water in a closed central heating system and stabilizes its pressure. This helps limit pressure fluctuations that occur as water expands when heated.
How does the BASIC heating expansion vessel differ from the BASIC DHW version?
The BASIC heating expansion vessel is designed for closed central heating systems and works with heating water. The separate BASIC DHW series is designed for domestic hot water and is suitable for contact with potable water. The two series should not be used interchangeably.
What is the vessel's pre-charge pressure, and can it be changed?
The factory pre-charge pressure is 1.5 bar ±10%. It can be adjusted to match the system's static pressure by adding or releasing gas through the valve on the vessel's connection, with the system isolated and depressurized.
How do I install the BASIC 24 heating expansion vessel?
Install the vessel vertically, usually on the return side of the system, using a 3/4" connection. An isolation valve is recommended to allow servicing without draining the entire system. Check the pre-charge pressure before startup.
Where can I buy the BASIC 24 heating expansion vessel?
The manufacturer does not sell directly. The BASIC 24 heating expansion vessel is available from trade partners, plumbing wholesalers, and authorized online distributors.
What is the warranty on the BASIC 24 heating expansion vessel?
The IBO BASIC 24 heating expansion vessel comes with a 24-month (2-year) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
