Description
As a manufacturer of the IBO brand, we design intelligent AUTOIBO series pumps as complete sets for automatically maintaining constant water pressure in home installations and small utility facilities. The AUTOIBO series pump combines a high-efficiency hydraulic pump system with a built-in frequency converter, a permanent magnet motor and advanced security features, enabling energy savings of approximately 30-60% compared to traditional solutions.
For whom
- Installers - we make selection and commissioning easier thanks to an integrated inverter, soft-start function and a simple control panel with pressure regulation with "+" and "-" buttons.
- Home users - we ensure automatic switching on and off of the AUTOIBO pump depending on water consumption, quiet operation and the possibility of installation at home.
- Home owners with their own water intake - we offer a solution for supplying water from a well with suction control up to 8 m of water column and protection against dry running.
- Farms and gardens - we enable stable pressure when watering greenhouses, gardens and fields by automatically adjusting the engine speed to the demand.
- Service companies – we provide access to detailed instructions, diagnostic tables and automatic protection functions, which facilitates the diagnosis and service of AUTOIBO pumps.
Application
- Supplying water to households from their own water intakes, while maintaining a maximum suction capacity of up to 8 m of water column and pressure control for operation in constant pressure mode.
- Raising pressure in water supply systems, provided that the suction pressure does not exceed 2.5 bar and an appropriate reducer and check valve are used.
- Irrigation of greenhouses, gardens and areas around the house where stable pressure and automatic pump operation depending on water consumption are required.
- Installations in residential buildings, holiday homes and small commercial facilities where quiet operation and compact installation of the pump with a frequency converter are important.
- Systems that require constant water pressure and comprehensive pump protection without the need to use additional probes in the well.
Features, description and technical data
As a manufacturer of the IBO brand, we design AUTOIBO series pumps as intelligent water devices, equipped with a high-efficiency frequency converter integrated with the pump and a permanent magnet motor. This design creates a tuned system that maintains constant pressure in the installation, regardless of the momentary water consumption, by smoothly adjusting the engine speed as a function of the load.
The AUTOIBO pump starts automatically when the water pressure in the installation drops (e.g. after opening the tap) and turns off when water consumption stops, which eliminates the need for manual control and reduces the number of starts at low flows. The soft-start and soft-stop functions reduce hydraulic shocks in the installation, extend the life of hydraulic components and fittings, and limit the noise associated with start-ups.
Compared to traditional water supply systems, AUTOIBO series pumps are characterized by high efficiency and the possibility of energy savings of approximately 30-60%, thanks to operation at adjusted rotational speed and limiting unnecessary losses at partial load. These pumps have been designed for quiet operation, which allows installation at home, and simple operation - all basic functions and pressure settings are performed using a clear panel with buttons.
AUTOIBO is equipped with a comprehensive protection system: overcurrent, overvoltage, undervoltage, short circuit, against blocked rotor and against dry running, and protection against lack of water can operate without the need to install additional probes or sensors in the well. The built-in controller logic allows for the diagnosis of basic failure states, and the manual contains a table of typical faults and methods of their removal, which facilitates service and operation.
Typical operating conditions include pumping clean water and liquids with similar physicochemical properties in the medium temperature range from 0 to 35°C, with an allowable ambient temperature of 0–45°C and operation inside dry and ventilated rooms. The volume ratio of solid impurities in the medium should not exceed 0.1%, and the particle size should not exceed 0.2 mm, which protects against accelerated wear of the impeller and seal; It is not recommended to pump dirty, abrasive, fibrous or flammable liquids.
According to the parameter sheet, AUTOIBO models are characterized by, among others: maximum lift of 45–60 m, capacity up to 100 l/min, single-phase power supply 230 V@50 Hz, suction capacity up to 8 m of water column and rotational speed up to 3450 rpm, with a maximum medium temperature of up to 90°C depending on the version. The exact values of lifting capacity, efficiency, motor power, rated current, connection ports, dimensions and weight of individual AUTOIBO 1 and AUTOIBO 2 models should be verified each time in the technical table and on the device's nameplate.
In terms of warranty for end users, the manual specifies a standard period of 24 months, and the warranty card is valid together with the proof of purchase and under the conditions of use described in the manufacturer's documentation. Detailed warranty rules, liability exclusions and service procedures can be found in the "WARRANTY CARD" chapter of the HOME 1 / AUTOIBO manual.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certificates.
Frequently asked questions (FAQ) – what is the AUTOIBO pump used for?
What is the AUTOIBO pump used for in the water installation?
As a manufacturer of the IBO brand, we design AUTOIBO series pumps for supplying water to households and increasing the pressure in water installations while maintaining a constant, set pressure. The device automatically turns on when the pressure drops and turns off when the water consumption stops, which ensures comfortable use at home, in the garden or in a small facility.
Where can I buy the AUTOIBO pump manufactured by Dambat?
As a manufacturer, we do not sell directly online. AUTOIBO series pumps are available from our trading partners, installation wholesalers and the network of authorized distributors, in accordance with the current distribution channel of IBO devices.
What is the difference between the AUTOIBO pump and a traditional hydrophore?
The AUTOIBO pump has a built-in frequency converter and a permanent magnet motor, thanks to which it maintains constant pressure by adjusting the rotational speed, and not only by switching it on and off at extreme pressure values. This allows you to reduce the number of starts, improve the comfort of installation operation and achieve energy savings of approximately 30-60% compared to traditional systems.
How to set the working pressure of the AUTOIBO pump?

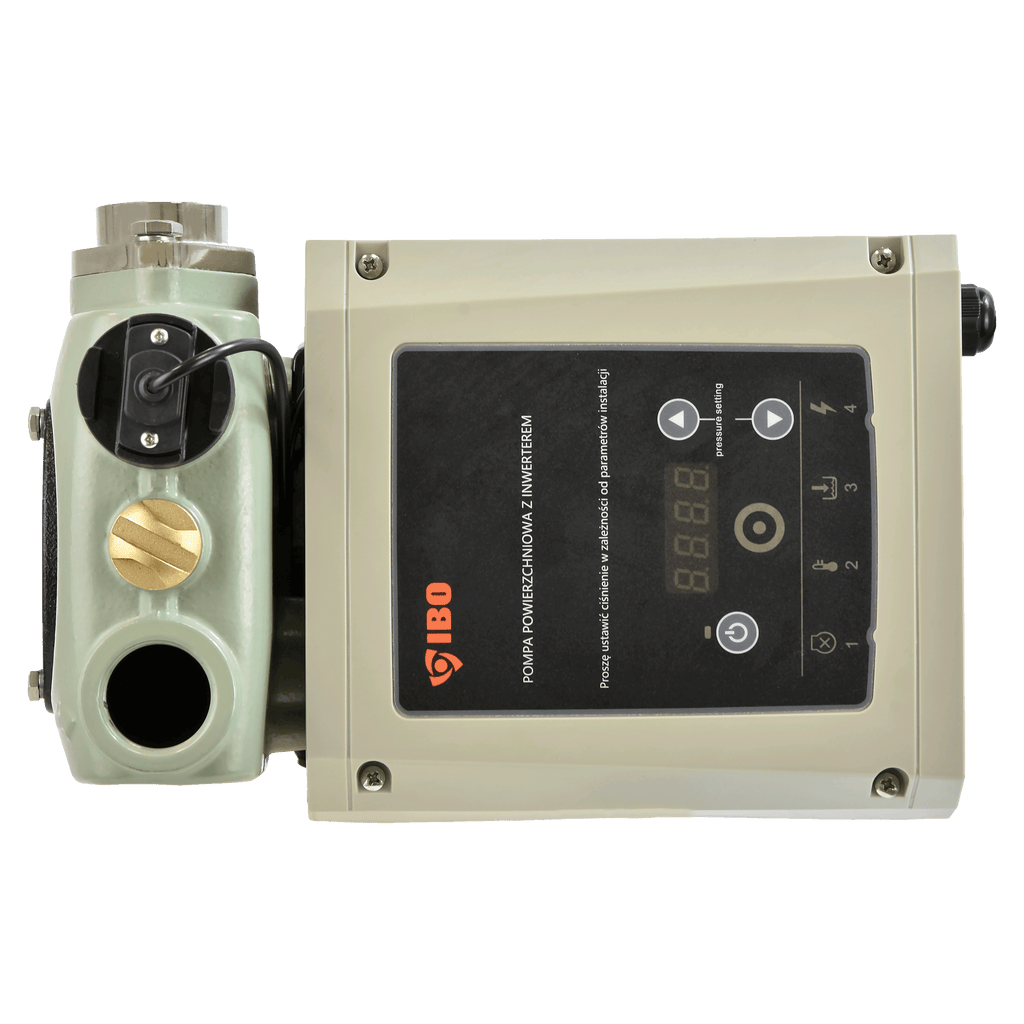

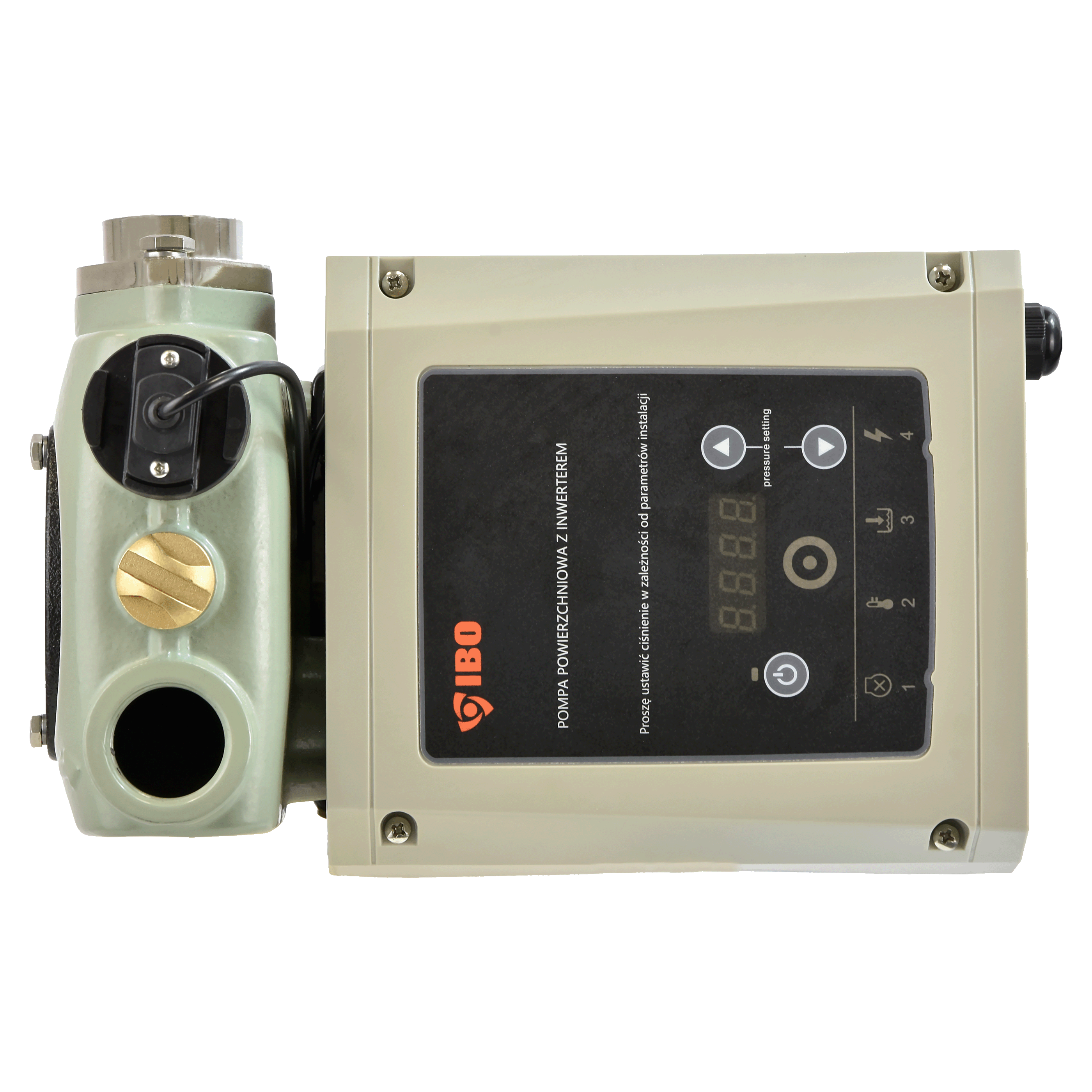

The AUTOIBO pump pressure is set from the control panel using the adjustment buttons; after entering the pressure setting mode, the change takes place in steps, and after a few seconds without any intervention, the pump saves the setting. It is recommended to select the pressure value to suit the conditions of a specific installation and not to exceed the maximum lifting parameters specified in the documentation.
What protections does the AUTOIBO series pump have?
The AUTOIBO system has extensive protection: overcurrent, overvoltage, undervoltage, short-circuit protection, against blocked rotor, as well as protection against dry running without the need to install probes in the well. If an irregularity is detected, the controller can stop the pump and signal an error, and detailed codes and procedures are described in the user manual.
What are the basic installation requirements for the AUTOIBO pump?
The pump should be installed in a dry, ventilated room, on a stable surface, maintaining the permissible ambient and medium temperature ranges and the diameters of the suction and discharge pipes in accordance with the recommendations. It is necessary to ensure tightness of the installation, proper installation of the non-return valve and filters, and avoid dry operation in order not to damage the device.
How to care for the AUTOIBO pump during operation and breaks in work?
During normal operation, the pump does not require extensive maintenance, but we recommend periodically checking the tightness of the hydraulic connections and the condition of the power supply cable, and responding to any unusual sounds or vibrations. During longer breaks in use, protect the device against frost, disconnect it from the power supply and, if necessary, drain the water from the body in accordance with the instructions.
- Max Lift: 45.0 m
- Suction capacity: 8.0 m
- Max capacity: 55.0 l/min
- Power: 0.8 kW
- Power supply:
- Current: 3.6 A
- Speed engine: 0-3450 rpm
- Insulation class: B
- Degree of protection: IP44
- Connection: 1x1 inches
- Max. liquid temperature: 35°C
- Dimensions length/height/width: 31,5/21/30,5 cm
- Weight: 14.0 kg
