6" SPINOX 30-4 (4 kW, 400 V) - multistage stainless steel submersible pump with IPRO oil-filled motor
The 6" SPINOX with an IPRO oil-filled motor is a multistage submersible pump made entirely
of AISI 304 stainless steel, designed for drawing and pumping technically clean raw water
from drilled deep wells with a minimum internal diameter of 160 mm. The pump is driven by an
IPRO IOM oil-filled motor. The series includes a range of models with different hydraulic
parameters and a wide power range, allowing you to select a model to suit the needs of a
specific high-capacity installation.
Who it's for
-
Farms and orchards with high water demand - a capacity of 415 l/min makes it possible to supply extensive irrigation systems for fields, orchards and covered crops from a single source.
-
Managers of multi-family buildings and housing estates - a single deep well can supply utility water to several buildings or an entire community in locations without access to the municipal water supply.
-
Water supply and fire protection system contractors - the increased flow rate is suitable for systems requiring large volumes of water, including hydrant systems and fire protection tanks.
-
Industrial plants and companies carrying out dewatering work - drawing process water and dewatering excavations and areas with high groundwater levels.
Applications
- Drawing and pumping raw water from larger-diameter drilled deep wells before treatment.
- Supplying water to multi-family buildings, housing estates and farms with high water demand.
- Supplying extensive irrigation and sprinkler systems, and lowering groundwater levels.
- Water supply and fire protection systems requiring higher flow rates.
With output depending on the performance of the selected model, 6" SPINOX pumps with IPRO oil-filled motors
are suitable for supplying either a single, larger facility or installations serving several buildings or large-scale irrigation systems. The 6" SPINOX 30-4 submersible pump (4 kW, 400 V) with an IPRO oil-filled motor is selected individually to suit the parameters of the specific well - its depth, diameter and required output.
The 6" SPINOX pump is not a water treatment device and does not certify that the water is suitable for human consumption. If the water is to be used for drinking, cooking, or other household purposes, an appropriate water treatment system and water quality monitoring at the point of use must be provided.
Features, description, and technical specifications

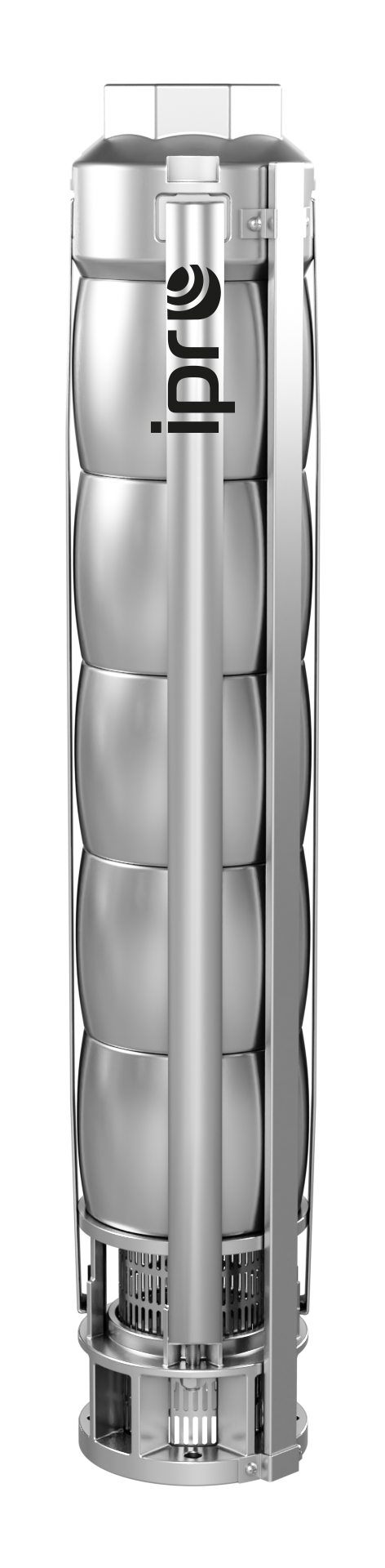

The 6" SPINOX with an IPRO oil-filled motor is a multistage deep-well pump in which all key structural components – the suction and discharge connectors, housing, shaft, impeller, and diffuser – are made of AISI 304 stainless steel. This design provides increased wear resistance and a long service life when pumping raw water, which may contain fine mineral contaminants. The mechanical seal uses a ceramic / SiC / NBR configuration. The pump is factory-fitted with a check valve to prevent water from flowing back through the discharge pipe when the pump stops.

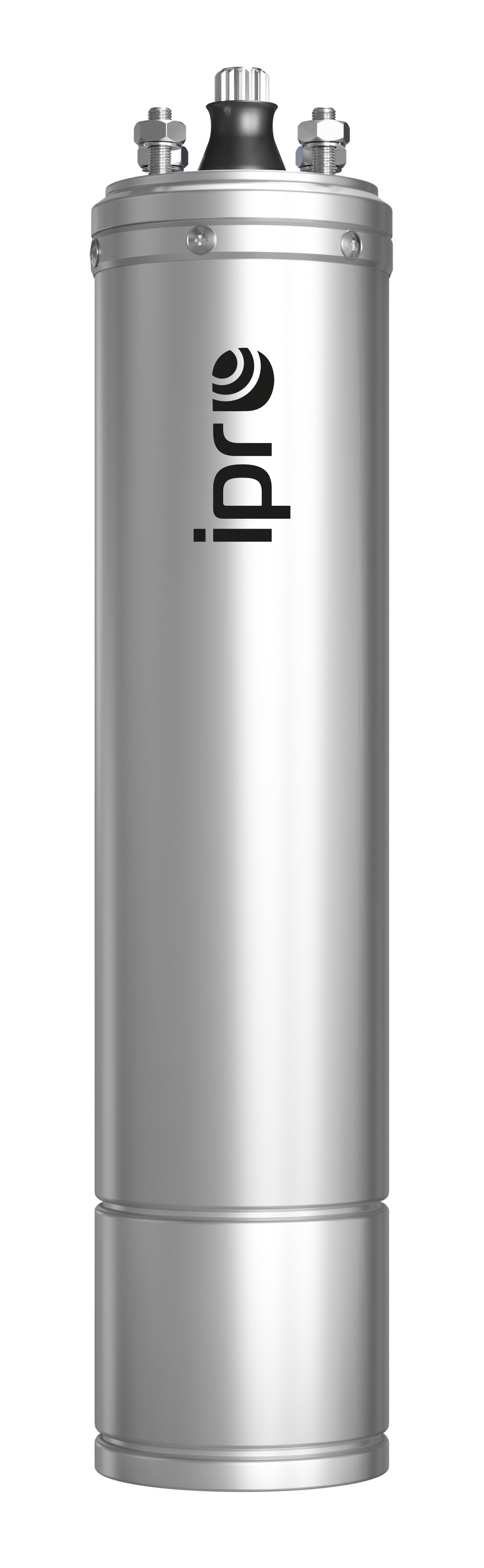

The pump is powered by an IPRO IOM oil-filled motor, cooled and lubricated by oil in a sealed motor chamber. The power cable length is selected for the specific device variant and well depth. The pump operates in continuous mode, vertically or horizontally, at a maximum pumped liquid temperature of 35°C and insulation class F.
- Device type: multistage deep-well pump
- IPRO motor: IPRO (IOM oil-filled motor)
- Model: 6" SPINOX 30-4
- Motor power: 4 kW
- Power supply: 400 V
- Motor design: oil-filled
- Unit diameter: 131 mm (with 4" motor) / 145 mm (with 6" motor)
- Minimum well diameter: 160 mm
- Materials: suction/discharge connector, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical data may vary by production batch - before installation, we recommend checking the device's nameplate.
IPRO - 36 months (3 years) manufacturer’s warranty. Dambat provides warranty and post-warranty service.
Dambat - a trusted manufacturer of pumps and water engineering equipment with quality certifications.
Frequently asked questions (FAQ) - 6" SPINOX submersible pump with an IPRO oil-filled motor
What is the 6" SPINOX submersible pump with an IPRO oil-filled motor used for?
The 6" SPINOX with an IPRO oil-filled motor is a multistage submersible pump designed to
draw and pump raw / untreated water from larger-diameter drilled wells before treatment - including
for supplying multifamily buildings, farms, and water supply and fire protection systems.
How do I choose the right 6" SPINOX model for my well?
The model selection depends on the well's depth and diameter, as well as the required system capacity -
the series includes several hydraulic subcategories with different maximum capacities and power ratings.
What motors are available for the 6" SPINOX submersible pump?
The 6" SPINOX hydraulic section can be paired with a 4" or 6" motor, depending on the
model: the IPRO WMC water-filled motor, the IPRO IOM oil-filled motor, or an oil-filled motor
from the Italian brand IBO Italy. The specific variant (motor type and diameter) is indicated
in the product name.
How can I protect the 6" SPINOX pump from running dry?
The pump can be used with dry-run protection that operates without
requiring additional probes or sensors to be installed directly in the well, simplifying
installation compared to solutions that require separate sensor wiring.
Where can I buy the 6" SPINOX submersible pump manufactured by Dambat?
Dambat does not sell directly. The 6" SPINOX pump is available from our
sales partners, plumbing wholesalers, and authorized online distributors.
What warranty terms apply to the 6" SPINOX pump with an IPRO oil-filled motor?
IPRO - 36 months (3 years) manufacturer’s warranty. Dambat provides warranty and post-warranty service.
