6" SPINOX 30-4 (4 kW, 400 V) - multistage stainless steel submersible pump, IBO ITALY oil-filled motor
The 6" SPINOX with an IBO ITALY oil-filled motor is a multistage submersible pump made entirely of AISI 304 stainless steel, designed to draw and pump technically clean raw water from drilled deep wells with a minimum internal diameter of 160 mm. The pump is driven by an IOM oil-filled motor from IBO ITALY. The series includes a range of models with varying hydraulic parameters and a wide power range, making it possible to select a model to meet the needs of a specific high-output installation.
Who it's for
-
Farms and orchards with high water demand – the output of 415 l/min can supply extensive irrigation systems for fields, orchards and greenhouse crops from a single water source.
-
Managers of multi-family buildings and housing estates – a single deep well can supply several buildings or an entire community with water in locations without access to the municipal network.
-
Water supply and fire protection system contractors – the increased flow rate is suited to systems requiring large volumes of water, including hydrant systems and fire water tanks.
-
Industrial plants and companies carrying out dewatering work – drawing process water and dewatering excavations and areas with high groundwater levels.
Applications
- Drawing and pumping raw water from larger-diameter drilled deep wells before treatment.
- Water supply for multi-family buildings, housing estates and farms with high demand.
- Supplying extensive irrigation and sprinkler systems, and lowering groundwater levels.
- Water supply and fire protection systems requiring increased flow rates.
Depending on the performance of the selected model, 6" SPINOX pumps with IBO ITALY oil-filled motors are suitable for supplying a single larger facility, as well as installations serving several buildings or larger-scale irrigation systems. The 6" SPINOX 30-4 submersible pump (4 kW, 400 V) with an IBO ITALY oil-filled motor is selected individually to suit the parameters of a specific well - its depth, diameter and required output.
The 6" SPINOX pump is not a water treatment device and does not certify
that the water is suitable for human consumption – if the water is to be used for drinking,
cooking or other household purposes, an appropriate water treatment system and
water quality testing at the point of use must be provided.
Features, description and technical specifications

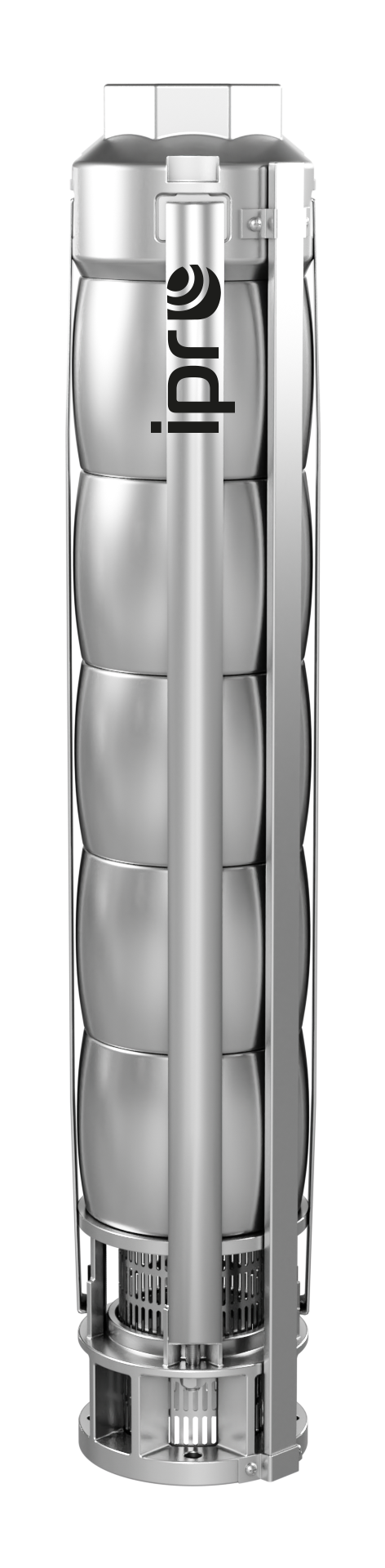

The 6" SPINOX with an IBO ITALY oil-filled motor is a multistage submersible pump in which all
key structural components – the suction and discharge ports, housing, shaft, impeller and
diffuser – are made of AISI 304 stainless steel. This construction provides increased
wear resistance and a long service life when operating in contact with raw water, which may
contain fine mineral contaminants. The mechanical seal uses a ceramic / SiC / NBR
configuration. The pump is factory-equipped with a check valve,
preventing water from flowing back through the discharge pipe after the pump stops.

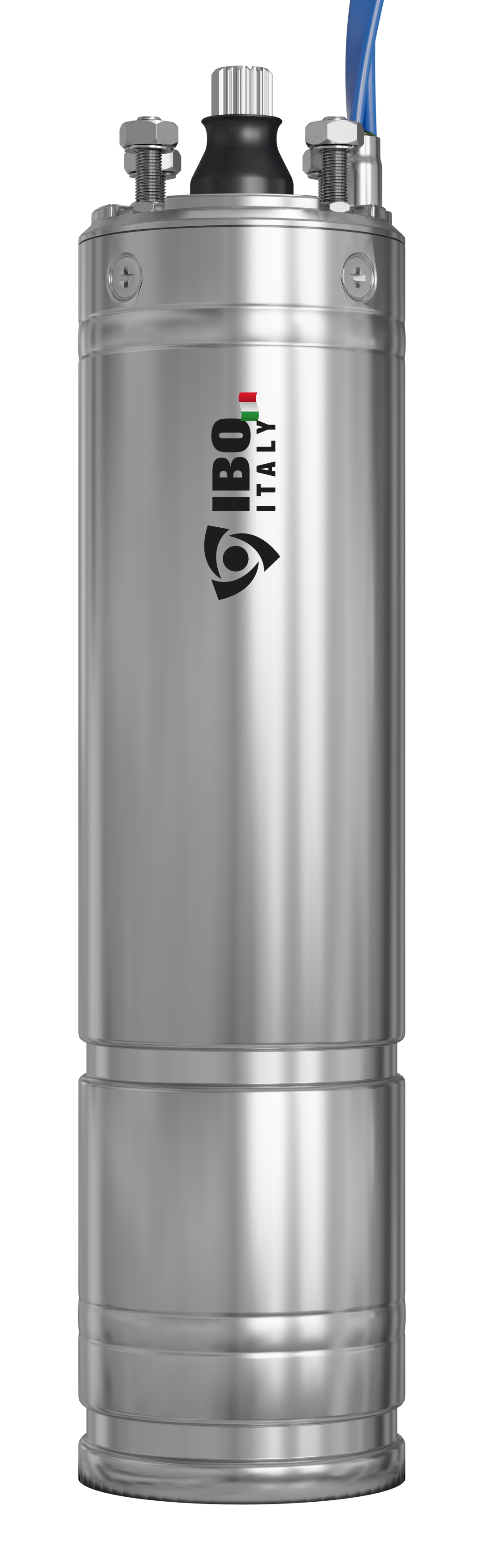

Powered by an IBO ITALY IOM oil-filled motor, cooled and lubricated by oil in a sealed motor chamber. The power cable length is selected for the specific device
variant and well depth. The pump operates in continuous mode, in a vertical
or horizontal position, at a maximum pumped liquid temperature of 35°C and with insulation class F.
- Device type: multistage submersible pump
- IBO ITALY motor: IBO ITALY (IOM oil-filled motor)
- Model: 6" SPINOX 30-4
- Motor power: 4 kW
- Power supply: 400 V
- Motor construction: oil-filled
- Unit diameter: 131 mm (with 4" motor) / 145 mm (with 6" motor)
- Minimum well diameter: 160 mm
- Materials: suction/discharge ports, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical data may vary by production batch - before installation, we recommend checking the device's rating plate.
IPRO - 36 months (3 years) manufacturer's warranty. Dambat provides warranty and post-warranty service.
Dambat - a trusted manufacturer of pumps and water engineering equipment with quality certifications.
Frequently asked questions (FAQ) - 6" SPINOX deep-well pump with an IBO ITALY oil-filled motor
What is the 6" SPINOX deep-well pump with an IBO ITALY oil-filled motor used for?
The 6" SPINOX with an IBO ITALY oil-filled motor is a multistage deep-well pump designed to draw and pump raw / untreated water from larger-diameter drilled deep wells before treatment - for example, to supply multi-family buildings, farms, and water supply and fire protection systems.
How do I choose the right 6" SPINOX model for my well?
The model selection depends on the well's depth and diameter and the required system output - the series includes several hydraulic subcategories with different maximum outputs and power ratings.
What motors are available for the 6" SPINOX deep-well pump?
The 6" SPINOX hydraulics can be paired with a 4" or 6" motor, depending on the model: an IPRO WMC water-filled motor, an IPRO IOM oil-filled motor, or an oil-filled motor from the Italian brand IBO Italy. The product name specifies the exact option (motor type and diameter).
How can I protect the 6" SPINOX pump from running dry?
The pump can be used with dry-run protection that works without installing additional probes or sensors directly in the well, simplifying installation compared with solutions that require separate sensor wiring.
Where can I buy the 6" SPINOX deep-well pump manufactured by Dambat?
Dambat does not sell directly. The 6" SPINOX pump is available from our sales partners, plumbing wholesalers, and authorized online distributors.
What warranty terms apply to the 6" SPINOX pump with an IBO ITALY oil-filled motor?
IPRO - 36 months (3 years) manufacturer's warranty. Dambat provides warranty and post-warranty service.
