Description

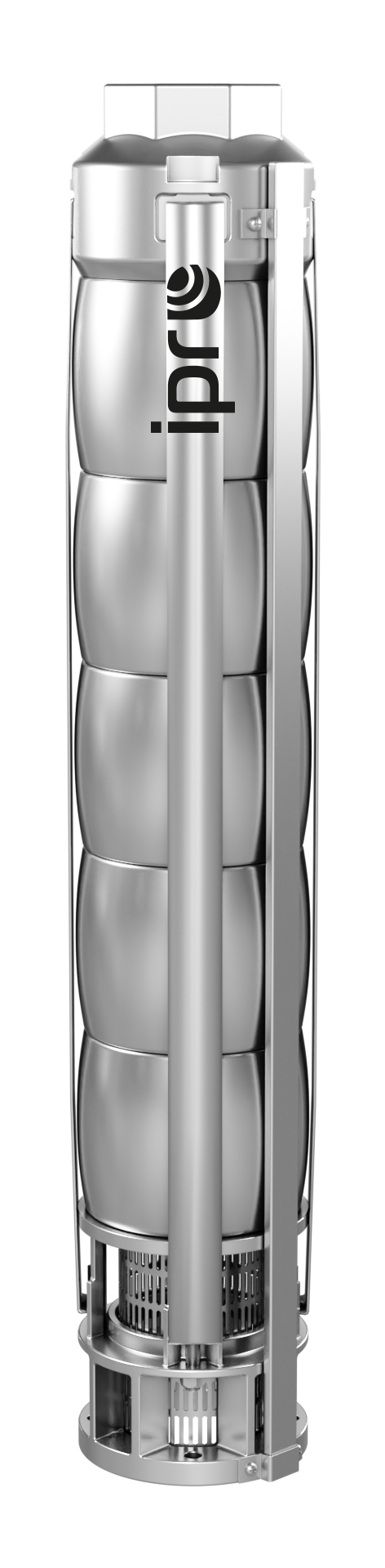

6" SPINOX 30-2 (2.2 kW, 400 V) – multistage stainless-steel submersible pump with an IPRO oil-filled motor
6" SPINOX with an IPRO oil-filled motor is a multistage submersible pump made entirely made of AISI 304 stainless steel, designed for drawing and pumping technically clean water raw water from drilled deep-water intakes with a minimum internal diameter of 160 mm. The pump is driven by an IPRO IOM oil-filled motor. The series includes a range of models with varying with hydraulic parameters and a wide range of power ratings, making it possible to select a model according to the requirements of a specific, high-capacity installation.
Who it is for
- Farms and orchards with high water demand – the capacity of 415 l/min makes it possible to power extensive irrigation systems for fields, orchards, and greenhouse crops from a single intake.
- Managers of multi-family buildings and housing estates – a single deep-water intake can supply several buildings or an entire residential community with utility water in locations without access to the municipal network.
- Water supply and fire protection system contractors – the increased flow rate is suitable for systems requiring large quantities of water, including hydrant systems and fire water tanks.
- Industrial plants and companies carrying out drainage work – drawing technical water for processes and draining excavations and areas with high groundwater levels.
Applications
- Drawing and pumping raw water from larger-diameter drilled deep wells before the treatment process.
- Water supply for multi-family buildings, housing estates, and farms with high water demand.
- Powering extensive irrigation and sprinkler systems, as well as lowering groundwater levels.
- Water supply and fire protection systems requiring increased flow rates.
Depending on the capacity of the selected model, 6" SPINOX pumps with an IPRO oil-filled motor is suitable both for supplying a single larger facility and for installations serving several buildings or larger-scale irrigation systems. The submersible pump The 6" SPINOX 30-2 (2.2 kW, 400 V) with an IPRO oil-filled motor is individually selected according to parameters of a specific well – its depth, diameter, or required capacity.
The 6" SPINOX pump is not a water treatment device and does not confirm the its suitability for human consumption – if the water is to be used for drinking, cooking or other household purposes, an appropriate water treatment system must be provided, and quality control of the water at the point of collection.
Features, description and technical data
The 6" SPINOX with an IPRO oil-filled motor is a multistage submersible pump in which all key structural components – the suction and discharge connections, housing, shaft, impeller, and the diffuser – are made of AISI 304 stainless steel. This design provides increased ensuring resistance to wear and a long service life when operating in contact with raw water, which may may contain small mineral impurities. The mechanical seal is made in a ceramic / SiC / NBR configuration. The pump is factory-equipped with a check valve, preventing water from flowing back in the discharge pipeline after the pump stops.

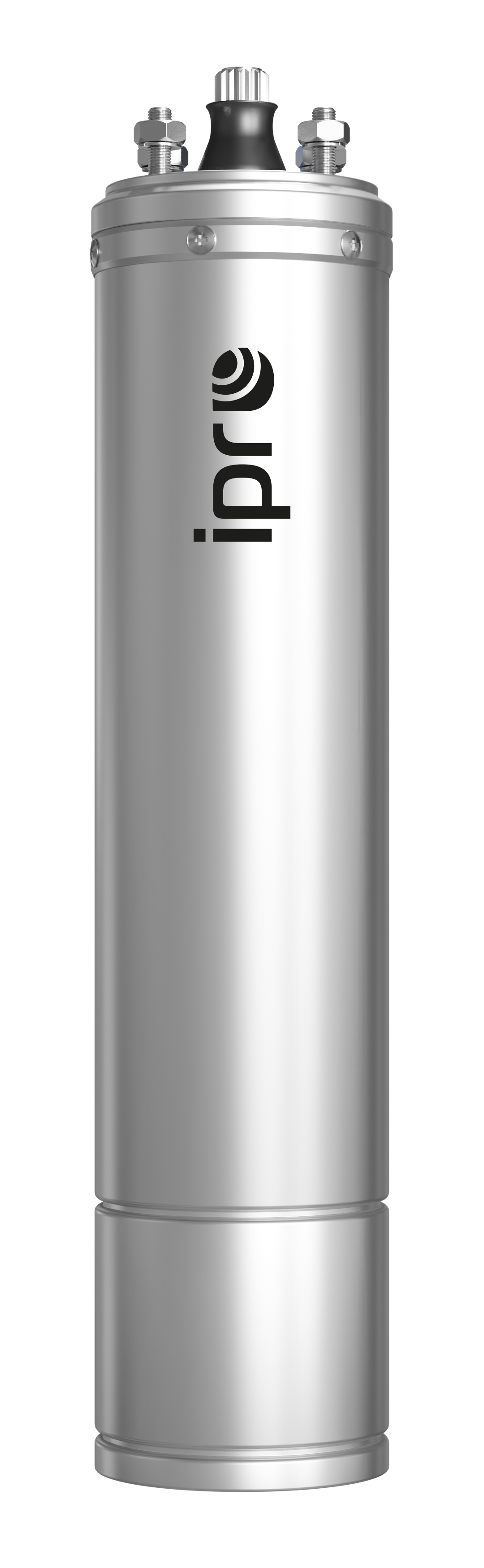

The drive is an IPRO IOM oil-filled motor, cooled and lubricated by oil located in a sealed motor chamber. The power cable length is selected for the specific The device variant and well depth. The pump operates continuously, in a vertical position or horizontal, at a maximum pumped-liquid temperature of 35°C and insulation class F.
- Device type: multistage submersible pump
- IPRO motor: IPRO (IOM oil-filled motor)
- Model: 6" SPINOX 30-2
- Motor power: 2.2 kW
- Power supply: 400 V
- Motor design: oil-filled
- Set diameter: 131 mm (with a 4" motor) / 145 mm (with a 6" motor)
- Minimum well diameter: 160 mm
- Materials: suction/discharge connection, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. temperature of the pumped liquid: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical specifications may vary depending on the production batch – before installation, we recommend checking the device's nameplate.
IPRO – 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certificates.
Frequently Asked Questions (FAQ) – 6" SPINOX deep-well pump with an IPRO oil-filled motor
What is the 6" SPINOX deep-well pump with an IPRO oil-filled motor used for?
The 6" SPINOX with an IPRO oil-filled motor is a multistage deep-well pump designed for drawing and pumping raw / untreated water from larger-diameter drilled deep wells diameter, before the treatment process – including for supplying multi-family buildings, farms and water supply and fire protection systems.
How do I choose the right 6" SPINOX model for my well?
Model selection depends on the well's depth and diameter and the required system flow rate – the series includes several hydraulic subcategories with different maximum flow rates and power ratings.
What motors are available for the 6" SPINOX deep-well pump?
The 6" SPINOX hydraulic section can be combined with a 4" or 6" diameter motor, depending on the model – with an IPRO WMC water-filled motor, an IPRO IOM oil-filled motor, or an oil-filled an Italian IBO Italy brand motor. The specific variant (motor type and diameter) is indicated in the product name.
How can I protect the 6" SPINOX pump against dry running?
The pump can work with a dry-run protection system that operates without the need to install additional probes or sensors directly in the well, simplifying installation compared with solutions requiring separate sensor wiring.
Where can I buy the 6" SPINOX deep-well pump manufactured by Dambat?
Dambat does not sell directly. The 6" SPINOX pump is available from our trade partners, plumbing wholesalers, and authorized distributors online.
What warranty terms apply to the 6" SPINOX pump with an IPRO oil-filled motor?
IPRO – 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service provided by Dambat.
- Diameter: 6”,
- Lift: 23.0 m,
- Capacity: 695.0 l/min.,
- Power: 2.2 kW,
- Power supply: 300–400 V,
- Frequency: 50 Hz,
- Current: 6.0 A,
- Motor speed: 2850 rpm,
- Insulation class: F,
- Operating mode: continuous,
- Protection rating: IP68,
- Connection [DN/cale]: 3,
- Operating position: Vertical/Horizontal,
- Max. liquid temperature: 35°C,
- Max. number of starts per hour: 30,
- Max. immersion depth: 150 m,
- Power cable length: 1.5 m,
- Diameter/height dimensions: 128/968 mm,
- Weight: 23.5 kg,
----------
MATERIALS
• Suction/discharge connection: AISI 304 stainless steel,
• Housing: AISI 304 stainless steel,
• Shaft and rotor: AISI 304 stainless steel,
• Impeller: AISI 304 stainless steel,
• Diffuser: AISI 304 stainless steel,
• Mechanical seal: Ceramic/SiC/NBR,
• Oil-cooled motor.
