6" SPINOX 30-2 (2.2 kW, 400 V) - multistage stainless steel submersible pump, IBO ITALY oil-filled motor
6" SPINOX with an IBO ITALY oil-filled motor is a multistage submersible pump made entirely of AISI 304 stainless steel, designed for drawing and pumping clean raw water from drilled deep wells with a minimum internal diameter of 160 mm. The pump is driven by an IOM oil-filled motor from IBO ITALY. The series includes a range of models with varying hydraulic parameters and a broad power range, allowing you to select a model to suit the needs of a specific high-capacity installation.
Who it's for
-
Farms and orchards with high water demand - the 415 l/min output can supply extensive irrigation systems for fields, orchards and greenhouse crops from a single source.
-
Managers of multi-family buildings and housing estates - a single deep well can supply utility water to several buildings or an entire community in locations without access to the municipal water network.
-
Water supply and fire protection system contractors - the increased flow rate is ideal for systems requiring large volumes of water, including hydrant systems and fire protection tanks.
-
Industrial plants and companies carrying out drainage work - drawing process water and dewatering excavations and areas with high groundwater levels.
Applications
- Drawing and pumping raw water from larger-diameter drilled deep wells before treatment.
- Water supply for multi-family buildings, housing estates and farms with high water demand.
- Supplying extensive irrigation and sprinkler systems, as well as lowering groundwater levels.
- Water supply and fire protection systems requiring increased flow rates.
Depending on the performance of the selected model, 6" SPINOX pumps with IBO ITALY oil-filled motors are suitable for supplying a single larger facility, as well as installations serving several buildings or larger-scale irrigation systems. The 6" SPINOX 30-2 submersible pump (2.2 kW, 400 V) with an IBO ITALY oil-filled motor is selected individually to suit the parameters of the specific well - its depth, diameter, and required output.
The 6" SPINOX pump does not treat water and does not certify that it is suitable for human consumption. If the water is to be used for drinking, cooking, or other household purposes, an appropriate water treatment system and water quality monitoring at the point of use must be provided.
Features, description and technical data

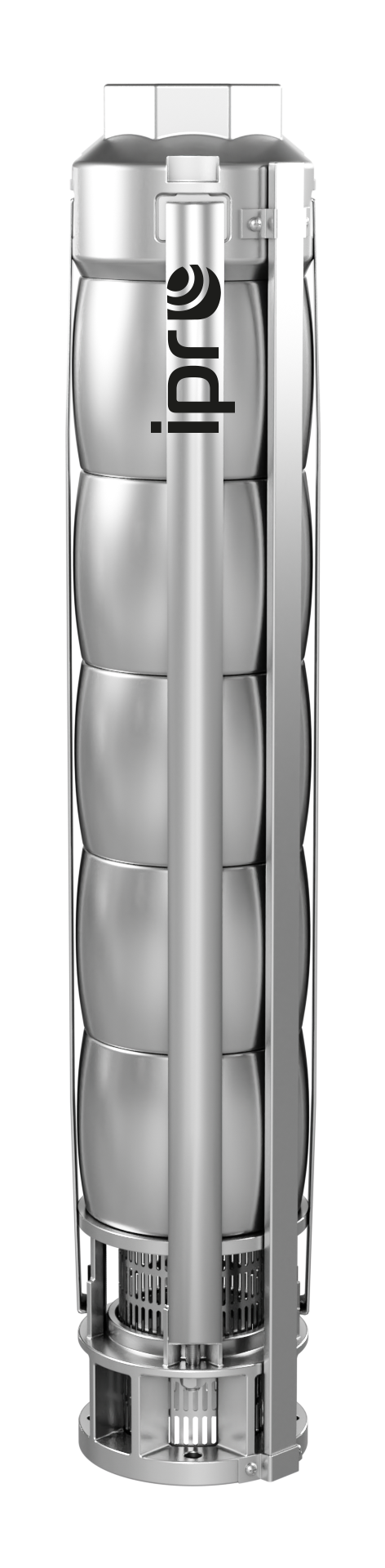

The 6" SPINOX with an IBO ITALY oil-filled motor is a multistage submersible pump whose key structural components – the suction and discharge ports, housing, shaft, impeller, and diffuser – are all made of AISI 304 stainless steel. This design provides increased wear resistance and a long service life when operating in contact with raw water, which may contain fine mineral contaminants. The mechanical seal uses a ceramic / SiC / NBR configuration. The pump is factory-fitted with a check valve to prevent water from flowing back through the discharge pipe after the pump stops.

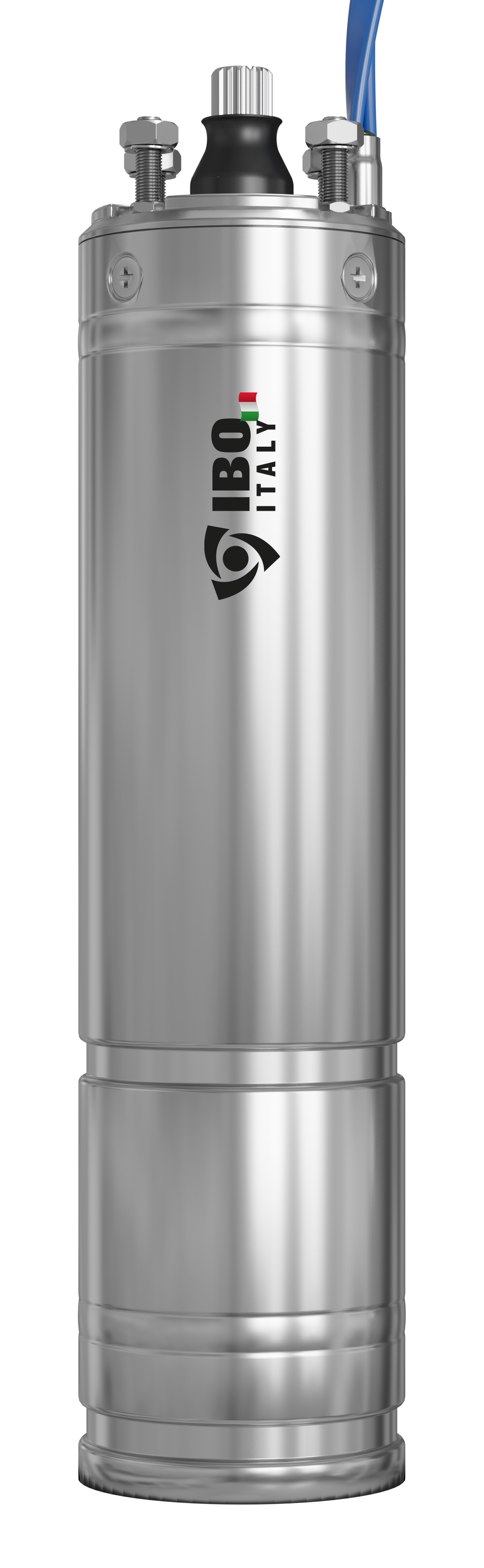

The pump is driven by an IBO ITALY IOM oil-filled motor, cooled and lubricated by oil in a sealed motor chamber. The power cable length is selected to suit the specific device variant and well depth. The pump operates continuously, in a vertical or horizontal position, at a maximum pumped liquid temperature of 35°C and insulation class F.
- Device type: multistage submersible pump
- IBO ITALY motor: IBO ITALY (IOM oil-filled motor)
- Model: 6" SPINOX 30-2
- Motor power: 2.2 kW
- Power supply: 400 V
- Motor construction: oil-filled
- Unit diameter: 131 mm (with 4" motor) / 145 mm (with 6" motor)
- Minimum well diameter: 160 mm
- Materials: suction/discharge port, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical specifications may vary by production batch. We recommend checking the device's rating plate before installation.
IPRO - 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
Dambat - a trusted manufacturer of pumps and water engineering equipment with quality certifications.
Frequently asked questions (FAQ) - 6" SPINOX submersible pump with an IBO ITALY oil-filled motor
What is the 6" SPINOX submersible pump with an IBO ITALY oil-filled motor used for?
The 6" SPINOX with an IBO ITALY oil-filled motor is a multistage submersible pump designed to draw and pump raw / untreated water from larger-diameter drilled deep wells before treatment. Applications include supplying multi-family buildings, farms, and water supply and fire protection systems.
How do I choose the right 6" SPINOX model for my well?
Model selection depends on the well's depth and diameter, as well as the installation's required capacity. The series includes several hydraulic subcategories with different maximum capacities and power ratings.
What motors are available for the 6" SPINOX submersible pump?
The 6" SPINOX hydraulic section can be paired with a 4" or 6" motor, depending on the model: a water-filled WMC motor from IPRO, an oil-filled IOM motor from IPRO, or an oil-filled motor from the Italian brand IBO Italy. The product name specifies the particular variant (motor type and diameter).
How can I protect the 6" SPINOX pump from running dry?
The pump can be used with dry-run protection that works without installing additional probes or sensors directly in the well, simplifying installation compared with solutions that require separate sensor wiring.
Where can I buy the 6" SPINOX submersible pump manufactured by Dambat?
Dambat does not sell directly. The 6" SPINOX pump is available from our business partners, plumbing wholesalers, and authorized online distributors.
What warranty terms apply to the 6" SPINOX pump with an IBO ITALY oil-filled motor?
IPRO - 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
