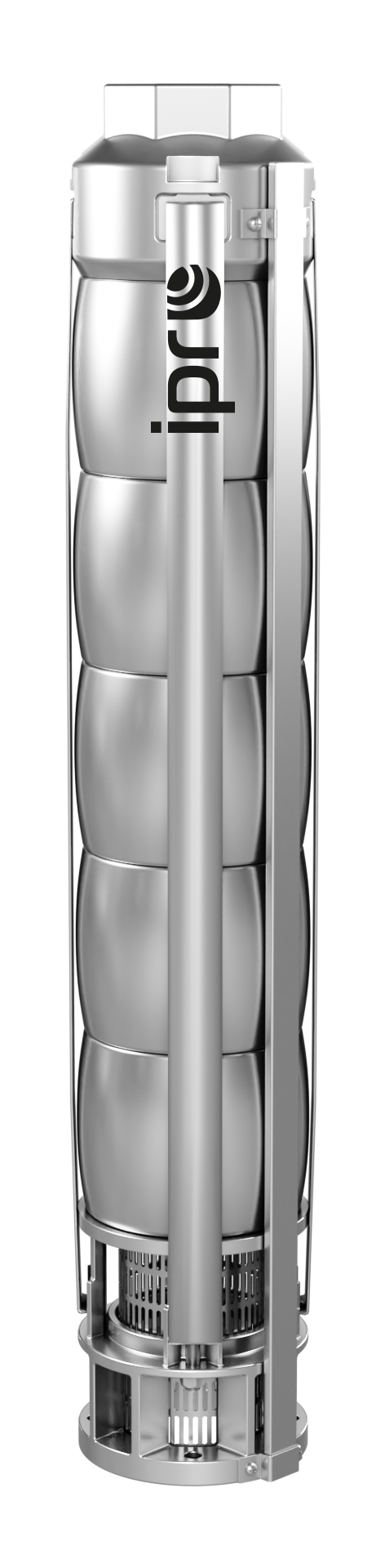

6" SPINOX 17-9 (5.5 kW, 400 V) - multistage stainless steel deep-well pump, IPRO water-filled motor
6" SPINOX with an IPRO water-filled motor is a multistage deep-well pump made entirely of AISI 304 stainless steel, designed for drawing and pumping technically clean raw water from drilled deep-well intakes with a minimum internal diameter of 160 mm. The pump is driven by an IPRO WMC water-filled motor. The series includes a range of models with varying hydraulic parameters and a wide range of power ratings, making it possible to select a model to suit the needs of a specific high-output installation.
Who it's for
-
Farms and orchards with high water demand - an output of 415 l/min makes it possible to supply extensive irrigation systems for fields, orchards and covered crops from a single intake.
-
Managers of multi-family buildings and housing estates - a single deep-well intake can supply utility water to several buildings or an entire community in locations without access to the municipal water network.
-
Water supply and fire protection system contractors - the increased flow rate is suitable for systems requiring large volumes of water, including hydrant systems and fire water tanks.
-
Industrial plants and companies carrying out drainage work - drawing technical water for processes, and draining excavations and areas with high groundwater levels.
Applications
- Drawing and pumping raw water from larger-diameter drilled deep wells before treatment.
- Supplying water to multi-family buildings, housing estates and farms with high water demand.
- Supplying extensive irrigation and sprinkler systems, and lowering groundwater levels.
- Water supply and fire protection systems requiring increased flow rates.
Depending on the output of the model selected, 6" SPINOX pumps with an IPRO water-filled motor are suitable for supplying a single, larger facility as well as installations serving several buildings or larger-scale irrigation systems. The 6" SPINOX 17-9 submersible pump (5.5 kW, 400 V) with an IPRO water-filled motor is selected individually to suit the specifications of the well in question - its depth, diameter and required output.
The 6" SPINOX pump is not a water treatment device and does not certify that the water
is safe for human consumption. If the water is to be used for drinking, cooking, or other
household purposes, an appropriate treatment system must be provided, along with
water quality monitoring at the point of use.
Features, description, and technical data
The 6" SPINOX with an IPRO water-filled motor is a multistage deep well pump whose key
structural components – suction and discharge connections, housing, shaft, impeller, and
diffuser – are all made of AISI 304 stainless steel. This design provides increased
wear resistance and a long service life when operating in contact with raw water, which may
contain fine mineral impurities. The mechanical seal uses a ceramic / SiC / NBR arrangement.
The pump is factory-fitted with a check valve to prevent water from flowing back through the
discharge pipe after the pump stops.

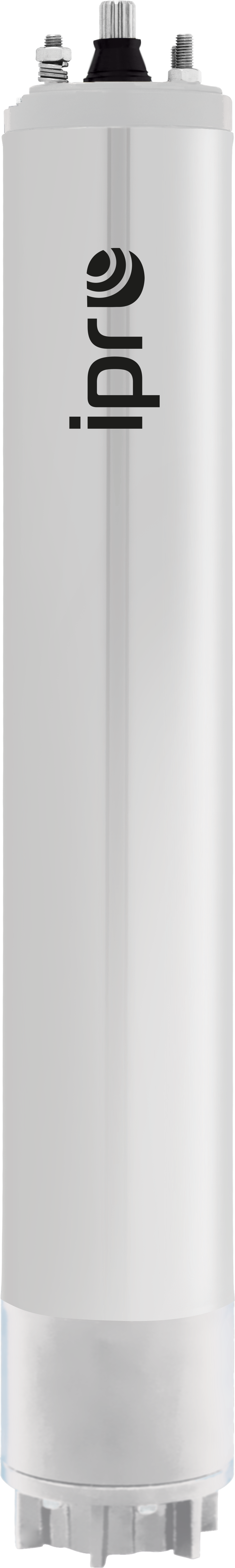

The pump is driven by an IPRO WMC water-filled motor. The power cable length is selected
for the specific device variant and well depth. The pump operates in continuous mode,
in a vertical or horizontal position, at a maximum pumped liquid temperature of 35°C
and insulation class F.
- Device type: multistage deep well pump
- Motor brand: IPRO (WMC water-filled motor)
- Model: 6" SPINOX 17-9
- Motor power: 5.5 kW
- Power supply: 400 V
- Motor design: water-filled
- Set diameter: 131 mm (with 4" motor) / 145 mm (with 6" motor)
- Minimum well diameter: 160 mm
- Materials: suction/discharge connection, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Working position: vertical / horizontal
- Built-in check valve: yes
Technical specifications may vary depending on the production batch – before installation, we recommend checking the device’s nameplate.
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service provided by Dambat.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certifications.
Frequently asked questions (FAQ) – 6" SPINOX submersible pump with an IPRO water-cooled motor
What is the 6" SPINOX submersible pump with an IPRO water-cooled motor used for?
The 6" SPINOX with an IPRO water-cooled motor is a multistage submersible pump designed to draw
and pump raw / untreated water from larger-diameter drilled deep wells before treatment – for
example, to supply multi-family buildings, farms, and water supply and fire protection systems.
How do I choose the right 6" SPINOX model for my well?
The choice of model depends on the well’s depth and diameter, as well as the required system capacity –
the series includes several hydraulic subcategories with different maximum capacities and power ratings.
Which motors are available for the 6" SPINOX submersible pump?
The 6" SPINOX hydraulic section can be paired with a 4" or 6" diameter motor, depending on the
model: an IPRO WMC water-cooled motor, an IPRO IOM oil-filled motor, or an oil-filled motor from
the Italian brand IBO Italy. The specific variant (motor type and diameter) is indicated by the
product name.
How can I protect the 6" SPINOX pump from running dry?
The pump can be used with dry-run protection that operates without
installing additional probes or sensors directly in the well, simplifying
installation compared with solutions that require separate sensor wiring.
Where can I buy the 6" SPINOX submersible pump manufactured by Dambat?
Dambat does not sell directly. The 6" SPINOX pump is available from our
sales partners, plumbing wholesalers, and authorized online distributors.
What warranty terms apply to the 6" SPINOX pump with an IPRO water-cooled motor?
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service provided by Dambat.
