Description
6" SPINOX 17-9 (5.5 kW, 400 V) - stainless steel multistage submersible pump with an IBO ITALY oil-filled motor
The 6" SPINOX with an IBO ITALY oil-filled motor is a multistage submersible pump made entirely of AISI 304 stainless steel, designed for drawing and pumping technically clean raw water from drilled deep wells with a minimum internal diameter of 160 mm. The pump is powered by an IOM oil-filled motor from IBO ITALY. The series includes a range of models with varying hydraulic parameters and a wide power range, making it possible to select a model suited to the requirements of a specific high-capacity installation.
Who it is for
- Large farms and orchards with high water demand – a capacity of 415 l/min makes it possible to supply extensive irrigation systems for fields, orchards, and covered crops from a single water intake.
- Managers of multi-family buildings and housing estates – a single deep-well intake can supply utility water to several buildings or an entire housing association in locations without access to the municipal water network.
- Water-supply and fire-protection system contractors – the increased flow rate is suitable for systems requiring large quantities of water, including hydrant systems and fire-protection tanks.
- Industrial plants and companies carrying out drainage work – for drawing technical water for processes and draining excavations and areas with high groundwater levels.
Applications
- Drawing and pumping raw water from drilled deep wells with a larger diameter before the treatment process.
- Supplying water to multi-family buildings, housing estates, and farms with high demand.
- Powering extensive irrigation and sprinkler systems and lowering groundwater levels.
- Water-supply and fire-protection systems requiring increased flow capacity.
Depending on the capacity of the selected model, 6" SPINOX pumps with an IBO ITALY oil-filled motor are suitable both for supplying a single larger facility and for installations serving several buildings or large-scale irrigation systems. The 6" SPINOX 17-9 (5.5 kW, 400 V) submersible pump with an IBO ITALY oil-filled motor is selected individually according to the parameters of the specific well – its depth, diameter, and required capacity.
The 6" SPINOX pump is not a water-treatment device and does not confirm that the water is suitable for human consumption – if the water is to be used for drinking, cooking, or other household purposes, an appropriate treatment system and water-quality monitoring at the point of collection must be provided.
Features, description, and technical data

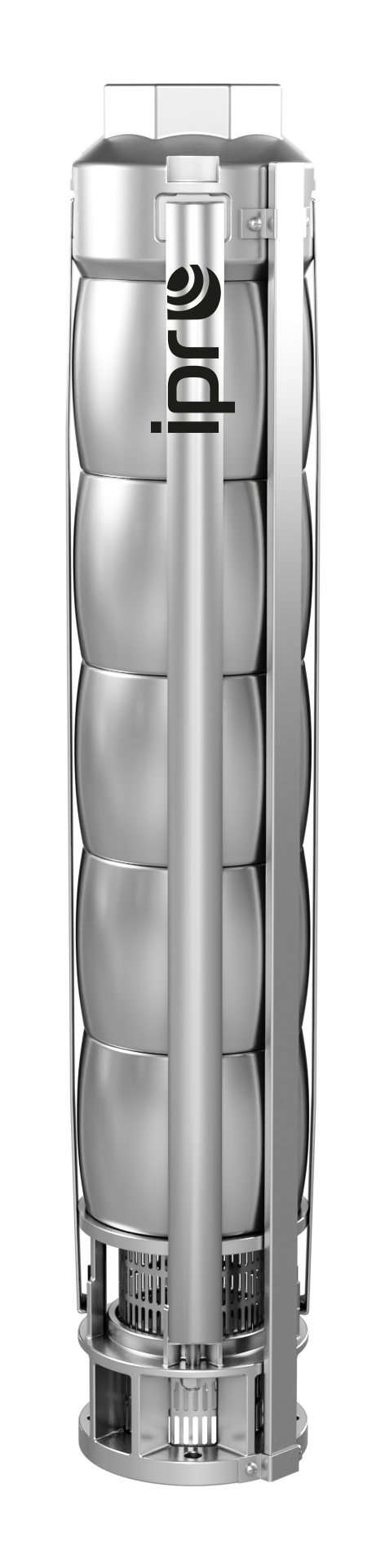

The 6" SPINOX with an IBO ITALY oil-filled motor is a multistage submersible pump in which all key structural components – the suction and discharge connections, housing, shaft, impeller, and diffuser – are made of AISI 304 stainless steel. This design provides increased resistance to wear and a long service life when operating in contact with raw water, which may contain fine mineral impurities. The mechanical seal is made in a ceramic / SiC / NBR configuration. The pump is factory-fitted with a check valve, preventing water from flowing back through the discharge pipeline after the pump stops.

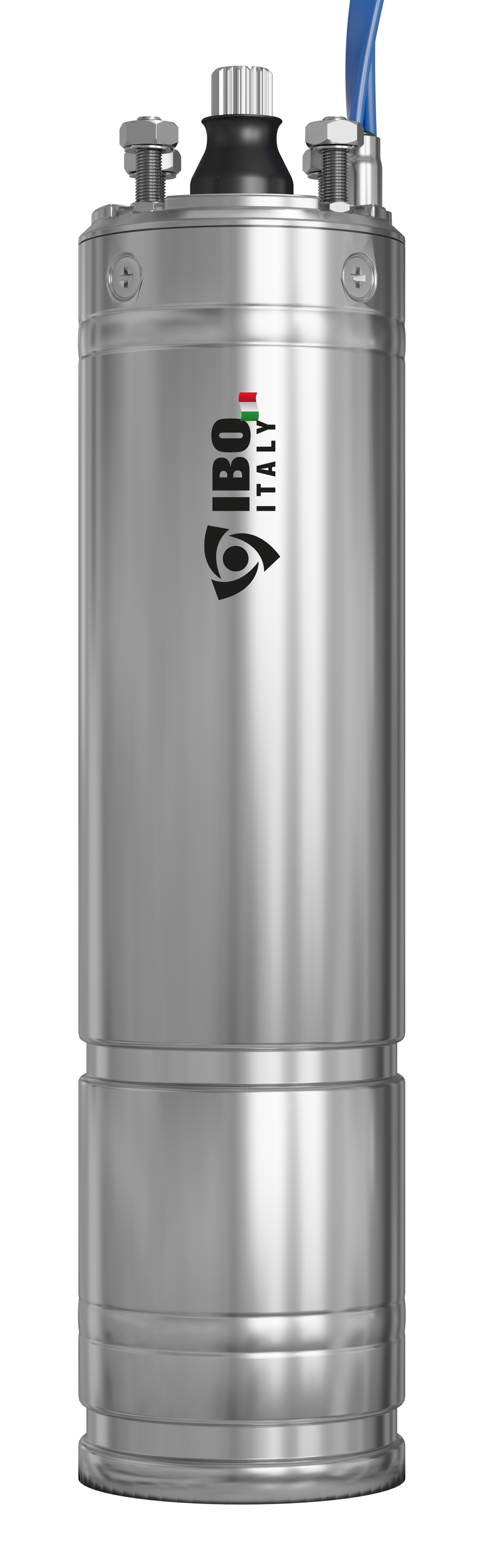

The pump is powered by an IOM oil-filled motor from IBO ITALY, cooled and lubricated by oil contained in a sealed motor chamber. The length of the power cable is selected for the specific device variant and well depth. The pump operates continuously, in a vertical or horizontal position, at a maximum pumped-liquid temperature of 35°C and with insulation class F.
- Device type: multistage submersible pump
- Motor brand: IBO ITALY (IOM oil-filled motor)
- Model: 6" SPINOX 17-9
- Motor power: 5.5 kW
- Power supply: 400 V
- Motor design: oil-filled
- Set diameter: 131 mm (with a 4" motor) / 145 mm (with a 6" motor)
- Minimum well diameter: 160 mm
- Materials: suction/discharge connection, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped-liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical data may vary depending on the production batch – before installation, we recommend checking the device nameplate.
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service is provided by Dambat.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certificates.
Frequently asked questions (FAQ) – 6" SPINOX submersible pump with an IBO ITALY oil-filled motor
What is the 6" SPINOX submersible pump with an IBO ITALY oil-filled motor used for?
The 6" SPINOX with an IBO ITALY oil-filled motor is a multistage submersible pump designed for drawing and pumping raw / untreated water from drilled deep wells with a larger diameter before the treatment process – including for supplying multi-family buildings, farms, and water-supply and fire-protection systems.
How do I select the right 6" SPINOX model for my well?
The model selection depends on the depth and diameter of the well and the required system capacity – the series includes several hydraulic subcategories with different maximum capacities and power ratings.
Which motors are available for the 6" SPINOX submersible pump?
The 6" SPINOX hydraulic unit can be combined with a 4" or 6" diameter motor, depending on the model – with a WMC water-filled motor from IPRO, an IOM oil-filled motor from IPRO, or an oil-filled motor from the Italian brand IBO Italy. The specific variant (motor type and diameter) is indicated in the product name.
How can I protect the 6" SPINOX pump against dry running?
The pump can work with a dry-run protection system that operates without the need to install additional probes or sensors directly in the well, simplifying installation compared with solutions requiring separate sensor wiring.
Where can I buy a 6" SPINOX submersible pump manufactured by Dambat?
Dambat does not sell directly. The 6" SPINOX pump is available from our trade partners, installation wholesalers, and authorized online distributors.
What warranty terms apply to the 6" SPINOX pump with an IBO ITALY oil-filled motor?
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service is provided by Dambat.
- Diameter: 6”,
- Lift: 101.0 m,
- Capacity: 415.0 l/min.,
- Power: 5.5 kW,
- Power supply: 300–400 V,
- Frequency: 50 Hz,
- Current: 12.3 A,
- Motor speed: 2850 rpm,
- Insulation class: F,
- Operating mode: continuous,
- Protection rating: IP68,
- Connection [DN/cale]: 2½,
- Operating position: Vertical/Horizontal,
- Max. liquid temperature: 35°C,
- Max. number of starts per hour: 30,
- Max. immersion depth: 300 m,
- Power cable length: 1.5 m,
- Diameter/height dimensions: 128/ mm,
- Weight: kg,
----------
MATERIALS
• Suction/discharge connection: AISI 304 stainless steel,
• Housing: AISI 304 stainless steel,
• Shaft and rotor: AISI 304 stainless steel,
• Impeller: AISI 304 stainless steel,
• Diffuser: AISI 304 stainless steel,
• Mechanical seal: Ceramic/SiC/NBR,
• Oil-cooled motor.
