6" SPINOX 17-4 (2.2 kW, 400 V) - multistage stainless steel submersible pump, IPRO oil-filled motor
The 6" SPINOX with an IPRO oil-filled motor is a multistage submersible pump made entirely of AISI 304 stainless steel, designed for drawing and pumping clean raw water from drilled deep wells with a minimum internal diameter of 160 mm. The pump is powered by an IPRO IOM oil-filled motor. The series includes a range of models with varying hydraulic parameters and a wide range of power ratings, making it possible to select a model to suit the needs of a specific high-output installation.
Who it's for
-
Farms and orchards with high water demand - an output of 415 l/min can supply extensive irrigation systems for fields, orchards and greenhouse crops from a single water source.
-
Managers of multi-family buildings and housing estates - a single deep well can supply water to several buildings or an entire community in locations without access to the municipal water network.
-
Water supply and fire protection system installers - the increased flow rate is suitable for systems requiring large volumes of water, including hydrant systems and fire water tanks.
-
Industrial plants and companies carrying out dewatering work - drawing process water and dewatering excavations and areas with high groundwater levels.
Applications
- Drawing and pumping raw water from larger-diameter drilled deep wells before treatment.
- Supplying water to multi-family buildings, housing estates and farms with high water demand.
- Supplying extensive irrigation and sprinkler systems, and lowering groundwater levels.
- Water supply and fire protection systems requiring increased flow rates.
Depending on the output of the model selected, 6" SPINOX pumps with an IPRO oil-filled motor are suitable both for supplying a single larger facility and for installations serving several buildings or larger-scale irrigation systems. The 6" SPINOX 17-4 submersible pump (2.2 kW, 400 V) with an IPRO oil-filled motor is selected individually to match the parameters of the specific well - its depth, diameter, and required output.
The 6" SPINOX pump does not treat water and does not certify
that it is suitable for human consumption – if the water is to be used for drinking,
cooking, or other household purposes, an appropriate water treatment system and
water quality monitoring at the point of use must be provided.
Features, description, and technical specifications

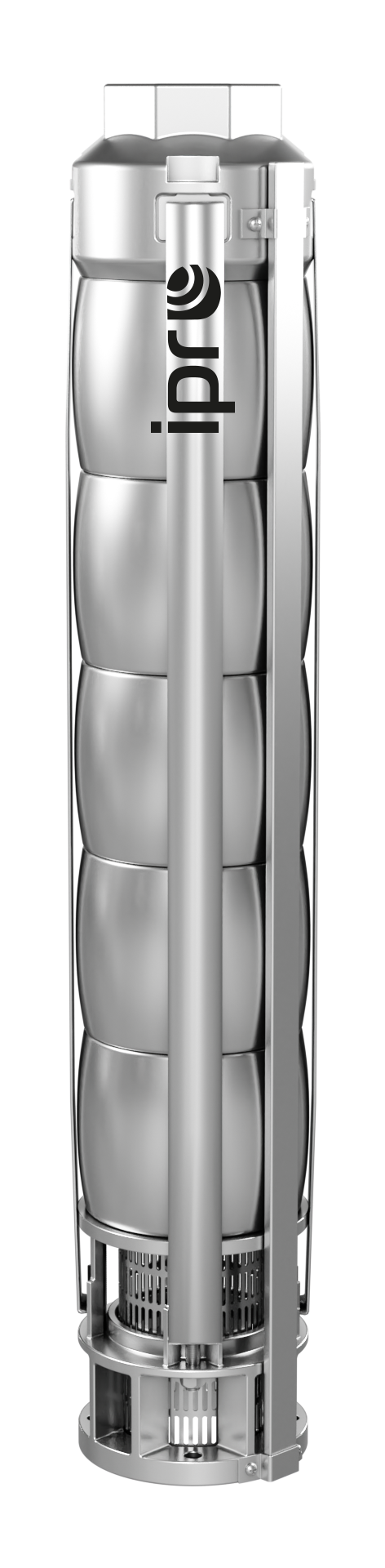

The 6" SPINOX with an IPRO oil-filled motor is a multistage submersible pump in which all
key structural components – the suction and discharge connections, housing, shaft, impeller, and
diffuser – are made of AISI 304 stainless steel. This design provides increased
wear resistance and a long service life when operating in contact with raw water, which may
contain fine mineral contaminants. The mechanical seal uses a ceramic / SiC / NBR arrangement.
The pump is factory-equipped with a check valve,
preventing water from flowing back through the discharge pipe after the pump stops.

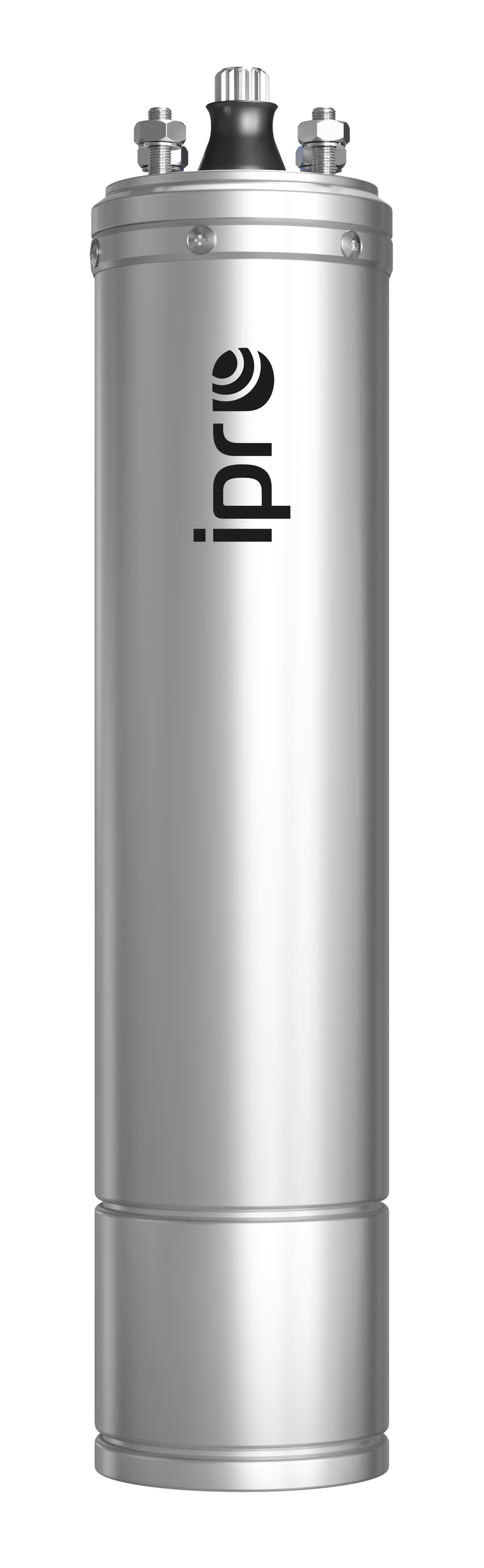

The pump is powered by an IPRO IOM oil-filled motor, cooled and lubricated by oil contained
in a sealed motor chamber. The power cable length is selected for the specific
device variant and well depth. The pump operates continuously, in a vertical
or horizontal position, at a maximum pumped liquid temperature of 35°C and insulation class F.
- Device type: multistage submersible pump
- IPRO motor: IPRO (IOM oil-filled motor)
- Model: 6" SPINOX 17-4
- Motor power: 2.2 kW
- Power supply: 400 V
- Motor design: oil-filled
- Unit diameter: 131 mm (with 4" motor) / 145 mm (with 6" motor)
- Minimum well diameter: 160 mm
- Materials: suction/discharge connection, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical data may vary depending on the production batch - before installation, we recommend checking the device's rating plate.
IPRO - 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service provided by Dambat.
Dambat - a trusted manufacturer of pumps and hydrotechnical equipment with quality certifications.
Frequently Asked Questions (FAQ) - 6" SPINOX submersible pump with an IPRO oil-filled motor
What is the 6" SPINOX submersible pump with an IPRO oil-filled motor used for?
The 6" SPINOX with an IPRO oil-filled motor is a multistage submersible pump designed to
draw and pump raw / untreated water from large-diameter drilled deep wells, before treatment - including for supplying multifamily buildings,
farms, and water supply and fire protection systems.
How do I choose the right 6" SPINOX model for my well?
The choice of model depends on the depth and diameter of the well and the required system output -
the series includes several hydraulic subcategories with different maximum outputs and power ratings.
What motors are available for the 6" SPINOX submersible pump?
The 6" SPINOX hydraulics can be paired with a 4" or 6" motor - depending on the
model - with an IPRO WMC water-filled motor, an IPRO IOM oil-filled motor, or an oil-filled
motor from the Italian brand IBO Italy. The specific variant (motor type and diameter) is indicated by
the product name.
How can I protect the 6" SPINOX pump from running dry?
The pump can be used with dry-run protection that works without
installing additional probes or sensors directly in the well, simplifying
installation compared with solutions that require separate sensor wiring.
Where can I buy a 6" SPINOX submersible pump manufactured by Dambat?
Dambat does not sell directly. The 6" SPINOX pump is available from our
sales partners, plumbing wholesalers, and authorized online distributors.
What are the warranty terms for the 6" SPINOX pump with an IPRO oil-filled motor?
IPRO - 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service provided by Dambat.
