6" SPINOX 17-2 (1.1 kW, 400 V) - multistage stainless steel submersible pump, IPRO oil-filled motor
6" SPINOX with an IPRO oil-filled motor is a multistage submersible pump made entirely of AISI 304 stainless steel, designed for drawing and pumping clean, untreated water from drilled deep wells with a minimum internal diameter of 160 mm. The pump is driven by an IPRO IOM oil-filled motor. The series includes a range of models with different hydraulic parameters and a wide power range, allowing you to select a model to suit the needs of a specific high-output installation.
Who it's for
-
Farms and orchards with high water demand – an output of 415 l/min can supply extensive irrigation systems for fields, orchards, and crops grown under cover from a single source.
-
Managers of multi-family buildings and housing estates – a single deep well can supply several buildings or an entire residential community with domestic water in locations without access to the municipal water supply.
-
Water supply and fire protection system contractors – the increased flow rate is suitable for systems requiring large volumes of water, including hydrant systems and fire water tanks.
-
Industrial plants and companies carrying out dewatering work – drawing process water and dewatering excavations and areas with high groundwater levels.
Applications
- Drawing and pumping untreated water from larger-diameter drilled deep wells before treatment.
- Supplying water to multi-family buildings, housing estates, and farms with high demand.
- Supplying extensive irrigation and sprinkler systems, and lowering groundwater levels.
- Water supply and fire protection systems requiring increased flow rates.
Depending on the capacity of the selected model, 6" SPINOX pumps with an IPRO oil-filled motor are suitable for supplying a single, larger facility as well as installations serving several buildings or larger-scale irrigation systems.
The 6" SPINOX 17-2 submersible pump (1.1 kW, 400 V) with an IPRO oil-filled motor is selected individually to match the parameters of the specific well - its depth, diameter and required capacity.
The 6" SPINOX pump is not a water treatment device and does not certify
that the water is fit for human consumption – if the water is to be used for drinking,
cooking, or other household purposes, an appropriate water treatment system and
water quality monitoring at the point of use must be provided.
Features, description, and technical data

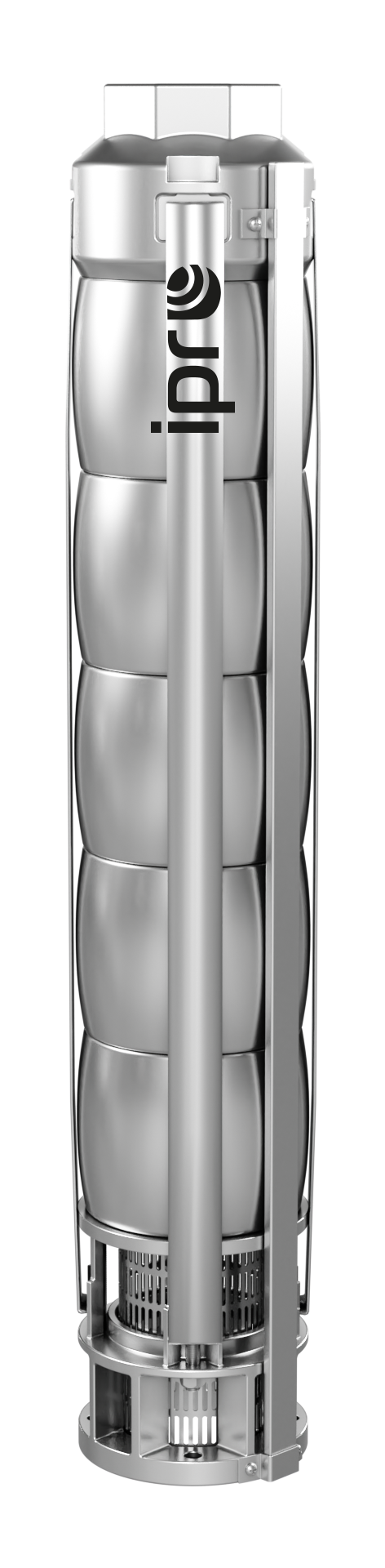

The 6" SPINOX with an IPRO oil-filled motor is a multistage submersible pump in which all
key structural components – the suction and discharge ports, housing, shaft, impeller, and
diffuser – are made of AISI 304 stainless steel. This design provides increased
wear resistance and a long service life when operating in contact with raw water, which may
contain fine mineral contaminants. The mechanical seal uses a ceramic / SiC / NBR
configuration. The pump comes factory-equipped with a check valve,
preventing water from flowing back through the discharge pipe after the pump stops.

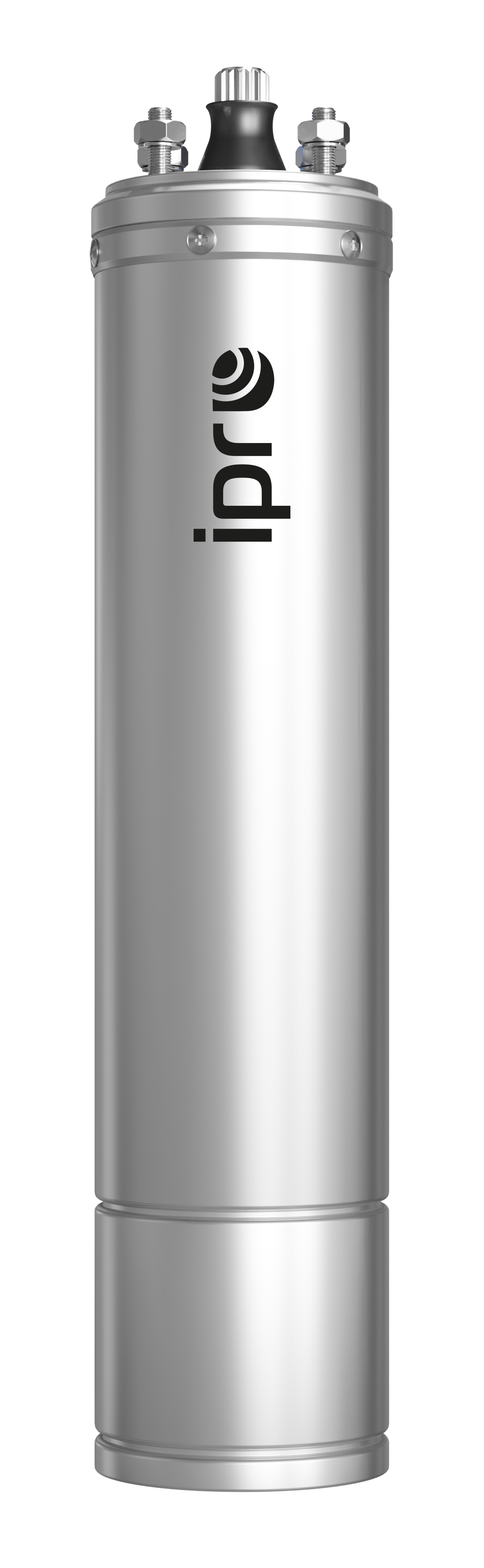

The pump is driven by an IPRO IOM oil-filled motor, cooled and lubricated by oil contained
in a sealed motor chamber. The power cable length is selected for the specific
device variant and well depth. The pump operates continuously, in a vertical
or horizontal position, at a maximum pumped liquid temperature of 35°C and with insulation class F.
- Device type: multistage submersible pump
- IPRO motor: IPRO (IOM oil-filled motor)
- Model: 6" SPINOX 17-2
- Motor power: 1.1 kW
- Power supply: 400 V
- Motor design: oil-filled
- Unit diameter: 131 mm (with 4" motor) / 145 mm (with 6" motor)
- Minimum well diameter: 160 mm
- Materials: suction/discharge ports, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Working position: vertical / horizontal
- Built-in check valve: yes
Technical data may vary depending on the production batch. We recommend checking the device nameplate before installation.
IPRO - 36 months (3 years) manufacturer's warranty. Dambat provides warranty and post-warranty service.
Dambat - a trusted manufacturer of pumps and water engineering equipment with quality certifications.
Frequently asked questions (FAQ) - 6" SPINOX submersible pump with an IPRO oil-filled motor
What is the 6" SPINOX submersible pump with an IPRO oil-filled motor used for?
The 6" SPINOX with an IPRO oil-filled motor is a multistage submersible pump designed to draw and pump raw/untreated water from larger-diameter drilled deep wells before treatment. It is suitable for supplying multi-unit buildings, farms, and water supply and fire protection systems.
How do I choose the right 6" SPINOX model for my well?
The model selection depends on the well's depth and diameter, as well as the required system capacity. The series includes several hydraulic subcategories with different maximum capacities and power ratings.
What motors are available for the 6" SPINOX submersible pump?
The 6" SPINOX hydraulics can be paired with a 4" or 6" diameter motor, depending on the model: an IPRO WMC water-filled motor, an IPRO IOM oil-filled motor, or an oil-filled motor from the Italian brand IBO Italy. The product name specifies the particular variant (motor type and diameter).
How can I protect the 6" SPINOX pump from running dry?
The pump can be used with dry-run protection that does not require additional probes or sensors to be installed directly in the well, simplifying installation compared with solutions that require separate sensor wiring.
Where can I buy the 6" SPINOX submersible pump manufactured by Dambat?
Dambat does not sell directly. The 6" SPINOX pump is available from our sales partners, plumbing wholesalers, and authorized online distributors.
What warranty terms apply to the 6" SPINOX pump with an IPRO oil-filled motor?
IPRO - 36 months (3 years) manufacturer's warranty. Dambat provides warranty and post-warranty service.
