6" SPINOX 17-13 (7.5 kW, 400 V) - multistage stainless steel submersible pump, IBO ITALY oil-filled motor
The 6" SPINOX with an IBO ITALY oil-filled motor is a multistage submersible pump made entirely of AISI 304 stainless steel, designed for drawing and pumping clean raw water from deep drilled wells with a minimum internal diameter of 160 mm. The pump is driven by an IOM oil-filled motor from IBO ITALY. The series includes a range of models with different hydraulic parameters and a wide power range, making it possible to select a model to suit the needs of a specific high-output system.
Who it's for
-
Farms and orchards with high water demand - an output of 415 l/min makes it possible to supply extensive irrigation systems for fields, orchards, and crops grown under cover from a single water source.
-
Managers of multi-family buildings and housing estates - a single deep well can supply several buildings or an entire community with domestic water in locations without access to the municipal network.
-
Water supply and fire protection system contractors - the increased flow rate is suitable for systems requiring large volumes of water, including hydrant systems and fire water tanks.
-
Industrial plants and companies carrying out dewatering work - drawing technical water for processes and dewatering excavations and areas with high groundwater levels.
Applications
- Drawing and pumping raw water from larger-diameter deep drilled wells before treatment.
- Water supply for multi-family buildings, housing estates, and farms with high demand.
- Supplying extensive irrigation and sprinkler systems, and lowering groundwater levels.
- Water supply and fire protection systems requiring increased flow rates.
WDepending on the output of the selected model, 6" SPINOX pumps with IBO ITALY oil-filled motors are suitable both for supplying a single, larger facility and for systems serving several buildings or large-scale irrigation systems. The 6" SPINOX 17-13 submersible pump (7.5 kW, 400 V) with an IBO ITALY oil-filled motor is selected individually to match the parameters of the specific well - its depth, diameter, and required output.
The 6" SPINOX pump does not treat water and does not certify that it is fit for human consumption. If the water is to be used for drinking, cooking or other domestic purposes, an appropriate water treatment system must be provided and water quality must be monitored at the point of use.
Features, description and technical data

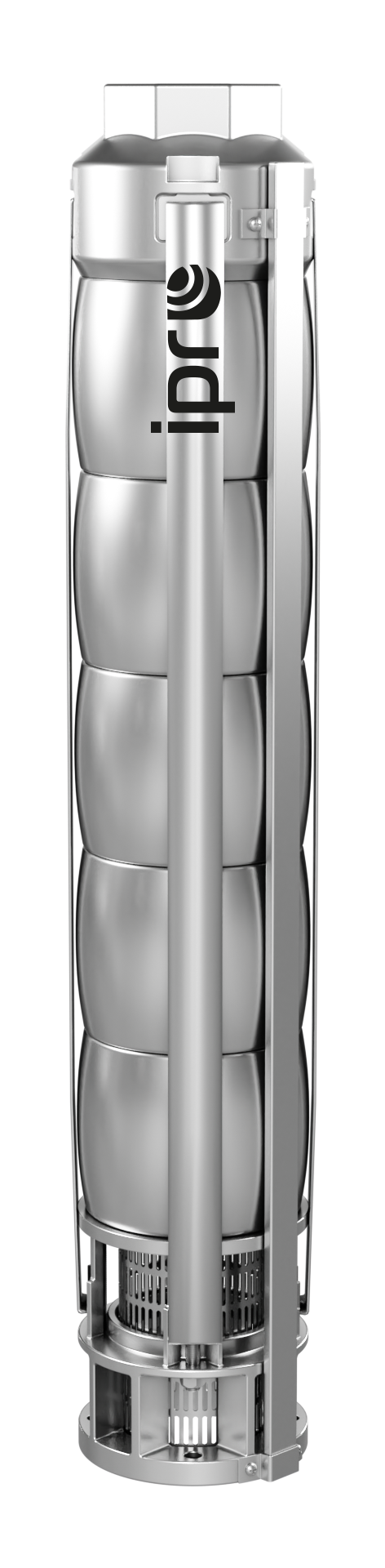

The 6" SPINOX with an IBO ITALY oil-filled motor is a multistage submersible pump in which all key structural components – the suction and discharge ports, housing, shaft, impeller and diffuser – are made of AISI 304 stainless steel. This design provides increased wear resistance and a long service life when pumping raw water, which may contain fine mineral impurities. The mechanical seal consists of ceramic / SiC / NBR. The pump is factory-equipped with a check valve to prevent water from flowing back through the discharge pipe after the pump stops.

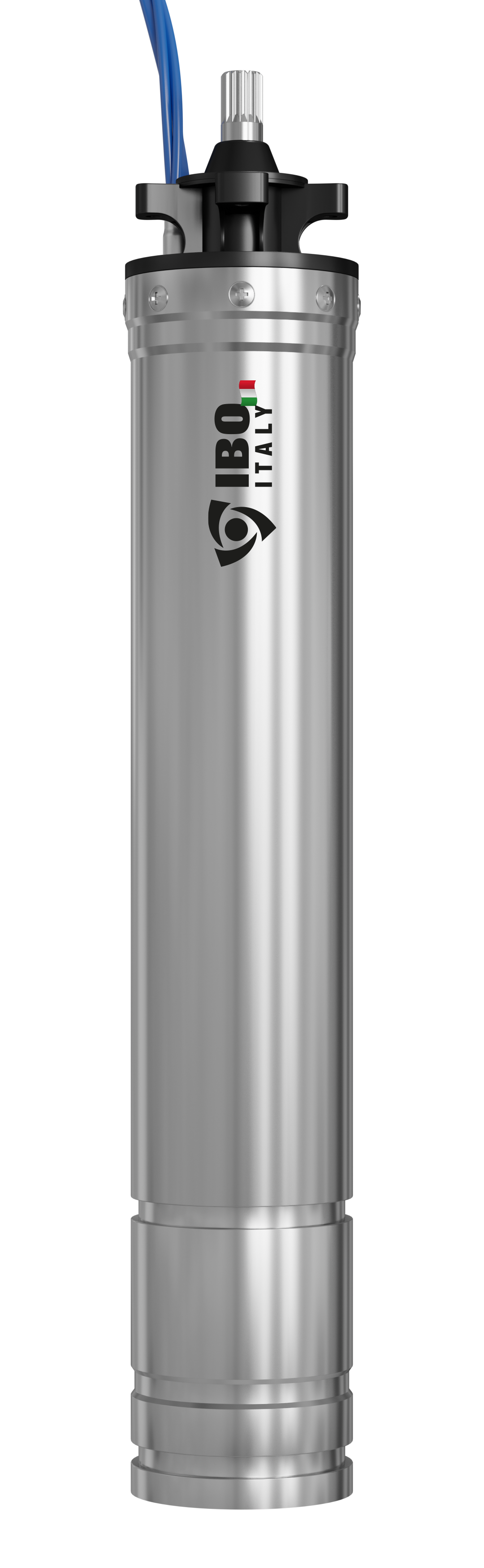

The pump is driven by an IBO ITALY IOM oil-filled motor, cooled and lubricated by oil contained in a sealed motor chamber. The power cable length is selected for the specific device variant and well depth. The pump operates continuously, in a vertical or horizontal position, at a maximum pumped liquid temperature of 35°C and insulation class F.
- Device type: multistage submersible pump
- Motor: IBO ITALY (IOM oil-filled motor)
- Model: 6" SPINOX 17-13
- Motor power: 7.5 kW
- Power supply: 400 V
- Motor design: oil-filled
- Unit diameter: 131 mm (with 4" motor) / 145 mm (with 6" motor)
- Minimum well diameter: 160 mm
- Materials: suction/discharge ports, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. temperature of pumped liquid: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical specifications may vary by production batch. We recommend checking the device's nameplate before installation.
IPRO - 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
Dambat - a trusted manufacturer of pumps and water engineering equipment with quality certifications.
Frequently asked questions (FAQ) - 6" SPINOX deep well pump with an IBO ITALY oil-filled motor
What is the 6" SPINOX deep well pump with an IBO ITALY oil-filled motor used for?
The 6" SPINOX with an IBO ITALY oil-filled motor is a multistage deep well pump designed to draw and pump raw/untreated water from larger-diameter drilled deep wells before treatment. It is suitable for supplying multi-family buildings, farms, and water supply and fire protection systems.
How do I choose the right 6" SPINOX model for my well?
The model selection depends on the well's depth and diameter and the required system capacity. The series includes several hydraulic subcategories with different maximum capacities and power ratings.
Which motors are available for the 6" SPINOX deep well pump?
The 6" SPINOX hydraulics can be paired with a 4" or 6" diameter motor, depending on the model: the IPRO WMC water-filled motor, the IPRO IOM oil-filled motor, or an oil-filled motor from the Italian brand IBO Italy. The product name specifies the exact version (motor type and diameter).
How can I protect the 6" SPINOX pump from running dry?
The pump can be used with dry-run protection that works without installing additional probes or sensors directly in the well, simplifying installation compared with solutions that require separate sensor wiring.
Where can I buy the 6" SPINOX deep well pump manufactured by Dambat?
Dambat does not sell directly. The 6" SPINOX pump is available from our retail partners, plumbing wholesalers, and authorized online distributors.
What warranty terms apply to the 6" SPINOX pump with an IBO ITALY oil-filled motor?
IPRO - 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
