6" FX6 45-12 – 400 V multistage submersible pump
The IBO ITALY 6" FX6 45-12 submersible pump is an Italian-made, multistage cast-iron pump designed to draw and pump raw water in large water supply and industrial systems, as well as fire protection and irrigation systems, before treatment. Its compact diameter for this performance class allows installation in narrower wells than larger models in the FX series, while its ability to operate horizontally offers additional installation flexibility.
Who it’s for
-
Apartment buildings and larger water supply systems – the series’ wide range of power and flow rates makes it possible to select a model for raw water intake and pumping to suit demand.
-
Farms with high water demand – higher-capacity models supply extensive irrigation systems, sprinklers and drip lines.
-
Industrial plants and fire protection systems – the cast-iron construction and wide power range are well suited to demanding continuous-duty installations.
-
Installation contractors and designers – the pump’s 153 mm diameter makes it possible to precisely match the model to wells narrower than those suited to the FX8 and FX10 series.
Applications
The 6" FX6 pump is designed to draw raw water from deep water sources for apartment buildings, farms, irrigation systems, fire protection systems, industry and drainage. The pump does not treat water; if using it for other purposes, we recommend ensuring suitable water treatment.
The pump operates in a vertical or horizontal position, at a maximum pumped-water temperature of 35°C. The 6" FX6 400 V submersible pump works with standard pressure tanks and pressure control systems selected to suit the size of the installation.
Features of the 6" FX6 pump
The 6" FX6 pump features a cast-iron construction (suction body, diffuser and check valve made of G25 cast iron) with stainless steel components: a shaft and coupling made of AISI 420, bearing housings made of AISI 316, and a filter screen, cable guard and bolts made of AISI 304. The impeller is made of cast iron or bronze, depending on the model, and the seals use PU and NBR materials.
The pump’s maximum diameter, including the cable guard, is 153 mm, allowing installation in wells with a minimum internal diameter of 180 mm.
- Pump type: multistage, submersible, cast-iron construction
- Max. pump diameter with cable guard: 153 mm
- Minimum well diameter: 180 mm
- Power supply: 400 V (three-phase)
- Insulation class: F
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical or horizontal
- Max. liquid temperature: 35°C
- Max. number of starts per hour: 30
- Rotational speed: 2850 rpm
- Materials: body, diffuser, check valve – G25 cast iron, shaft and coupling – AISI 420 stainless steel, bearing housings – AISI 316, cable guard and filter screen – AISI 304
IBO ITALY – 36-month (3-year) manufacturer's warranty. Dambat provides warranty and post-warranty service.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certifications.
Frequently asked questions (FAQ) – 6" FX6 submersible pump
What type of well does the 6" FX6 pump fit?
The 6" FX6 pump requires a well with a minimum internal diameter of 180 mm, and the maximum diameter of the pump itself, including the cable guard, is 153 mm.
How does the 6" FX6 series differ from the FX8 and FX10 series?
All three series have the same cast-iron construction, but differ in diameter and the resulting flow rate – the 6" FX6 has the smallest diameter and fits narrower wells, while the FX8 and FX10 are designed for wider boreholes and larger systems.
What sets the 6" FX6 pump apart?
The pump features a cast-iron construction with AISI 304/316/420 stainless steel components, ensuring durability during continuous operation. It can operate in both vertical and horizontal positions, and the built-in check valve limits water flowing back from the system after the pump is switched off.
How do I choose the right 6" FX6 pump model for my needs?

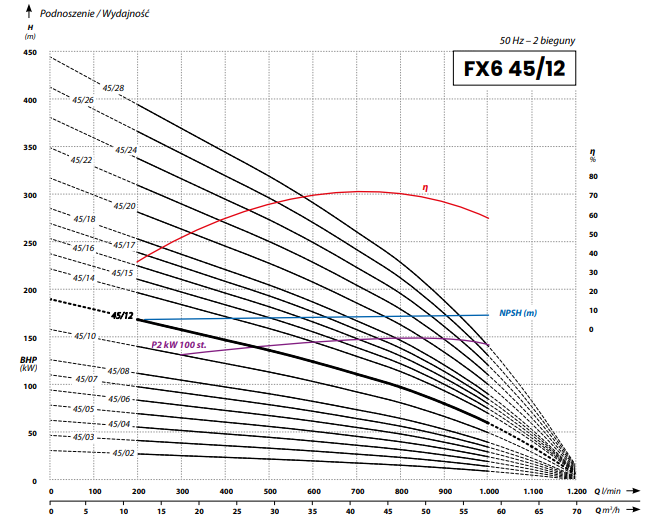

The choice of model depends on the depth of the well and the amount of water needed at one time – the series includes a wide range of variants with different power ratings, head heights, and flow rates. W case of any questions, we encourage you to contact our technical department.
Where can I buy the 6" FX6 submersible pump?
Dambat does not sell directly. The 6" FX6 pump is available from retail partners, plumbing wholesalers, and authorized online distributors.
What are the warranty terms for the 6" FX6 pump?
IBO ITALY – 36-month (3-year) manufacturer's warranty. Dambat provides warranty and post-warranty service.
