Description

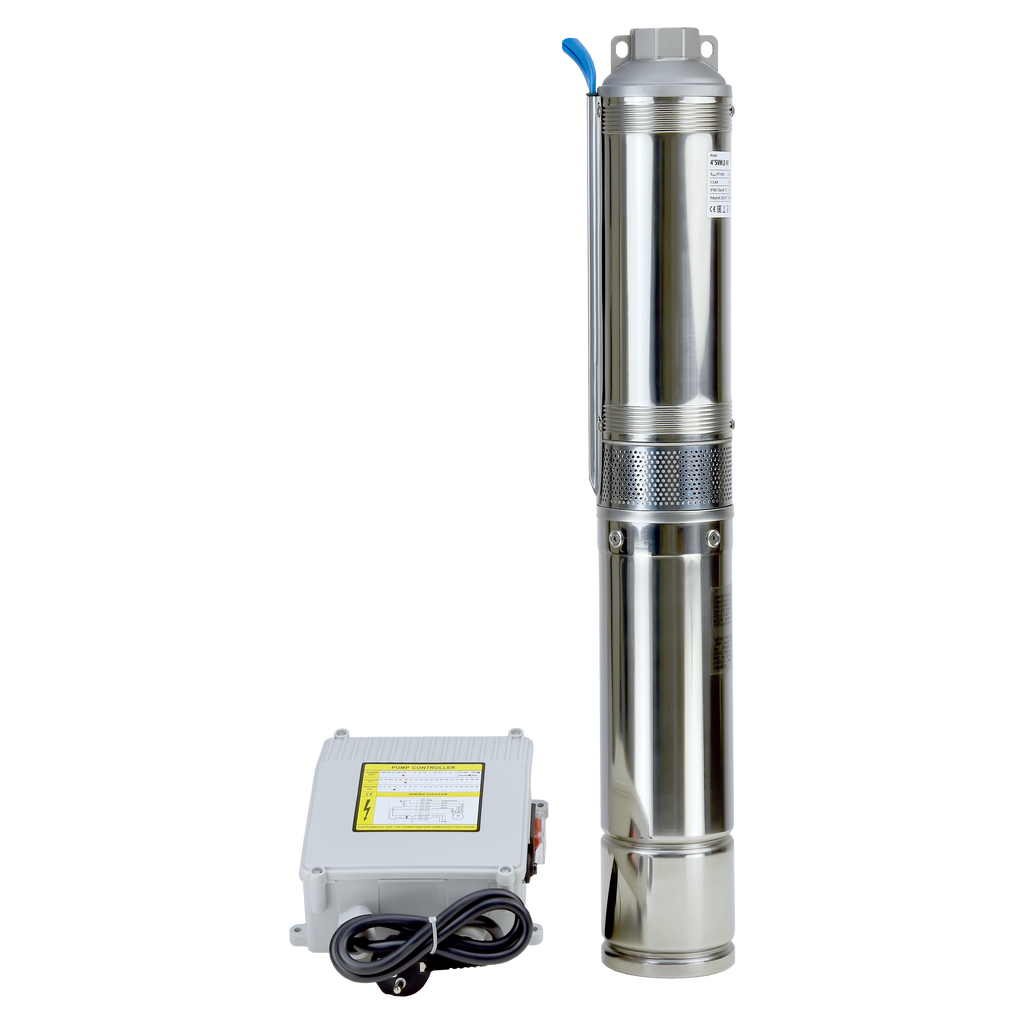

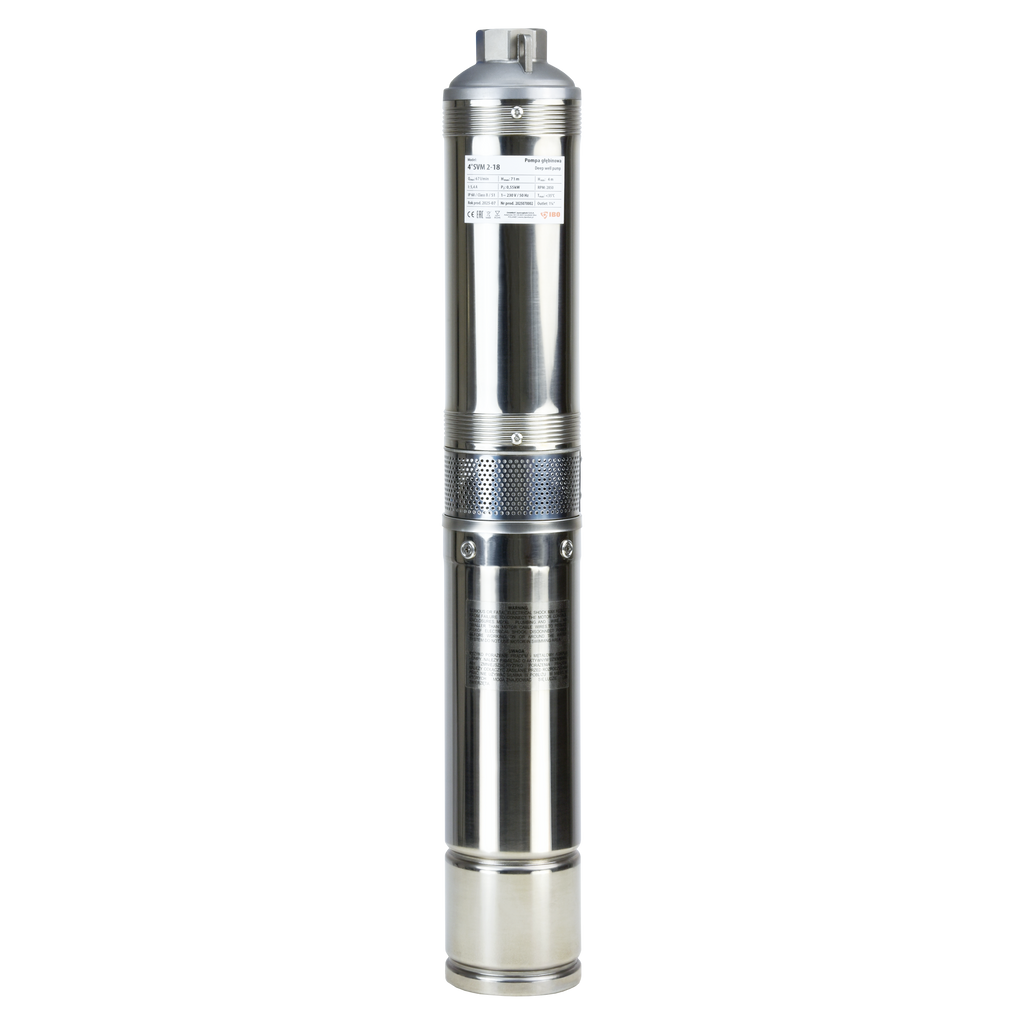

What is the 4" SVM pump?
The 4" SVM is a multistage submersible pump with a diameter of 104 mm and a 30 m cable, designed for wells from 115 mm in diameter. It offers increased resistance to sand and is used to supply water to residential buildings, farms, and irrigation systems, as well as for drainage, with a 24-month warranty. Available with IBO motors.
Who is it for?
- Owners of single- and multi-family homes who need a reliable 4" SVM submersible pump for a continuous water supply from drilled and dug wells.
- Farms looking for a durable water source for watering animals, supplying utility systems, and operating in conditions with increased sand content.
- Users of irrigation systems (sprinklers, drip lines) who require stable performance of up to 67 or 133 l/min and high head heights with a 230 V power supply.
- Installation and service companies installing submersible pumps in wells with an internal diameter of at least 115 mm and expecting a ready-to-use set with motor protection.
- Users requiring service support for whom warranty and post-warranty service, as well as overcurrent and thermal motor protection, are important.
Applications
- Supplying water to single- and multi-family homes from deep wells with a minimum diameter of 115 mm, using the 104 mm pump diameter and a vertical operating position.
- Supplying irrigation systems in gardens and crops (sprinklers, drip lines) that require high head heights from 71 to 167 m and flow rates of up to 133 l/min, depending on the 4" SVM model.
- Operation on farms and in drainage systems, where increased resistance to sand and high-quality AISI 304 and PPO polymer materials provide a longer service life in contaminated water conditions.
- Systems requiring continuous operation with a maximum of 20 starts per hour and an immersion depth of up to 100 m, while maintaining a liquid temperature of up to 35°C and an IP68 protection rating.
The 4" SVM submersible pump with a 30 m cable works well in domestic, agricultural, and irrigation installations, especially where resistance to sand and vertical pump installation are required.
Features, description, and technical data
The 4" SVM is a multistage submersible pump with a diameter of 104 mm, designed for installation in wells with a minimum internal diameter of 115 mm. It is equipped with an oil-cooled motor with thermal and overcurrent protection and a capacitor, as well as a 30 m power cable, enabling installation at considerable depths.
The hydraulic design of the 4" SVM pump has been optimized for increased resistance to sand through the use of metal suction and discharge bodies, a housing, shaft, and rotor made of AISI 304 stainless steel, impellers and diffusers made of PPO polymer, and a SiC/SiC/NBR mechanical seal, which limits wear on operating components in contaminated water conditions.
The 4" SVM submersible pump operates continuously with a single-phase 230 V power supply, insulation class B, IP68 protection rating, a maximum liquid temperature of 35°C, a maximum immersion depth of 100 m, and a motor speed of 2850 rpm. The permitted number of starts is up to 20 per hour, ensuring stable operating parameters in demanding installations.
The series includes the 4" SVM 2-18, 2-25, and 2-35 models, with a flow rate of 67 l/min and head heights of 71, 101, and 140 m, respectively. They have motor powers of 0.55, 0.75, and 1.1 kW, current consumption of 5.4–9.1 A, dimensions of 104/655–104/855 mm, and weights of 10–14.5 kg. They are intended for installations requiring high head at moderate flow rates.
The 4" SVM 5-22, 5-30, and 5-40 models offer a flow rate of 133 l/min at head heights of 88, 118, and 167 m, with powers of 1.1, 1.5, and 2.2 kW, current consumption of 9.1–16.4 A, dimensions of 104/794–104/1130 mm, and weights of 13.5–20.2 kg. This makes them suitable for more demanding irrigation systems and farms with high water requirements. All models are equipped with a 1 1/4" discharge connection.
The operating position of the 4" SVM pump is vertical. Proper installation requires suspending the pump on a rope or support pipe, selecting the appropriate discharge pipe diameter, and protecting the system against dry running and excessively frequent starts, in accordance with the recommended number of starts per hour and the electrical parameters.
Warranty and post-warranty service provides support with diagnostics and repairs. The 24-month warranty applies when the pump is used in accordance with its intended purpose, operating parameters, and the requirements concerning the quality of the pumped water, without exceeding the permitted electrical and hydraulic loads.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certificates.
FAQ
Where can I buy the 4" SVM submersible pump, and is it available?
The 4" SVM submersible pumps are available for purchase online and at physical stores and wholesalers cooperating with Dambat. For detailed availability and delivery times, it is best to contact an authorized distributor or the manufacturer's online store.
What is the warranty on the 4" SVM pump, and what is required when submitting a claim?
The 4" SVM submersible pump is covered by a 24-month warranty. When submitting a complaint, the purchase receipt details and the model and serial number shown on the rating plate are required, provided that the installation and operating conditions have been properly maintained. A claim can be submitted through our service system available on the website.
What applications is the 4" SVM submersible pump best suited for?
The 4" SVM pump is designed to supply water to homes and farms, as well as to power irrigation systems and drainage systems. It is intended for installation in wells with a minimum diameter of 115 mm and vertical operation with immersion depths of up to 100 m.
How do the individual 4" SVM models in the series differ?
The 4" SVM 2-18, 2-25, and 2-35 models offer a constant flow rate of 67 l/min with increasing head heights of 71–140 m and powers of 0.55–1.1 kW. The 5-22, 5-30, and 5-40 models provide a flow rate of 133 l/min with head heights of 88–167 m and powers of 1.1–2.2 kW, allowing the pump to be selected according to the required combination of flow rate and pressure.
How should the 4" SVM submersible pump be properly installed in a well?
The pump should be lowered vertically into a well with a diameter of at least 115 mm on a rope or support pipe, with the discharge pipe connected to the 1 1/4" connection. The correct 30 m cable length and electrical protection must be ensured, and dry running and excessively frequent starts must be avoided.
What are the key operating parameters of the 4" SVM pump?
The pump operates continuously with a 230 V power supply, insulation class B, IP68 protection rating, a maximum liquid temperature of 35°C, a maximum immersion depth of 100 m, and a rotational speed of 2850 rpm, with a limit of up to 20 starts per hour.
What materials are used in the 4" SVM pump, and how do they affect its durability?
The pump uses a metal suction and discharge body, a housing, shaft, and rotor made of AISI 304 stainless steel, impellers and diffusers made of PPO polymer, and a SiC/SiC/NBR mechanical seal. These materials increase resistance to corrosion and sand and support operation in wells with elevated levels of contaminants.
- Diameter: ,
- Lift: 71.0 m,
- Capacity: 67.0 l/min.,
- Power: 0.55 kW,
- Power supply: 1~230 V,
- Frequency: 50 Hz,
- Current: 5.4 A,
- Motor speed: 2850 rpm,
- Insulation class: B,
- Operating mode: continuous,
- Protection rating: IP68,
- Connection [DN/cale]: 1¼,
- Operating position: Vertical,
- Max. liquid temperature: 35°C,
- Max. number of starts per hour: ,
- Max. immersion depth: 40 m,
- Power cable length: 30.0 m,
- Diameter/height dimensions: 655/104 mm,
- Weight: 10.0 kg,
----------
• Suction/discharge body: metal
• Housing: AISI 304 stainless steel
• Shaft and rotor: AISI 304 stainless steel
• Impeller: PPO polymer
• Diffuser: PPO polymer
• Mechanical seal: SiC / SiC / NBR
• Motor: oil-cooled
