Description

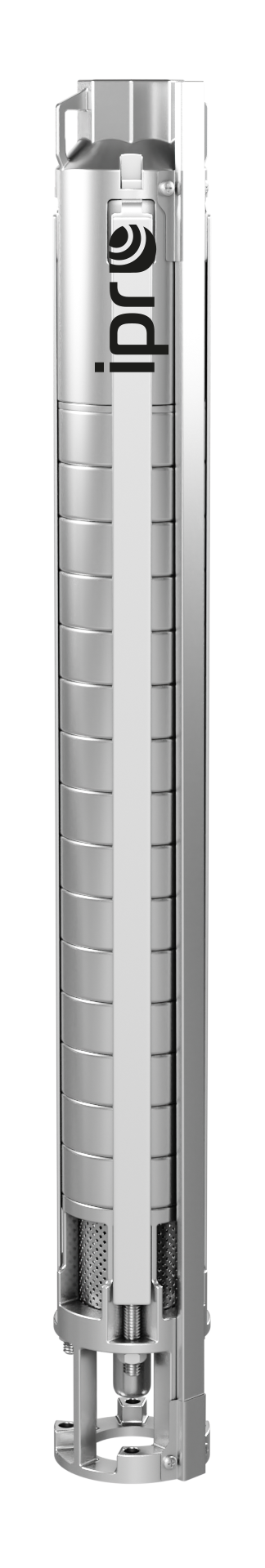

4" SPINOX 3-22 (1.5 kW, 230 V) - multistage stainless steel submersible pump with IPRO water-filled motor
4" SPINOX with an IPRO water-filled motor is a multistage submersible pump with a diameter of 98 mm, made entirely of AISI 304 stainless steel and designed for drawing and pumping clean, untreated water from drilled deep wells with a minimum internal diameter of 115 mm. The pump is powered by an IPRO WMC water-filled motor. The series includes a range of models with varying hydraulic parameters and a wide power range. This variety makes it possible to choose the ideal model for specific needs.
Who it's for
- Farms and businesses supplying systems from their own sources – field irrigation, drainage work, industrial applications — where potential contact between the water and the motor's lubricating oil is not a concern.
- Installers selecting pumps for varied wells – several hydraulic versions and 230 V / 400 V options make it easy to precisely match the model to the depth of the water intake and the power supply available on site.
- Holiday resorts and multi-family properties – seasonal or year-round supply of utility water in locations without access to the municipal water supply
- Users upgrading water systems – precise gradation of models by hydraulic parameters and dimensions makes it possible to match the unit to the required conditions.
Applications
- Drawing and pumping raw water from drilled deep wells before treatment.
- Water supply for households and farms from their own deep wells.
- Industrial applications and drainage work requiring a pump with increased resistance to continuous operation.
With the selected model’s performance in mind, 4" SPINOX pumps with IPRO water-cooled motors are ideal for shallower domestic wells supplying a single household, as well as deeper water sources or systems serving several buildings at once. The 4" SPINOX 3-22 submersible pump (1.5 kW, 230 V) with an IPRO water-cooled motor is selected individually to suit the parameters of the specific well - its depth, diameter, and required output.
The 4" SPINOX pump does not treat water and does not certify that it is suitable for human consumption. If the water is to be used for drinking, cooking, or other domestic purposes, an appropriate water treatment system must be provided, and water quality must be monitored at the point of use.
Features, description, and technical data
The 4" SPINOX with an IPRO water-filled motor is a multistage submersible pump whose key structural components – the suction and discharge bodies, housing, shaft, impeller, and diffuser – are all made of AISI 304 stainless steel. This design provides increased resistance to wear and a long service life when operating in contact with raw water, which may contain fine mineral contaminants. The mechanical seal uses a ceramic / SiC / NBR configuration. The pump comes factory-fitted with a check valve to prevent water from flowing back down the discharge pipe after the pump stops.

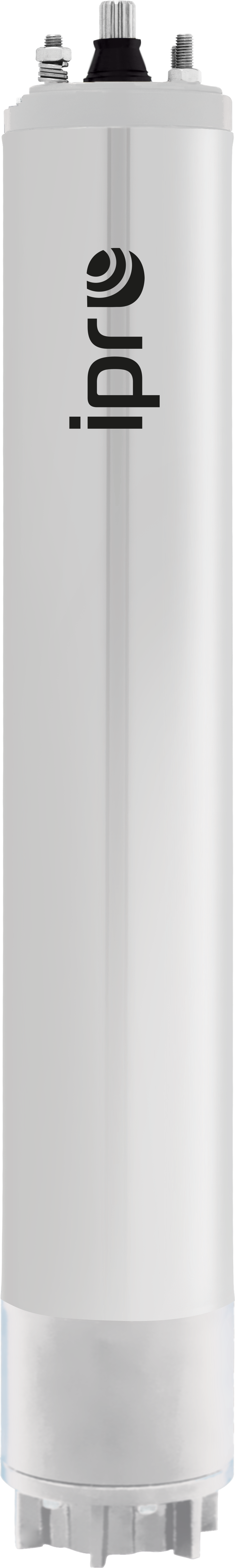

It is driven by an IPRO WMC water-filled motor. W The 230 V version of the pump works with a start box featuring built-in overcurrent protection and a capacitor. The power cable length is selected to suit the specific device variant and well depth.
The controls for the 4" SPINOX pump can be upgraded with dry-run protection that does not require installing additional probes or sensors in the well. In systems with two pumps supplying a shared system, they can also be controlled alternately. The pump operates continuously in a vertical or horizontal position, with a maximum pumped liquid temperature of 35°C and insulation class F.
- Device type: multistage submersible pump
- Motor brand: IPRO (WMC water-filled motor)
- Model: 4" SPINOX 3-22
- Motor power: 1.5 kW
- Power supply: 230 V
- Motor design: water-filled
- Start box with overcurrent protection: yes
- Pump diameter: 98 mm
- Minimum well diameter: 115 mm
- Materials: body, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical specifications may vary depending on the production batch. Before installation, we recommend checking the device’s rating plate.
IPRO – 36-month (3-year) manufacturer’s warranty. Dambat provides warranty and post-warranty service.
Dambat – a trusted manufacturer of pumps and water engineering equipment with quality certifications.
Frequently asked questions (FAQ) – 4" SPINOX deep well pump with an IPRO water-filled motor
What is the 4" SPINOX deep well pump with an IPRO water-filled motor used for?
The 4" SPINOX with an IPRO water-filled motor is a multistage deep well pump designed to draw and pump raw / untreated water from drilled deep wells before treatment, including for supplying residential systems and for agricultural and industrial applications.
How do I choose the right 4" SPINOX model for my well?
The model selection depends on the well’s depth and diameter, as well as the required system capacity. The series includes several hydraulic subcategories with different maximum capacities and power ratings.
Which motors are available for the 4" SPINOX deep well pump?
The 4" SPINOX hydraulics are available with an IPRO WMC water-filled motor, an IPRO oil-filled motor, or an oil-filled motor from the Italian brand IBO Italy. The motor option is selected individually depending on the set ordered.
How do I protect the 4" SPINOX pump from running dry?
The pump can be used with dry-run protection that works without installing additional probes or sensors directly in the well, simplifying installation compared with solutions that require separate sensor wiring.
Where can I buy the 4" SPINOX deep well pump manufactured by Dambat?
Dambat does not sell directly. The 4" SPINOX pump is available from our business partners, plumbing wholesalers, and authorized online distributors.
What warranty conditions apply to the 4" SPINOX pump with an IPRO water-filled motor?
IPRO – 36-month (3-year) manufacturer’s warranty. Dambat provides warranty and post-warranty service.
- Flow rate [l/min.]: 75.0
- Head [m]: 139.0
- Power [kW]: 1.5
- Power supply [V]: 1~230 V
- Frequency [Hz]: 50
- Current [A]: 10.3
- Motor speed (rpm): 2850
- Operating mode: continuous
- Insulation class: F
- Protection rating: IP68
- Dimensions H/W/L [mm]: 97/1104
- Max. liquid temperature: 35
- Product weight [kg]: 24.9
- Power cable length (m): 1.5
- Connection [DN/inches]: 1¼
- Installation position: Vertical/Horizontal
- Diameter [inches]: 4”
- Max. immersion depth (m): 150
- Max. number of starts (cycles/h): 30
MATERIALS
• Suction/discharge connection: AISI 304 stainless steel,
• Housing: AISI 304 stainless steel,
• Shaft and rotor: AISI 304 stainless steel,
• Impeller: AISI 304 stainless steel,
• Diffuser: AISI 304 stainless steel,
• Mechanical seal: Ceramic/SiC/NBR,
• Water-cooled motor.
Download: Karta_4_SPINOX_IPRO.pdf
