Description

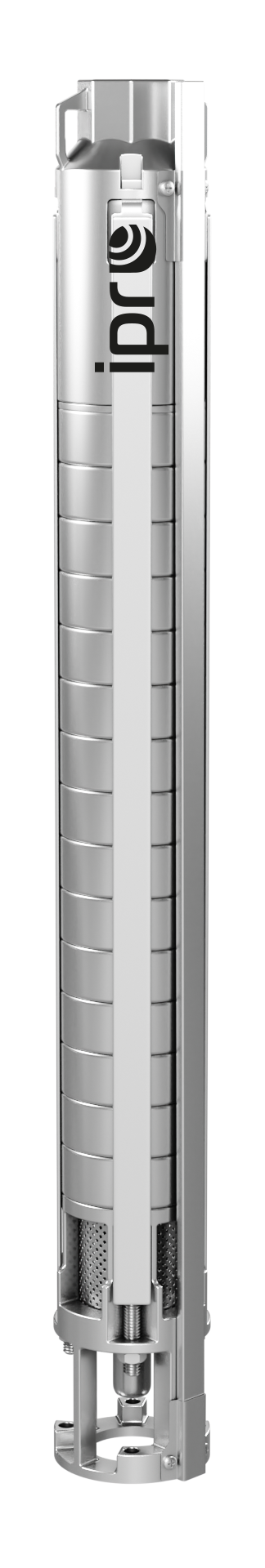

4" SPINOX 2-28 (1.5 kW, 230 V) – a multistage stainless-steel submersible pump with an IPRO water-cooled motor
The 4" SPINOX with an IPRO water-cooled motor is a multistage submersible pump with a diameter of 98 mm, made entirely of AISI 304 stainless steel, designed for drawing and pumping technically clean raw water from drilled deep-water intakes with a minimum internal diameter of 115 mm. The pump is powered by a WMC water-cooled motor the IPRO brand. The series includes a range of models with differing hydraulic parameters and a wide range of power ratings. This variety makes it possible to perfectly match the model to unique needs.
Who is it for
- Farms and companies supplying installations from their own sources – field irrigation, drainage work, industrial purposes—where potential contact between the water and the motor's lubricating oil is irrelevant.
- Installers selecting pumps for diverse wells – several hydraulic versions and 230 V / 400 V variants facilitate precise matching of the model to the intake depth and the available power supply on the property.
- Holiday resorts and multifamily buildings – seasonal or year-round supply of utility water in locations without access to the municipal water supply
- Users modernizing their water installations – precise gradation of models in terms of hydraulic parameters and dimensions makes it possible to match the device to the required conditions.
Applications
- Drawing and pumping raw water from drilled deep wells before the treatment process.
- Supplying domestic and agricultural households with water from their own deep well.
- Industrial applications and drainage work where a pump with increased resistance to continuous operation is required.
Depending on the output of the selected model, 4" SPINOX pumps with an IPRO water-cooled motor are ideal for shallower domestic wells supplying a single household, as well as in deeper wells or installations serving several buildings at the same time. The 4" SPINOX 2-28 submersible pump (1.5 kW, 230 V) with an IPRO water-cooled motor is selected individually according to the parameters of a specific well—its depth, diameter and the required output.
The 4" SPINOX pump is not a water treatment device and does not constitute confirmation of its suitability for human consumption – if the water is to be used for drinking, cooking, or other household purposes, an appropriate system must be provided water treatment and quality control at the point of use.
Features, description and technical data
4" SPINOX with an IPRO water-filled motor is a multistage submersible pump in which all key structural components – the suction and discharge body, housing, shaft, impeller, and diffuser – are made of AISI 304 stainless steel. This design ensures increased resistance for wear resistance and a long service life when operating in contact with raw water, which may contain fine mineral impurities. The mechanical seal is made in a configuration ceramic / SiC / NBR. The pump is factory-equipped with a check valve, preventing backflow of water in the discharge pipeline after the pump stops.
The drive is an IPRO WMC water-filled motor. In the 230 V version, the pump works with a start box with built-in overcurrent protection and capacitor. The cable length of the power cable is selected according to the specific device variant and well depth.
The operation of the 4" SPINOX pump can be expanded with dry-run protection which operate without the need to install additional probes or sensors in the well, and in systems with two pumps supplying a common system, alternating control is possible. The pump operates continuously, in a vertical or horizontal position, at a maximum temperature pumped liquid at 35°C and insulation class F.
- Device type: multistage submersible pump
- Motor brand: IPRO (WMC water-filled motor)
- Model: 4" SPINOX 2-28
- Motor power: 1.5 kW
- Power supply: 230 V
- Motor design: water-filled
- Start box with overcurrent protection: yes
- Pump diameter: 98 mm
- Minimum well diameter: 115 mm
- Materials: body, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Maximum pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical data may vary depending on the production batch – before installation, we recommend checking the device’s rating plate.
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service is provided by Dambat.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certifications.
Frequently Asked Questions (FAQ) – 4" SPINOX deep-well pump with an IPRO water-filled motor
What is the 4" SPINOX deep-well pump with an IPRO water-filled motor used for?
The 4" SPINOX with an IPRO water-filled motor is a multistage deep-well pump designed for drawing and pumping raw / untreated water from drilled deep wells before the treatment process – including supplying domestic installations and agricultural and industrial applications.
How do I choose the right 4" SPINOX model for my well?
Model selection depends on the well’s depth and diameter and the required system capacity – the series includes several hydraulic subcategories with different maximum capacities and power ratings.
What motors are available for the 4" SPINOX deep-well pump?
The 4" SPINOX hydraulics are available with an IPRO WMC water-filled motor, an oil-filled motor from the IPRO brand and an oil-filled motor from the Italian brand IBO Italy – the motor variant is determined individually depending on the set ordered.
How can I protect the 4" SPINOX pump from running dry?
The pump can work with dry-run protection that operates without the need to install additional probes or sensors directly in the well, simplifying installation compared with solutions requiring separate sensor wiring.
Where can I buy the 4" SPINOX deep-well pump manufactured by Dambat?
Dambat does not sell directly. The 4" SPINOX pump is available from our trade partners, installation wholesalers, and authorized distributors online.
What warranty terms apply to the 4" SPINOX pump with an IPRO water-filled motor?
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service provided by Dambat.
- Diameter: 4”,
- Lift: 167.0 m,
- Capacity: 50.0 l/min.,
- Power: 1.5 kW,
- Power supply: 1~230 V,
- Frequency: 50 Hz,
- Current: 10.3 A,
- Motor speed: 2850 rpm,
- Insulation class: F,
- Operating mode: continuous,
- Protection rating: IP68,
- Connection [DN/cale]: 1¼,
- Operating position: Vertical/Horizontal,
- Max. liquid temperature: 35°C,
- Max. number of starts per hour: 30,
- Max. immersion depth: 150 m,
- Power cable length: 1.5 m,
- Diameter/height dimensions: 97/1230 mm,
- Weight: 27.4 kg,
----------
MATERIALS
• Suction/discharge connection: AISI 304 stainless steel,
• Housing: AISI 304 stainless steel,
• Shaft and rotor: AISI 304 stainless steel,
• Impeller: AISI 304 stainless steel,
• Diffuser: AISI 304 stainless steel,
• Mechanical seal: Ceramic/SiC/NBR,
• Oil-cooled motor.
Download: Karta_4_SPINOX_IPRO.pdf
Download: GARAN_Prawny_obowiazek_zapewnienia_zgodnosci_towaru_z_umowa.pdf
