Description

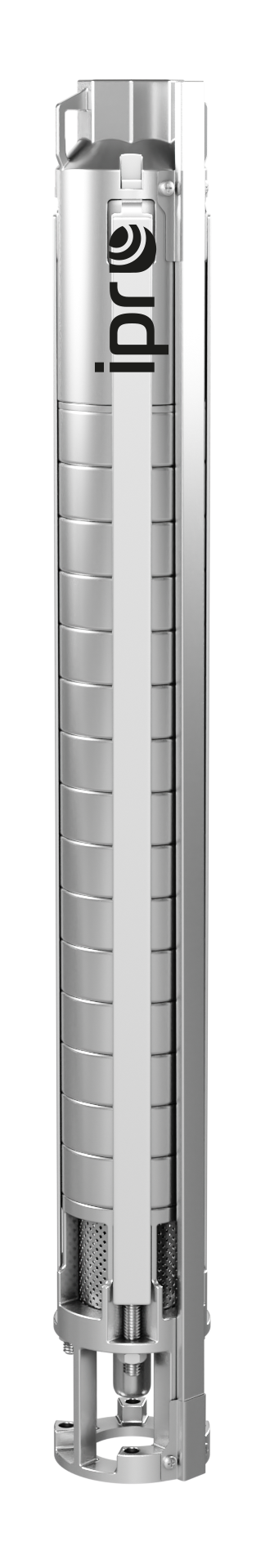

4" SPINOX 14-8 (2.2 kW, 400 V) – multistage stainless steel submersible pump with an IPRO oil-filled motor
The 4" SPINOX pump with an IPRO oil-filled motor is a multistage submersible pump with a diameter of 98 mm, made entirely of AISI 304 stainless steel, designed for drawing and pumping technically clean raw water from drilled deep-water intakes with a minimum internal diameter of 115 mm. The pump is driven by an oil-filled motor the IPRO brand. The series includes a range of models with varying hydraulic parameters and a wide range of power ratings. This variety makes it possible to select the ideal model for unique needs.
Who is it for
- Farms and companies supplying systems from their own sources – field irrigation, dewatering work, industrial purposes — where potential contact between the water and the motor's lubricating oil is irrelevant.
- Installers selecting pumps for varied wells – several hydraulic versions and 230 V / 400 V variants make it easier to precisely match the model to the intake depth and the available power supply on the property.
- Holiday resorts and multi-family buildings – seasonal or year-round supply of utility water in locations without access to the municipal water network
- Users modernizing their water systems – precise gradation of models in terms of hydraulic parameters and dimensions makes it possible to match the device to the required conditions.
Applications
- Drawing and pumping raw water from drilled deep wells before the treatment process.
- Supplying households and farms with water from their own deep well.
- Industrial applications and dewatering work where a pump with increased resistance to continuous operation is required.
Depending on the capacity of the selected model, 4" SPINOX pumps with an IPRO oil-filled motor are ideally suited to shallower domestic wells supplying a single households, as well as in deeper intakes or installations serving several buildings simultaneously. 4" SPINOX 14-8 submersible pump (2.2 kW, 400 V) with an IPRO oil-filled motor is selected individually based on the parameters of the specific well – its depth and diameter and the required capacity.
The 4" SPINOX pump is not a water treatment device and does not constitute confirmation that it is fit for human consumption – if the water is to be used for drinking, cooking, or other household purposes, an appropriate system must be provided water treatment and quality control at the point of collection.
Features, description, and technical data
The 4" SPINOX with an IPRO oil-filled motor is a multistage submersible pump in which all key structural components – the suction and discharge bodies, housing, shaft, impeller, and diffuser – are made of AISI 304 stainless steel. This design provides increased resistance resistance to wear and a long service life when operating in contact with raw water, which may contain minor mineral impurities. The mechanical seal is made in a configuration ceramic / SiC / NBR. The pump is factory-fitted with a check valve to prevent backflow in the discharge pipeline after the pump stops.
The drive is an IPRO oil-filled motor, cooled and lubricated by the oil contained in a sealed motor chamber. The power cable length is selected for the specific device variant and well depth.
- Device type: multistage submersible pump
- Motor IPRO: IPRO (oil-filled motor)
- Model: 4" SPINOX 14-8
- Motor power: 2.2 kW
- Power supply: 400 V
- Motor design: oil-filled
- Pump diameter: 98 mm
- Minimum well diameter: 115 mm
- Materials: body, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Working position: vertical / horizontal
- Built-in check valve: yes
Technical data may vary depending on the production batch—we recommend checking the device nameplate before installation.
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service is provided by Dambat.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certificates.
Frequently Asked Questions (FAQ) – 4" SPINOX submersible pump with an IPRO oil-filled motor
What is the 4" SPINOX submersible pump with an IPRO oil-filled motor used for?
The 4" SPINOX with an IPRO oil-filled motor is a multistage submersible pump designed for drawing and pumping raw/untreated water from drilled deep wells, before the water treatment process—including supplying domestic installations and agricultural agricultural and industrial applications.
How do I choose the right 4" SPINOX model for my well?
Model selection depends on the well’s depth and diameter and the required system capacity— the series includes several hydraulic subcategories with different maximum capacities and power ratings.
What motors are available for the 4" SPINOX submersible pump?
4" SPINOX hydraulics are available with an IPRO oil-filled motor, a WMC water-filled motor IPRO brand and an oil-filled motor from the Italian IPRO brand—the motor variant is selected individually depending on the ordered set.
How can I protect the 4" SPINOX pump against dry running?
The pump can work with dry-running protection that operates without the need to install additional probes or sensors directly in the well, which simplifies installation compared with solutions requiring separate sensor wiring.
Where can I buy the 4" SPINOX submersible pump manufactured by Dambat?
Dambat does not sell directly. The 4" SPINOX pump is available from our commercial partners, installation wholesalers, and authorized distributors online.
What warranty terms apply to the 4" SPINOX pump with an IPRO oil-filled motor?
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service provided by Dambat.
- Diameter: 4”,
- Lift: 52.0 m,
- Capacity: 335.0 l/min.,
- Power: 2.2 kW,
- Power supply: 300–400 V,
- Frequency: 50 Hz,
- Current: 6.0 A,
- Motor speed: 2850 rpm,
- Insulation class: F,
- Operating mode: continuous,
- Protection rating: IP68,
- Connection [DN/cale]: 2,
- Operating position: Vertical/Horizontal,
- Max. liquid temperature: 35°C,
- Max. number of starts per hour: 20,
- Max. immersion depth: 150 m,
- Power cable length: 1.5 m,
- Diameter/height dimensions: 98/1265 mm,
- Weight: 22.8 kg,
----------
MATERIALS
• Suction/discharge connection: AISI 304 stainless steel,
• Housing: AISI 304 stainless steel,
• Shaft and rotor: AISI 304 stainless steel,
• Impeller: AISI 304 stainless steel,
• Diffuser: AISI 304 stainless steel,
• Mechanical seal: Ceramic/SiC/NBR,
• Oil-cooled motor.
Download: Karta_4_SPINOX_IPRO.pdf
Download: GARAN_Prawny_obowiazek_zapewnienia_zgodnosci_towaru_z_umowa.pdf
