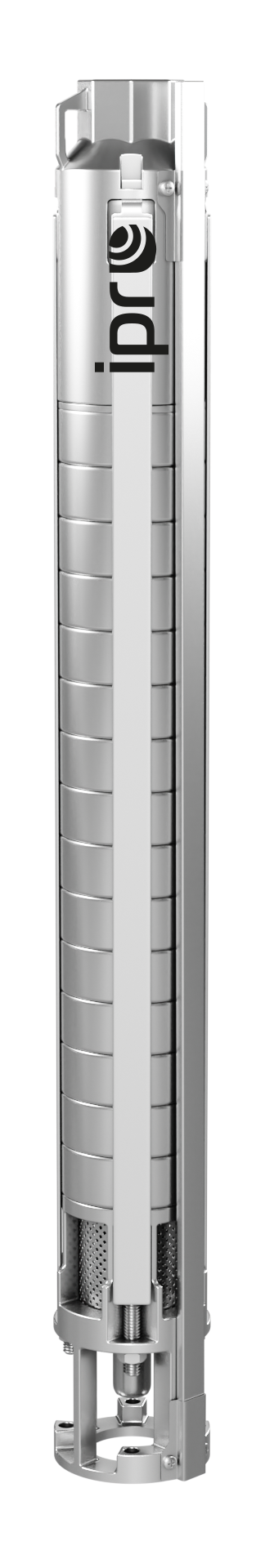

4" SPINOX 14-8 (2.2 kW, 230 V) - multistage stainless steel submersible pump, IPRO water-filled motor
The 4" SPINOX with an IPRO water-filled motor is a multistage submersible pump with a diameter of 98 mm, made entirely of AISI 304 stainless steel and designed for drawing and pumping technically clean raw water from drilled deep wells with a minimum internal diameter of 115 mm. The pump is driven by an IPRO WMC water-filled motor. The series includes a range of models with different hydraulic parameters and a wide power range. This variety makes it possible to choose the ideal model for unique needs.
Who it's for
-
Farms and businesses supplying systems from their own sources - field irrigation, drainage work, industrial applications - where possible contact between the water and the motor's lubricating oil is irrelevant.
-
Installers selecting pumps for different types of wells - several hydraulic versions and 230 V / 400 V options make it easier to precisely match the model to the intake depth and the power supply available on site.
-
Holiday resorts and multi-family properties - seasonal or year-round supply of domestic water in locations without access to the municipal water network
-
Users upgrading water systems - precise model gradation in terms of hydraulic parameters and dimensions makes it possible to match the unit to the required conditions.
Applications
- Drawing and pumping raw water from drilled deep wells before treatment.
- Water supply for households and farms from their own deep wells.
- Industrial applications and drainage work requiring a pump with increased resistance to continuous operation.
WDepending on the performance of the selected model, 4" SPINOX pumps with an IPRO water-filled motor are ideal for shallower domestic wells supplying a single household, as well as deeper water intakes or systems serving several buildings at once. The 4" SPINOX 14-8 submersible pump (2.2 kW, 230 V) with an IPRO water-filled motor is selected individually to match the parameters of a specific well - its depth, diameter and required output.
The 4" SPINOX pump is not a water treatment device and does not certify that the water is suitable for human consumption. If the water is to be used for drinking, cooking, or other household purposes, an appropriate water treatment system and water quality monitoring at the point of use must be provided.
Features, description, and technical data
The 4" SPINOX with an IPRO water-filled motor is a multistage submersible pump whose key structural components – the suction and discharge bodies, casing, shaft, impeller, and diffuser – are all made of AISI 304 stainless steel. This design provides increased wear resistance and a long service life when operating in contact with raw water, which may contain fine mineral contaminants. The mechanical seal uses a ceramic / SiC / NBR configuration. The pump is factory-equipped with a check valve to prevent water from flowing back through the discharge pipe after the pump stops.
It is powered by an IPRO WMC water-filled motor. W the 230 V version, the pump works with a start-up box featuring built-in overcurrent protection and a capacitor. The power cable length is selected to suit the specific device variant and well depth.
The operation control system for the 4" SPINOX pump can be upgraded with dry-run protection that works without installing additional probes or sensors in the well. In installations with two pumps supplying a shared system, they can also be controlled alternately. The pump can operate continuously in a vertical or horizontal position, with a maximum pumped liquid temperature of 35°C and insulation class F.
- Device type: multistage submersible pump
- Motor brand: IPRO (WMC water-filled motor)
- Model: 4" SPINOX 14-8
- Motor power: 2.2 kW
- Power supply: 230 V
- Motor design: water-filled
- Start-up box with overcurrent protection: yes
- Pump diameter: 98 mm
- Minimum well diameter: 115 mm
- Materials: body, casing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical data may vary by production batch. We recommend checking the device’s nameplate before installation.
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service provided by Dambat.
Dambat – a trusted manufacturer of pumps and water engineering equipment with quality certificates.
Frequently asked questions (FAQ) – 4" SPINOX deep well pump with an IPRO water-filled motor
What is the 4" SPINOX deep well pump with an IPRO water-filled motor used for?
The 4" SPINOX with an IPRO water-filled motor is a multistage deep well pump designed to draw and pump raw/untreated water from drilled deep wells before treatment, including for supplying domestic water systems and agricultural and industrial applications.
How do I choose the right 4" SPINOX model for my well?
The model selection depends on the well’s depth and diameter and the installation’s required capacity. The series includes several hydraulic subcategories with different maximum capacities and power ratings.
Which motors are available for the 4" SPINOX deep well pump?
The 4" SPINOX hydraulics are available with an IPRO WMC water-filled motor, an IPRO oil-filled motor, or an oil-filled motor from the Italian brand IBO Italy. The motor option is selected individually, depending on the set ordered.
How can I protect the 4" SPINOX pump from dry running?
The pump can be used with dry-run protection that does not require additional probes or sensors to be installed directly in the well, simplifying installation compared with solutions that require separate sensor wiring.
Where can I buy the 4" SPINOX deep well pump manufactured by Dambat?
Dambat does not sell directly. The 4" SPINOX pump is available from our business partners, plumbing wholesalers, and authorized online distributors.
What warranty terms apply to the 4" SPINOX pump with an IPRO water-filled motor?
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service provided by Dambat.
