Description

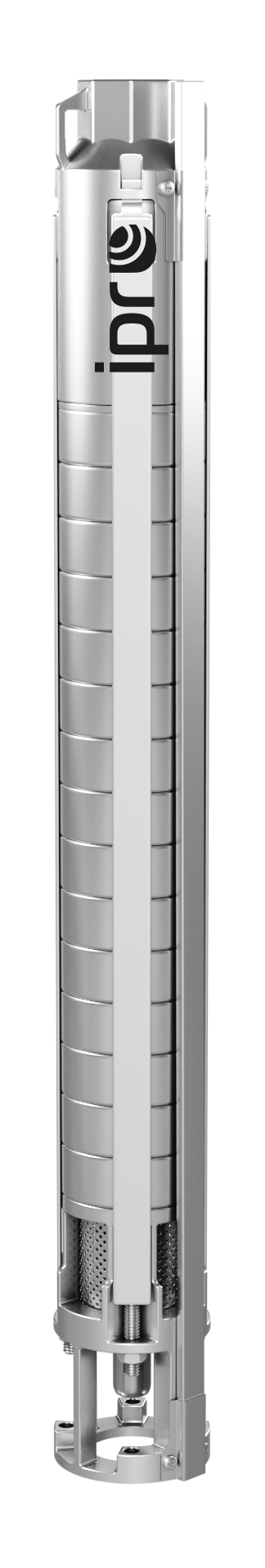

4" SPINOX 10-7 (1.5 kW, 230 V) - stainless steel multistage submersible pump, IPRO water-filled motor
4" SPINOX with an IPRO water-filled motor is a multistage submersible pump with a diameter of 98 mm, made entirely of AISI 304 stainless steel and designed for drawing and pumping technically clean raw water from drilled deep wells with a minimum internal diameter of 115 mm. The pump is powered by an IPRO WMC water-filled motor. The series includes a range of models with varying hydraulic parameters and a wide range of power ratings. This variety makes it possible to select the ideal model for specific needs.
Who it's for
- Farms and businesses supplying systems from their own sources - field irrigation, dewatering work, industrial applications - where potential contact between the water and the motor's lubricating oil is not an issue.
- Installers selecting pumps for a variety of wells - several hydraulic versions and 230 V / 400 V options make it easier to precisely match the model to the well depth and available power supply on the property.
- Holiday resorts and multi-family properties - seasonal or year-round supply of utility water in locations without access to the municipal water supply
- Users upgrading water systems - precise grading of models by hydraulic parameters and dimensions makes it possible to match the device to the required conditions.
Applications
- Drawing and pumping raw water from drilled deep wells before treatment.
- Supplying households and farms with water from their own deep well.
- Industrial applications and dewatering work where a pump with increased resistance to continuous operation is required.
Depending on the output of the selected model, 4" SPINOX pumps with an IPRO water motor are ideal for shallower household wells supplying a single household, as well as deeper water intakes or installations serving several buildings at once. The 4" SPINOX 10-7 submersible pump (1.5 kW, 230 V) with an IPRO water motor is selected individually to suit the parameters of the specific well - its depth, diameter, and required output.
The 4" SPINOX pump is not a water treatment device and does not certify that the water is suitable for human consumption. If the water is to be used for drinking, cooking or other household purposes, an appropriate treatment system and water quality monitoring at the point of use must be provided.
Features, description and technical data
The 4" SPINOX with an IPRO water-filled motor is a multistage submersible pump in which all key structural components – the suction and discharge bodies, housing, shaft, impeller and diffuser – are made of AISI 304 stainless steel. This design provides increased resistance to wear and a long service life when operating in contact with raw water, which may contain fine mineral impurities. The mechanical seal uses a ceramic / SiC / NBR arrangement. The pump is factory-fitted with a check valve to prevent water from flowing back through the discharge pipe after the pump stops.

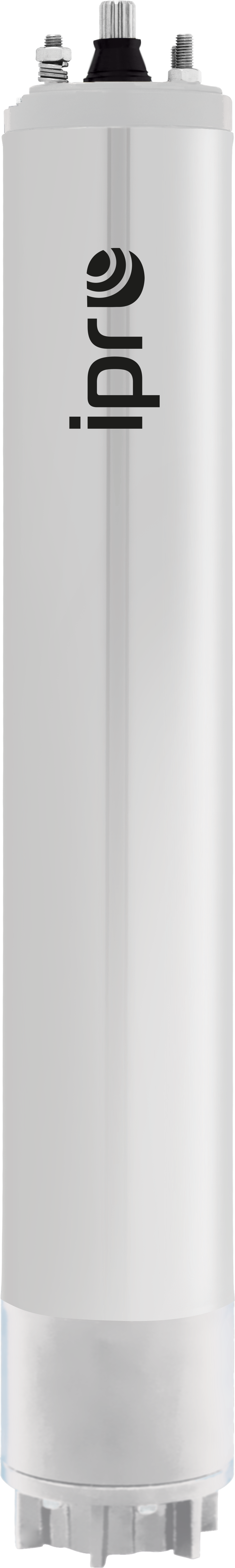

The drive is an IPRO WMC water motor. In the 230 V version, the pump is paired with a control box with a built-in overcurrent protection and capacitor. The power cable length is selected to suit the specific device variant and well depth.
The operation of the 4" SPINOX pump can be upgraded with dry-run protection that works without the need to install additional probes or sensors in the well. In systems with two pumps supplying a shared system, they can also be controlled alternately. The pump operates continuously, in a vertical or horizontal position, at a maximum pumped liquid temperature of 35°C and insulation class F.
- Device type: multistage submersible pump
- Motor brand: IPRO (WMC water-filled motor)
- Model: 4" SPINOX 10-7
- Motor power: 1.5 kW
- Power supply: 230 V
- Motor design: water-filled
- Starter box with overcurrent protection: yes
- Pump diameter: 98 mm
- Minimum well diameter: 115 mm
- Materials: body, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Maximum pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical specifications may vary by production batch – before installation, we recommend checking the device's nameplate.
IPRO – 36-month (3-year) manufacturer's warranty. Dambat provides warranty and post-warranty service.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certifications.
Frequently asked questions (FAQ) – 4" SPINOX deep well pump with an IPRO water-filled motor
What is the 4" SPINOX deep well pump with an IPRO water-filled motor used for?
The 4" SPINOX with an IPRO water-filled motor is a multistage deep well pump designed to draw and pump raw / untreated water from drilled deep wells before treatment – including for supplying domestic installations and for agricultural and industrial applications.
How do I choose the right 4" SPINOX model for my well?
The model you choose depends on the well's depth and diameter, as well as the installation's required capacity – the series includes several hydraulic subcategories with different maximum capacities and power ratings.
What motors are available for the 4" SPINOX deep well pump?
The 4" SPINOX hydraulics are available with an IPRO WMC water-filled motor, an IPRO oil-filled motor, or an oil-filled motor from the Italian brand IBO Italy – the motor option is selected individually depending on the set being ordered.
How can I protect the 4" SPINOX pump from running dry?
The pump can be used with dry-run protection that works without requiring additional probes or sensors to be installed directly in the well, simplifying installation compared with solutions that require separate sensor wiring.
Where can I buy the 4" SPINOX deep well pump manufactured by Dambat?
Dambat does not sell directly. The 4" SPINOX pump is available from our business partners, plumbing wholesalers, and authorized online distributors.
What warranty terms apply to the 4" SPINOX pump with an IPRO water-filled motor?
IPRO – 36-month (3-year) manufacturer's warranty. Dambat provides warranty and post-warranty service.
- Flow rate [l/min.]: 245.0
- Head [m]: 47.0
- Power [kW]: 1.5
- Power supply [V]: 1~230 V
- Frequency [Hz]: 50
- Current [A]: 10.3
- Motor speed (rpm): 2850
- Operating mode: continuous
- Insulation class: F
- Protection rating: IP68
- Dimensions H/W/L [mm]: 98/1095
- Max. liquid temperature: 35
- Product weight [kg]: 24.5
- Power cable length (m): 1.5
- Connection [DN/inches]: 2
- Installation position: Vertical/Horizontal
- Diameter [inches]: 4”
- Max. immersion depth (m): 150
- Max. number of starts (cycles/h): 30
MATERIALS
• Suction/discharge connection: AISI 304 stainless steel,
• Housing: AISI 304 stainless steel,
• Shaft and rotor: AISI 304 stainless steel,
• Impeller: AISI 304 stainless steel,
• Diffuser: AISI 304 stainless steel,
• Mechanical seal: Ceramic/SiC/NBR,
• Water-cooled motor.
Download: Karta_4_SPINOX_IPRO.pdf
Download: GARAN_Prawny_obowiazek_zapewnienia_zgodnosci_towaru_z_umowa.pdf
