Description

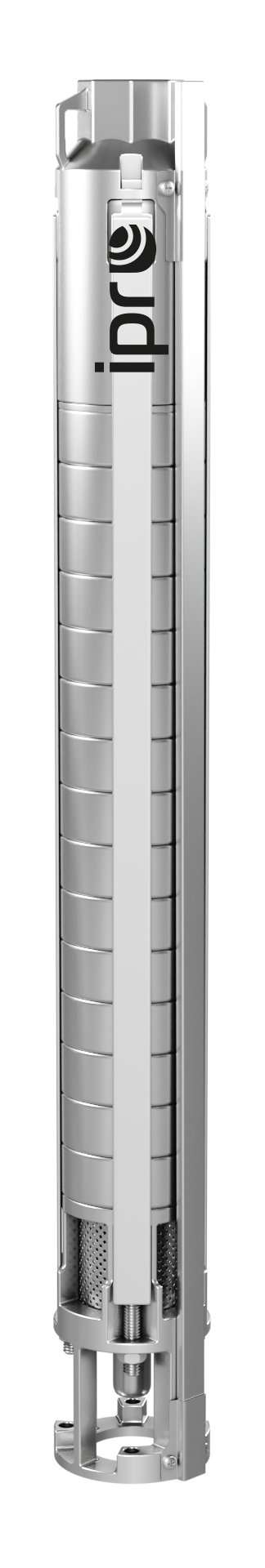

4" SPINOX 10-5 (1.1 kW, 400 V) – a multistage stainless-steel submersible pump with an IPRO water-filled motor
4" SPINOX with an IPRO water-filled motor is a multistage submersible pump with a diameter of 98 mm, made entirely of AISI 304 stainless steel, designed for drawing and pumping technically clean raw water from drilled deep-water intakes with a minimum internal diameter of 115 mm. The pump is driven by a WMC water-filled motor the IPRO brand. The series includes a range of models with different hydraulic parameters and a wide range of power ratings. This variety makes it possible to perfectly match the model to unique needs.
For whom
- Farms and companies supplying installations from their own sources – field irrigation, drainage work, industrial purposes—where any potential contact between the water and the motor’s lubricating oil is irrelevant.
- Installers selecting pumps for different types of wells – several hydraulic versions and 230 V / 400 V variants make it easier to precisely match the model to the intake depth and the available power supply on the property.
- Resorts and multi-family buildings – seasonal or year-round supply of utility water in locations without access to the municipal water supply
- Users modernizing water installations – precise gradation of models in terms of hydraulic parameters and dimensions makes it possible to match the device to the required conditions.
Applications
- Drawing and pumping raw water from drilled deep wells before the treatment process.
- Supplying households and farms with water from their own deep well.
- Industrial applications and drainage work where a pump with increased resistance to continuous operation is required.
Depending on the capacity of the selected model, 4" SPINOX pumps with an IPRO water-filled motor are ideal for shallower domestic wells supplying a single household, as well as in deeper wells or installations serving several buildings at the same time. 4" SPINOX 10-5 submersible pump (1.1 kW, 400 V) with an IPRO water-filled motor is selected individually based on the parameters of the specific well—its depth and diameter and the required output.
The 4" SPINOX pump is not a water-treatment device and does not constitute confirming its suitability for human consumption – if the water is to be used for drinking, cooking, or other household purposes, an appropriate system must be provided water treatment and water quality monitoring at the point of use.
Features, description, and technical data
The 4" SPINOX with an IPRO water-filled motor is a multistage submersible pump in which all key structural components – the suction and discharge bodies, casing, shaft, impeller, and diffuser – are made of AISI 304 stainless steel. This design ensures increased resistance for resistance to wear and long service life when operating in contact with raw water, which may contain fine mineral impurities. The mechanical seal is made in a configuration ceramic / SiC / NBR. The pump is factory-equipped with a check valve, preventing preventing water from flowing back through the discharge pipeline after the pump stops.
The drive is an IPRO WMC water-filled motor. The length of the power cable is selected according to the specific device variant and well depth.
The operation of the 4" SPINOX pump can be expanded with dry-run protection which operate without the need to install additional probes or sensors in the well, and in systems with two pumps supplying a common system, alternating control is possible. The pump operates continuously, in a vertical or horizontal position, at a maximum temperature of pumped liquid at 35°C and insulation class F.
- Device type: multistage submersible pump
- Motor brand: IPRO (WMC water-filled motor)
- Model: 4" SPINOX 10-5
- Motor power: 1.1 kW
- Power supply: 400 V
- Motor design: water-filled
- Pump diameter: 98 mm
- Minimum well diameter: 115 mm
- Materials: body, casing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical data may vary depending on the production batch – before installation, we recommend checking the device’s nameplate.
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service is provided by Dambat.
Dambat – a trusted manufacturer of pumps and water engineering equipment with quality certifications.
Frequently Asked Questions (FAQ) – 4" SPINOX submersible pump with an IPRO water-filled motor
What is the 4" SPINOX submersible pump with an IPRO water-filled motor used for?
The 4" SPINOX with an IPRO water-filled motor is a multistage submersible pump designed for drawing and pumping raw / untreated water from drilled deep wells, before the water treatment process – including supplying domestic installations and agricultural and industrial applications.
How do I choose the right 4" SPINOX model for my well?
Model selection depends on the well’s depth and diameter and the required system capacity – the series includes several hydraulic subcategories with different maximum capacities and power ratings.
What motors are available for the 4" SPINOX submersible pump?
The 4" SPINOX hydraulic section is available with an IPRO WMC water-filled motor, an oil-filled motor from the IPRO brand and an oil-filled motor from the Italian brand IBO Italy – the motor variant is selected individually depending on the ordered set.
How can I protect the 4" SPINOX pump against dry running?
The pump can work with a dry-run protection system that operates without the need to install additional probes or sensors directly in the well, simplifying installation compared with solutions requiring separate sensor wiring.
Where can I buy the 4" SPINOX submersible pump manufactured by Dambat?
Dambat does not sell directly. The 4" SPINOX pump is available from our sales partners, installation wholesalers, and authorized distributors online.
What warranty terms apply to the 4" SPINOX pump with an IPRO water-filled motor?
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service provided by Dambat.
- Diameter: 4”,
- Lift: 34.0 m,
- Capacity: 245.0 l/min.,
- Power: 1.1 kW,
- Power supply: 300–400 V,
- Frequency: 50 Hz,
- Current: 2.7 A,
- Motor speed: 2850 rpm,
- Insulation class: F,
- Operating mode: continuous,
- Protection rating: IP68,
- Connection [DN/cale]: 2,
- Operating position: Vertical/Horizontal,
- Max. liquid temperature: 35°C,
- Max. number of starts per hour: 30,
- Max. immersion depth: 150 m,
- Power cable length: 1.5 m,
- Diameter/height dimensions: 98/900 mm,
- Weight: 21.2 kg,
----------
MATERIALS
• Suction/discharge connection: AISI 304 stainless steel,
• Housing: AISI 304 stainless steel,
• Shaft and rotor: AISI 304 stainless steel,
• Impeller: AISI 304 stainless steel,
• Diffuser: AISI 304 stainless steel,
• Mechanical seal: Ceramic/SiC/NBR,
• Water-cooled motor.
Download: Karta_4_SPINOX_IPRO.pdf
