Description

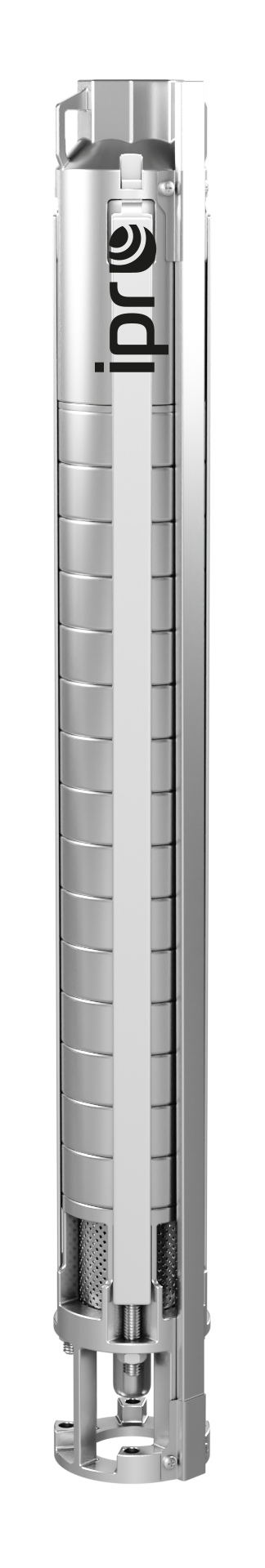

4" SPINOX 10-5 (1.1 kW, 230 V) – multistage stainless-steel submersible pump with an IPRO water-filled motor
the 4" SPINOX with an IPRO water-filled motor is a multistage submersible pump with a diameter of 98 mm, made entirely of AISI 304 stainless steel, designed for drawing and pumping technically clean raw water from drilled deep-water intakes with a minimum internal diameter of 115 mm. The pump is driven by a WMC water-filled motor the IPRO brand. The series includes a range of models with differing hydraulic parameters and a wide power range. This variety makes it possible to select the ideal model for unique needs.
Who is it for
- Farms and companies supplying installations from their own sources – field irrigation, drainage work, and industrial purposes—where potential contact between the water and the motor’s lubricating oil is irrelevant.
- Installers selecting pumps for diverse wells – several hydraulic versions and 230 V / 400 V variants make it easier to precisely match the model to the intake depth and the available power supply on the property.
- Holiday resorts and multi-family buildings – seasonal or year-round supply of utility water in locations without access to the municipal water network
- Users modernizing their water installations – precise gradation of models in terms of hydraulic parameters and dimensions makes it possible to adapt the device to the required conditions.
Applications
- Drawing and pumping raw water from drilled deep wells before the treatment process.
- Supplying domestic and agricultural households with water from their own deep well.
- Industrial applications and drainage work where a pump with increased resistance to continuous operation is required.
Depending on the capacity of the selected model, 4" SPINOX pumps with an IPRO water-filled motor are ideal for shallower domestic wells supplying a single both households and deeper water intakes or installations serving several buildings simultaneously. The 4" SPINOX 10-5 submersible pump (1.1 kW, 230 V) with an IPRO water-filled motor is selected individually according to the parameters of the specific well—its depth, diameter and the required capacity.
The 4" SPINOX pump is not a water-treatment device and does not constitute confirmation of its suitability for human consumption – if the water is to be used for drinking, cooking or other household purposes, an appropriate system must be provided water treatment and quality control at the point of use.
Features, description and technical data
The 4" SPINOX with an IPRO water-filled motor is a multistage submersible pump in which all the key structural components – the suction and discharge bodies, housing, shaft, impeller and diffuser – are made of AISI 304 stainless steel. This design provides increased resistance for wear resistance and long service life when operating in contact with raw water, which may contain fine mineral contaminants. The mechanical seal is made in a configuration ceramic / SiC / NBR. The pump is factory-equipped with a check valve, preventing preventing water from flowing back through the discharge pipeline after the pump stops.

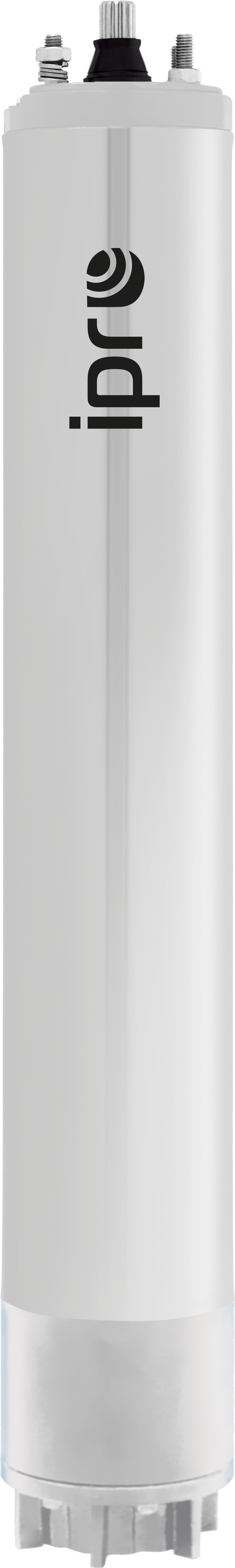

The drive is an IPRO WMC water-filled motor. In the 230 V version, the pump works with a start box start box with built-in overcurrent protection and capacitor. The cable length of the power cable is selected for the specific device variant and well depth.
The operation of the 4" SPINOX pump can be expanded with dry-run protection which operate without the need to install additional probes or sensors in the well, and in installations with two pumps supplying a common system, alternating control is possible. The pump operates continuously, in a vertical or horizontal position, at a maximum temperature of pumped liquid 35°C and insulation class F.
- Device type: multistage submersible pump
- Motor brand: IPRO (WMC water-filled motor)
- Model: 4" SPINOX 10-5
- Motor power: 1.1 kW
- Power supply: 230 V
- Motor design: water-filled
- Start box with overcurrent protection: yes
- Pump diameter: 98 mm
- Minimum well diameter: 115 mm
- Materials: body, housing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped liquid temperature: 35°C
- Degree of protection: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical data may vary depending on the production batch – before installation, we recommend checking the device’s nameplate.
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service is provided by Dambat.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certifications.
Frequently Asked Questions (FAQ) – 4" SPINOX deep-well pump with an IPRO water-filled motor
What is the 4" SPINOX deep-well pump with an IPRO water-filled motor used for?
The 4" SPINOX with an IPRO water-filled motor is a multistage deep-well pump designed for drawing and pumping raw / untreated water from drilled deep wells, before the treatment process – including supplying household installations and agricultural and industrial applications.
How do I choose the right 4" SPINOX model for my well?
Model selection depends on the well’s depth and diameter and the required system capacity – the series includes several hydraulic subcategories with different maximum capacities and power ratings.
What motors are available for the 4" SPINOX deep-well pump?
The 4" SPINOX hydraulics are available with an IPRO WMC water-filled motor, an oil-filled motor of the IPRO brand and an oil-filled motor from the Italian brand IBO Italy – the motor variant is selected individually depending on the ordered set.
How can I protect the 4" SPINOX pump against dry running?
The pump can work with a dry-run protection device that operates without the need to install additional probes or sensors directly in the well, simplifying installation compared with solutions requiring separate sensor wiring.
Where can I buy a 4" SPINOX deep-well pump manufactured by Dambat?
Dambat does not sell directly. The 4" SPINOX pump is available from our trade partners, plumbing wholesalers, and authorized distributors online.
What warranty terms apply to the 4" SPINOX pump with an IPRO water-filled motor?
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service provided by Dambat.
- Diameter: 4”,
- Lift: 34.0 m,
- Capacity: 245.0 l/min.,
- Power: 1.1 kW,
- Power supply: 1~230 V,
- Frequency: 50 Hz,
- Current: 7.5 A,
- Motor speed: 2880 rpm,
- Insulation class: F,
- Operating mode: continuous,
- Protection rating: IP68,
- Connection [DN/cale]: 2,
- Operating position: Vertical/Horizontal,
- Max. liquid temperature: 35°C,
- Max. number of starts per hour: 30,
- Max. immersion depth: 150 m,
- Power cable length: 1.5 m,
- Diameter/height dimensions: 98/900 mm,
- Weight: 22.2 kg,
----------
MATERIALS
• Suction/discharge connection: AISI 304 stainless steel,
• Housing: AISI 304 stainless steel,
• Shaft and rotor: AISI 304 stainless steel,
• Impeller: AISI 304 stainless steel,
• Diffuser: AISI 304 stainless steel,
• Mechanical seal: Ceramic/SiC/NBR,
• Water-cooled motor.
Download: Karta_4_SPINOX_IPRO.pdf
Download: GARAN_Prawny_obowiazek_zapewnienia_zgodnosci_towaru_z_umowa.pdf
