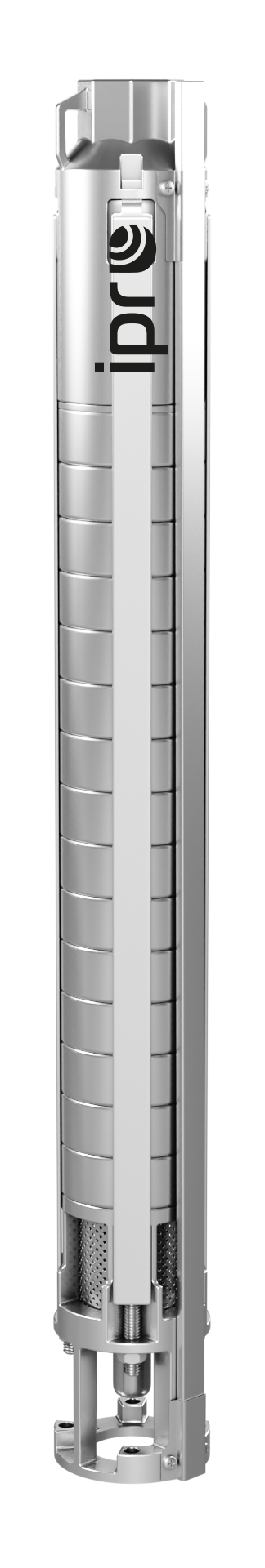

4" SPINOX 10-13 (3 kW, 400 V) - multistage stainless steel submersible pump, IPRO water-filled motor
4" SPINOX with an IPRO water-filled motor is a multistage submersible pump with a diameter of 98 mm,
made entirely of AISI 304 stainless steel and designed for drawing and pumping
technically clean raw water from drilled deep wells
with a minimum internal diameter of 115 mm. The pump is powered by an IPRO WMC
water-filled motor. The series includes a range of models with varying hydraulic
parameters and a wide range of power ratings. This variety makes it possible to choose
the ideal model for specific needs.
Who it's for
-
Farms and businesses supplying systems from their own sources – field irrigation, drainage work, industrial applications - where any contact between the water and the motor's lubricating oil is of no concern.
-
Installers selecting pumps for a variety of wells – several hydraulic versions and 230 V / 400 V options make it easy to precisely match the model to the well depth and the power supply available on site.
-
Holiday resorts and multi-family buildings – seasonal or year-round supply of domestic water in locations without access to the municipal water supply
-
Users modernizing water systems – precise gradation of models by hydraulic parameters and dimensions makes it possible to match the equipment to the required conditions.
Applications
- Drawing and pumping raw water from drilled deep wells before treatment.
- Supplying households and farms with water from their own deep well.
- Industrial applications and drainage work where a pump with increased resistance to continuous operation is required.
Depending on the performance of the selected model, 4" SPINOX pumps with an IPRO water-cooled motor are ideal for shallower domestic wells supplying a single household, as well as deeper water sources or systems serving several buildings simultaneously. The 4" SPINOX 10-13 submersible pump (3 kW, 400 V) with an IPRO water-cooled motor is selected individually to suit the specifications of the particular well - its depth, diameter, and required output.
The 4" SPINOX pump is not a water treatment device and does not certify
that the water is suitable for human consumption. If the water is to be used
for drinking, cooking or other household purposes, an appropriate treatment system
and water quality monitoring at the point of use must be provided.
Features, description and technical data
The 4" SPINOX with an IPRO water-filled motor is a multistage submersible pump in which all
key structural components – the suction and discharge body, casing, shaft, impeller and diffuser
– are made of AISI 304 stainless steel. This design provides increased resistance
to wear and a long service life when operating in contact with raw water, which may contain
fine mineral contaminants. The mechanical seal uses a ceramic / SiC / NBR configuration.
The pump is factory-equipped with a check valve to prevent water from flowing
back through the discharge pipe after the pump stops.

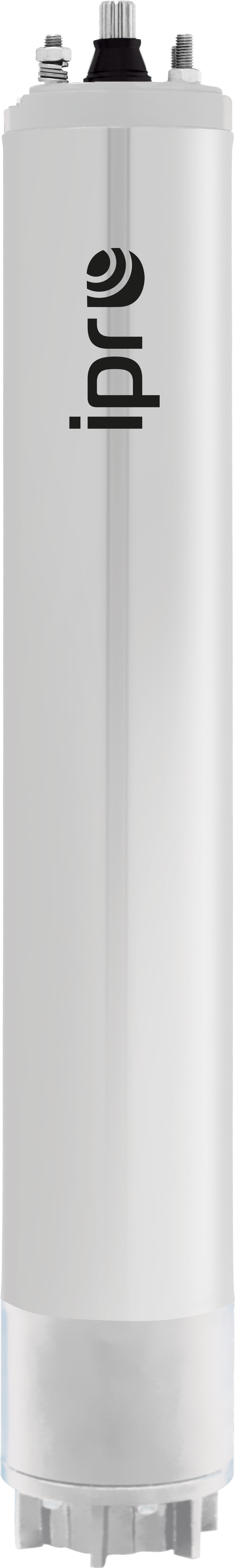

The pump is driven by an IPRO WMC water-filled motor. The power cable length is selected
for the specific device variant and well depth.
The operation of the 4" SPINOX pump can be expanded with dry-run protection
that works without installing additional probes or sensors in the well. In systems
with two pumps supplying a shared system, alternating control is also possible.
The pump operates in continuous mode, in a vertical or horizontal position, at a maximum pumped liquid temperature of
35°C and insulation class F.
- Device type: multistage submersible pump
- Motor brand: IPRO (WMC water-filled motor)
- Model: 4" SPINOX 10-13
- Motor power: 3 kW
- Power supply: 400 V
- Motor design: water-filled
- Pump diameter: 98 mm
- Minimum well diameter: 115 mm
- Materials: body, casing, shaft, impeller, diffuser – AISI 304 stainless steel; mechanical seal – ceramic / SiC / NBR
- Motor speed: 2850 rpm
- Max. pumped liquid temperature: 35°C
- Protection rating: IP68
- Operating mode: continuous
- Operating position: vertical / horizontal
- Built-in check valve: yes
Technical specifications may vary depending on the production batch - before installation, we recommend checking the device's nameplate.
IPRO - 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service provided by Dambat.
Dambat - a trusted manufacturer of pumps and hydrotechnical equipment with quality certifications.
Frequently asked questions (FAQ) - 4" SPINOX deep well pump with an IPRO water-filled motor
What is the 4" SPINOX deep well pump with an IPRO water-filled motor used for?
The 4" SPINOX with an IPRO water-filled motor is a multistage deep well pump designed to draw and pump raw / untreated water from drilled deep wells before treatment - including for supplying domestic systems and for agricultural and industrial applications.
How do I choose the right 4" SPINOX model for my well?
The model selection depends on the well depth and diameter, as well as the required system output - the series includes several hydraulic subcategories with different maximum outputs and power ratings.
What motors are available for the 4" SPINOX deep well pump?
The 4" SPINOX hydraulics are available with an IPRO WMC water-filled motor, an IPRO oil-filled motor, or an oil-filled motor from the Italian brand IBO Italy - the motor option is selected individually depending on the set ordered.
How can I protect the 4" SPINOX pump from running dry?
The pump can be used with dry-run protection that works without installing additional probes or sensors directly in the well, simplifying installation compared with solutions that require separate sensor wiring.
Where can I buy the 4" SPINOX deep well pump manufactured by Dambat?
Dambat does not sell directly. The 4" SPINOX pump is available from our business partners, plumbing wholesalers, and authorized online distributors.
What warranty terms apply to the 4" SPINOX pump with an IPRO water-filled motor?
IPRO - 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service provided by Dambat.
