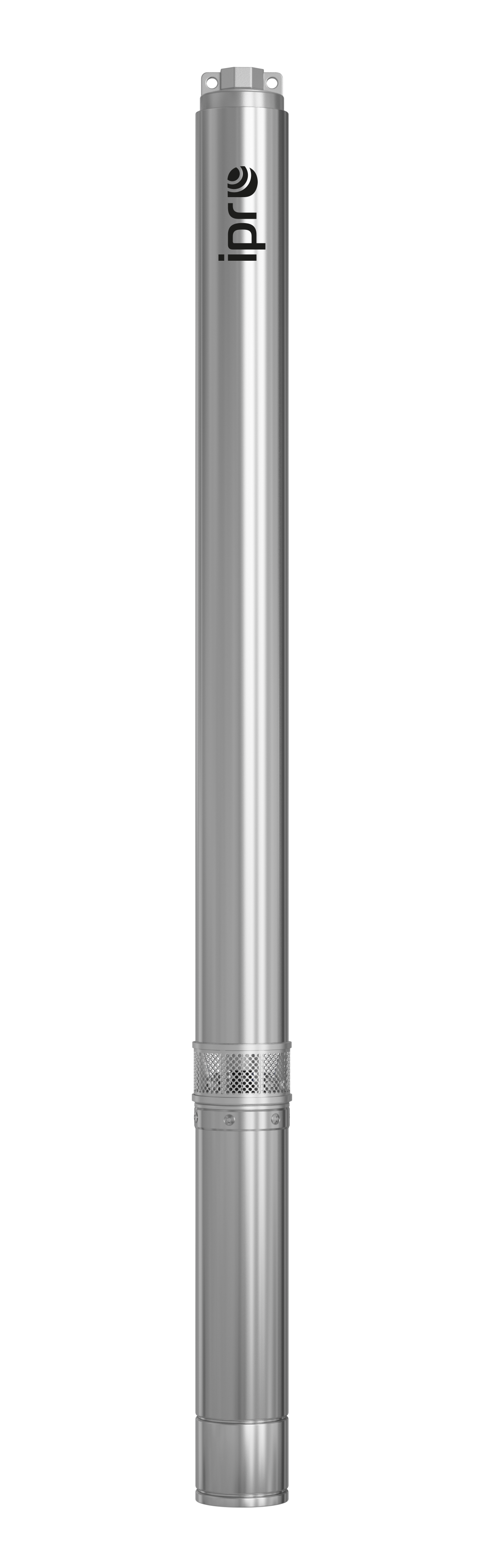

4" IPRO 6-030 – 4" submersible pump with increased sand resistance, 230 V
The 4" IPRO 6-030 by IPRO is a multistage submersible pump with a diameter of 99 mm, designed for wells with a minimum diameter of 4". Floating impellers and the selection of wear-resistant materials allow it to operate in water with a sand content of up to 5%.
Who it's for
- Households and farms with their own water intake – drawing raw water from a deep well for further treatment and use.
- Orchardists and gardeners – supplying irrigation systems for gardens, orchards and crops.
- Drainage and technical installation contractors – continuous operation in demanding conditions, including industrial and fire protection applications.
- Well owners with sandy water – floating impellers allow operation with a sand content of up to 5%.
Applications
- Pumping and delivering technically clean raw water from drilled deep-water wells before treatment.
- Irrigation of gardens, orchards and crops.
- Land drainage, industrial and fire protection applications.
In W drilled deep-water wells, the 4" IPRO 6-030 230V submersible pump is powered by a single-phase supply and comes with a starter box containing a capacitor and overcurrent protection.
The pump does not treat water and does not certify that the water is safe to drink. If the water is to be used for drinking, cooking or other household purposes, the user must ensure that it is properly treated and that its quality is monitored at the point of use.
Features of the 4" IPRO 6-030 pump – description and technical specifications
The 4" IPRO 6-030 is a multistage submersible pump with radial impellers, powered by a single-phase PRO motor. Its design, based on Italian technology and featuring floating impellers, ensures long-term operation in sandy water and stable performance in demanding water intake applications.
Water-contact components are made of corrosion- and abrasion-resistant materials: the suction and discharge ports, housing, check valve, filter screen, sliding sleeve and coupling are made of AISI 304 stainless steel; the shaft and rotor are made of AISI 420 stainless steel; and the impellers and diffusers are made of PPO polymer. Floating impellers allow the pump to operate in water with a sand content of up to 5%.
- Brand: IPRO
- Type: 4" multistage submersible pump (Ø 99 mm) with radial impellers and increased sand resistance
- Power supply: 1~230 V / 50 Hz
- Rotational speed: 2850 rpm
- Protection rating: IP68
- Insulation class: F
- Operating mode: continuous
- Minimum well diameter: 4"
- Maximum submersion depth: 150 m
- Maximum liquid temperature: 35 °C
- Maximum number of starts: 30/h
- Shaft connection: NEMA standard
- Maximum sand content: 5%
- Power cable: 1.5 m
- Equipment: start box with built-in capacitor and overcurrent protection
IPRO – 36 months (3 years) manufacturer’s warranty. Warranty and post-warranty service is provided by Dambat.
Dambat – a trusted manufacturer of pumps and water engineering equipment with quality certifications.
Frequently asked questions (FAQ) – what is the 4" IPRO 6-030 submersible pump used for?
What is the 4" IPRO 6-030 submersible pump used for?
Applications of the 4" IPRO 6-030 pump
The 4" IPRO 6-030 pump is designed to draw and pump raw water from drilled deep-water wells, supplying homes with their own water source, irrigation systems, and drainage. Water drawn from the source is intended for further treatment.
What sets the 4" IPRO series apart?
Floating impellers and sand resistance
The 4" IPRO series has floating impellers, allowing it to operate in water with a sand content of up to 5%. Parts in contact with water are made of AISI 304 and AISI 420 stainless steel and PPO polymer.
Is the 4" IPRO 6-030 pump supplied with a start box?
Start box included
Yes. The single-phase 230 V versions are supplied with a start box with a built-in capacitor and overcurrent protection, simplifying connection and protecting the motor.
What type of well is the 4" IPRO 6-030 pump suitable for?
Selecting a pump for the well diameter
The pump has a diameter of 99 mm and is designed for wells with a minimum diameter of 4". The maximum submersion depth is 150 m.
Where can I buy the IPRO 4" IPRO 6-030 pump?
Where to buy the 4" IPRO 6-030 pump
As a manufacturer, we do not sell directly. The 4" IPRO 6-030 pump is available from our trade partners, plumbing wholesalers, and authorized online distributors.
What warranty covers the 4" IPRO pump?
Manufacturer’s warranty
The 4" IPRO submersible pump is covered by a 36-month (3-year) manufacturer’s warranty. Warranty and post-warranty service is provided by Dambat.
