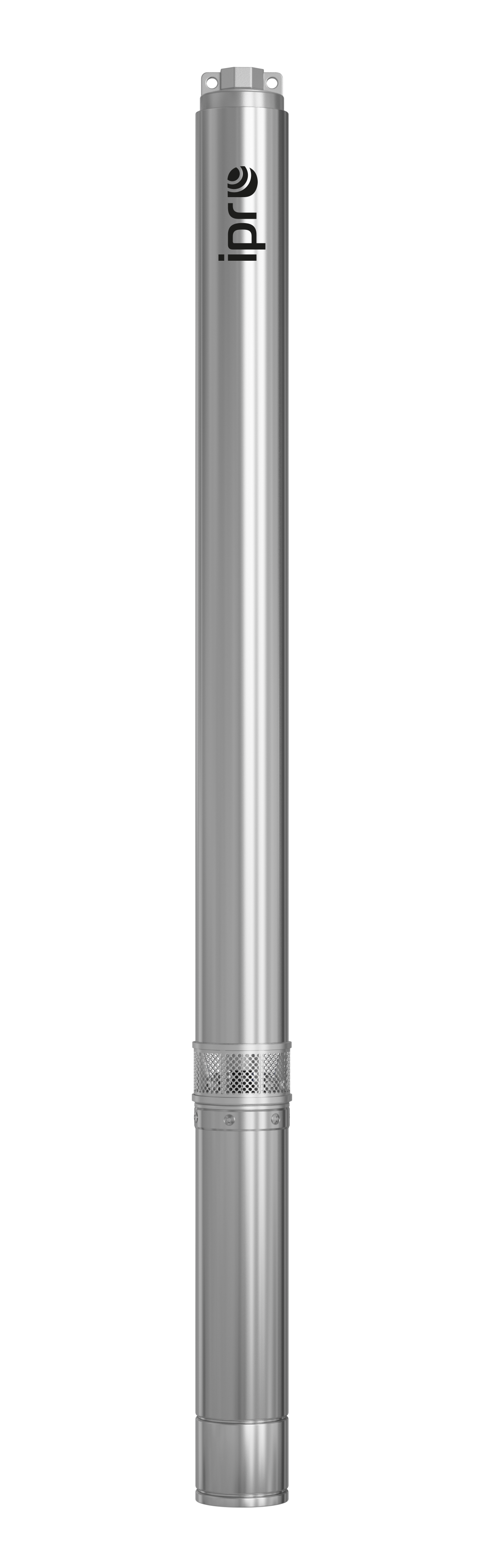

4" IPRO 4-015 – 4" submersible pump with enhanced sand resistance, 230 V
The 4" IPRO 4-015 by IPRO is a multistage submersible pump with a diameter of 99 mm, designed for wells with a minimum diameter of 4". Floating impellers and the selection of wear-resistant materials allow it to operate in water with a sand content of up to 5%.
Who it's for
- Households and farms with their own water source – drawing raw water from a deep well for further treatment and use.
- Orchardists and gardeners – supplying irrigation systems for gardens, orchards and crops.
- Drainage and technical installation contractors – continuous operation in demanding conditions, including industrial and fire protection applications.
- Users with sandy well water – floating impellers allow operation with a sand content of up to 5%.
Applications
- Drawing and pumping clean, untreated water from drilled deep wells before treatment.
- Irrigation of gardens, orchards and crops.
- Land drainage, as well as industrial and fire protection applications.
In drilled deep-water wells, the IPRO 4-015 230V 4" submersible pump is single-phase powered, and the set includes a starter box with a capacitor and overcurrent protection.
The pump is not a water treatment device and does not certify that the water is safe to drink. If the water is to be used for drinking, cooking or other household purposes, the user should ensure appropriate treatment and water quality monitoring at the point of use.
Features of the 4" IPRO 4-015 pump – description and technical specifications
The 4" IPRO 4-015 is a multistage submersible pump with radial impellers, powered by a single-phase PRO motor. Its design, based on Italian technology and featuring floating impellers, ensures long-lasting operation in sandy water and stable performance in demanding wells.
Water-contacting components are made of corrosion- and abrasion-resistant materials: the suction and discharge ports, housing, check valve, filter screen, sliding sleeve and coupling are made of AISI 304 stainless steel; the shaft and rotor are made of AISI 420 stainless steel; and the impellers and diffusers are made of PPO polymer. Floating impellers allow the pump to operate in water with a sand content of up to 5%.
- Brand: IPRO
- Type: 4" multistage submersible pump (Ø 99 mm) with radial impellers, enhanced sand resistance
- Power supply: 1~230 V / 50 Hz
- Rotational speed: 2850 rpm
- Degree of protection: IP68
- Insulation class: F
- Operating mode: continuous
- Minimum well diameter: 4"
- Maximum submersion depth: 150 m
- Maximum liquid temperature: 35 °C
- Maximum number of starts: 30/h
- Shaft connection: NEMA standard
- Maximum sand content: 5%
- Power cable: 1.5 m
- Equipment: starter box with a built-in capacitor and overcurrent protection
IPRO – 36-month (3-year) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
Dambat – a trusted manufacturer of pumps and water engineering equipment with quality certifications.
Frequently asked questions (FAQ) – what is the 4" IPRO 4-015 submersible pump used for?
What is the 4" IPRO 4-015 submersible pump used for?
Applications of the 4" IPRO 4-015 pump
The 4" IPRO 4-015 submersible pump is used to draw and pump raw water from drilled deep wells—for supplying homes with their own water source, irrigation, and drainage. Water drawn from the source is intended for further treatment.
What makes the 4" IPRO series stand out?
Floating impellers and sand resistance
The 4" IPRO series has floating impellers that allow it to operate in water with a sand content of up to 5%. Parts in contact with water are made of AISI 304 and AISI 420 stainless steel and PPO polymer.
Does the 4" IPRO 4-015 pump come with a starter box?
Starter box included
Yes. The single-phase 230 V versions are supplied with a starter box with a built-in capacitor and overcurrent protection, making connection easier and protecting the motor.
What well is the 4" IPRO 4-015 pump suitable for?
Choosing the right pump for your well diameter
The pump has a diameter of 99 mm and is designed for wells with a minimum diameter of 4". The maximum submersion depth is 150 m.
Where can I buy the 4" IPRO 4-015 pump by IPRO?
Where to buy the 4" IPRO 4-015 pump
As a manufacturer, we do not sell directly. The 4" IPRO 4-015 pump is available from our sales partners, plumbing wholesalers, and authorized online distributors.
What warranty covers the 4" IPRO pump?
Manufacturer's warranty
The 4" IPRO submersible pump comes with a 36-month (3-year) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
