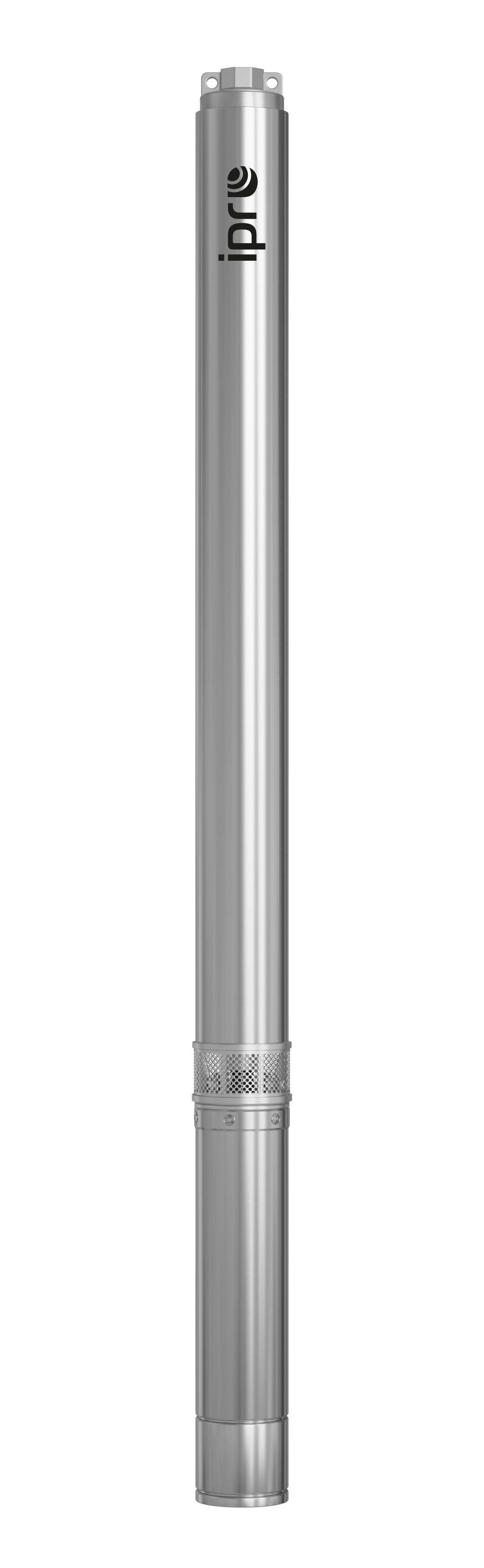

4" IPRO 16-075 – 4" submersible pump with increased sand resistance, 400 V
The 4" IPRO 16-075 by IPRO is a multistage, three-phase submersible pump with a diameter of 99 mm, designed for wells with a minimum diameter of 4". Floating impellers and the selection of wear-resistant materials allow it to operate in water with a sand content of up to 5%.
Who is it for
- Households and farms with their own water intake – pumping raw water from a deep well for further treatment and use.
- Fruit growers and gardeners – supplying irrigation systems for gardens, orchards, and crops.
- Drainage and technical installation contractors – continuous operation in demanding conditions, including industrial and firefighting applications.
- Well owners with sandy water – floating impellers allow operation with a sand content of up to 5%.
Applications
- Pumping and pressurizing technically clean raw water from drilled deep wells before the treatment process.
- Irrigation of gardens, orchards, and agricultural crops.
- Land drainage, industrial, and firefighting applications.
In drilled deep wells, the 4" IPRO 16-075 400V submersible pump is powered by three-phase electricity, which allows lower current consumption per phase at the same motor power.
The pump is not a water treatment device and does not certify that the water is suitable for consumption. If the water is to be used for drinking, cooking, or other household purposes, the user should ensure appropriate treatment and water quality monitoring at the point of collection.
Features of the 4" IPRO 16-075 Pump – Description and Technical Data
The 4" IPRO 16-075 is a multistage submersible pump with radial impellers, driven by a three-phase PRO motor. Its design, based on Italian technology and featuring floating impellers, ensures long-lasting operation in sandy water and stable performance in demanding water intakes.
Components that come into contact with water are made of materials resistant to corrosion and abrasion: the suction and discharge nozzles, housing, check valve, filter screen, sliding bushing, and coupling are made of AISI 304 stainless steel; the shaft and rotor are made of AISI 420 stainless steel; and the impellers and diffusers are made of PPO polymer. Floating impellers allow operation in water with a sand content of up to 5%.
- Brand: IPRO
- Type: multistage 4" submersible pump (Ø 99 mm) with radial impellers and increased sand resistance
- Power supply: 3~400 V / 50 Hz
- Rotational speed: 2850 rpm
- Protection rating: IP68
- Insulation class: F
- Operating mode: continuous
- Minimum well diameter: 4"
- Maximum immersion depth: 150 m
- Maximum liquid temperature: 35 °C
- Maximum number of starts: 30/h
- Shaft connection: NEMA standard
- Maximum sand content: 5%
- Power cable: 1.5 m
IPRO—36 months (3 years) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
Dambat—a trusted manufacturer of pumps and hydrotechnical equipment with quality certificates.
Frequently asked questions (FAQ)—what is the 4" IPRO 16-075 submersible pump used for?
What is the 4" IPRO 16-075 submersible pump used for?
Application of the 4" IPRO 16-075 pump
The 4" IPRO 16-075 pump is used to draw and convey raw water from drilled deep-water intakes—for supplying households with their own water intake, irrigation, and drainage. Water drawn from the intake is intended for further treatment.
What distinguishes the 4" IPRO series?
Floating impellers and sand resistance
The 4" IPRO series has floating impellers, allowing it to operate in water with a sand content of up to 5%. Water-contacting components are made of AISI 304 and AISI 420 stainless steel and PPO polymer.
What is the difference between the T version and the S version?
400 V three-phase version
The T version is powered by three-phase electricity (3~400 V) and is intended for installations with access to a three-phase power supply. Three-phase power ensures smooth motor operation and lower current consumption per phase than the single-phase S version.
What type of well is the 4" IPRO 16-075 pump suitable for?
Matching the well diameter
The pump has a diameter of 99 mm and is designed for wells with a minimum diameter of 4". The maximum immersion depth is 150 m.
Where can I buy the IPRO 4" 16-075 pump?
Where to buy the 4" IPRO 16-075 pump
As the manufacturer, we do not sell directly. The 4" IPRO 16-075 pump is available from our trade partners, plumbing wholesalers, and authorized online distributors.
What warranty covers the 4" IPRO pump?
Manufacturer's warranty
The 4" IPRO submersible pump is covered by a 36-month (3-year) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
