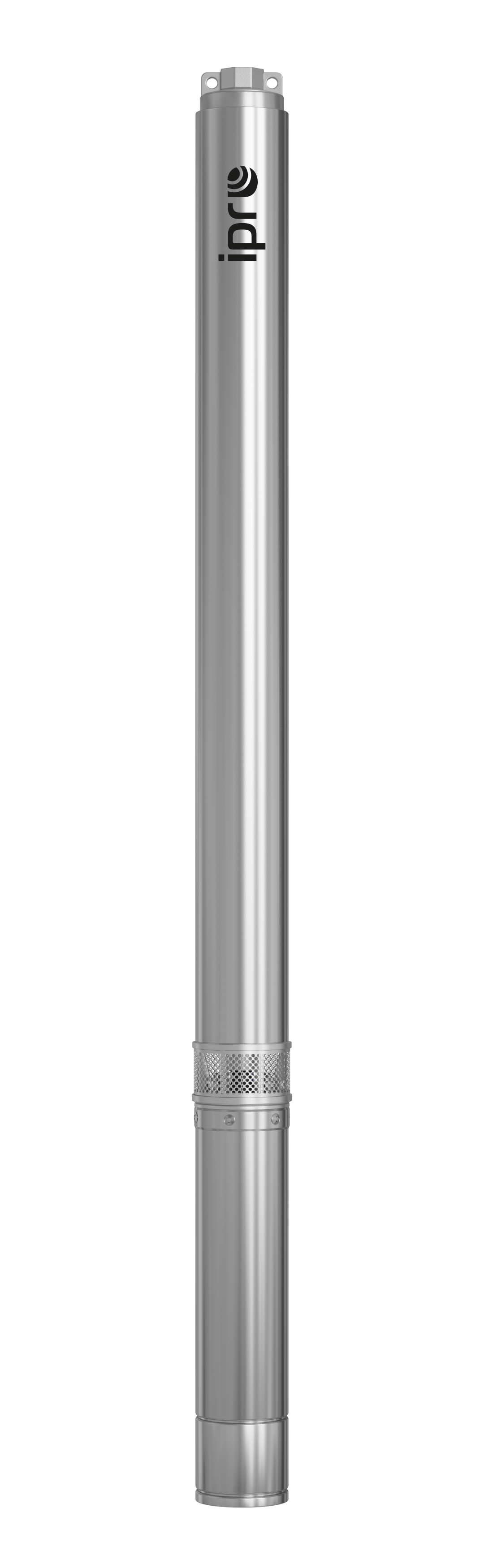

4" IPRO 16-030 – 4" deep well pump with enhanced sand resistance, 400 V
The 4" IPRO 16-030 by IPRO is a multistage, three-phase deep well pump with a diameter of 99 mm, designed for wells with a minimum diameter of 4". Floating impellers and the use of wear-resistant materials allow it to operate in water with a sand content of up to 5%.
Who it's for
- Households and farms with their own water source – drawing raw water from a deep well for further treatment and use.
- Orchardists and gardeners – supplying irrigation systems for gardens, orchards and crops.
- Drainage and technical installation contractors – continuous operation in demanding conditions, including industrial and fire protection applications.
- Well owners with sandy water – floating impellers allow the pump to operate with a sand content of up to 5%.
Applications
- Drawing and pumping technically clean raw water from drilled deep wells before treatment.
- Irrigation of gardens, orchards and agricultural crops.
- Land drainage and industrial and fire protection applications.
W drilled deep wells, the 4" IPRO 16-030 400V deep well pump is powered by a three-phase supply, which allows lower current draw per phase at the same motor power.
The pump is not a water treatment device and does not certify that the water is safe to drink. If the water is to be used for drinking, cooking or other household purposes, the user must ensure appropriate treatment and quality control at the point of use.
4" IPRO 16-030 pump features – description and technical data
The 4" IPRO 16-030 is a multistage deep well pump with radial impellers, powered by a three-phase PRO motor. Its design, based on Italian technology and featuring floating impellers, ensures long-term operation in sandy water and stable performance in demanding water sources.
Water-contact components are made from corrosion- and abrasion-resistant materials: the suction and discharge connectors, housing, check valve, filter screen, sliding sleeve and coupling are made of AISI 304 stainless steel; the shaft and rotor are made of AISI 420 stainless steel; and the impellers and diffusers are made of PPO polymer. Floating impellers allow the pump to operate in water with a sand content of up to 5%.
- Brand: IPRO
- Type: 4" multistage deep well pump (Ø 99 mm) with radial impellers and enhanced sand resistance
- Power supply: 3~400 V / 50 Hz
- Rotational speed: 2850 rpm
- Protection rating: IP68
- Insulation class: F
- Operating mode: continuous
- Minimum well diameter: 4"
- Maximum immersion depth: 150 m
- Maximum liquid temperature: 35 °C
- Maximum number of starts: 30/h
- Shaft connection: NEMA standard
- Maximum sand content: 5%
- Power cable: 1.5 m
IPRO - 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
Dambat - a trusted manufacturer of pumps and hydrotechnical equipment with quality certifications.
Frequently asked questions (FAQ) - what is the 4" IPRO 16-030 submersible pump used for?
What is the 4" IPRO 16-030 submersible pump used for?
Applications of the 4" IPRO 16-030 pump
The 4" IPRO 16-030 submersible pump is designed to draw and pump untreated water from drilled deep wells - for supplying properties with their own water source, irrigation, and drainage. Water drawn from the source is intended for further treatment.
What makes the 4" IPRO series stand out?
Floating impellers and sand resistance
The 4" IPRO series has floating impellers, allowing it to operate in water with a sand content of up to 5%. Parts in contact with water are made of AISI 304 and AISI 420 stainless steel and PPO polymer.
How does the T version differ from the S version?
400 V three-phase version
The T version uses three-phase power (3~400 V) and is designed for installations with access to a three-phase power supply. Three-phase power provides smooth motor operation and lower current draw per phase than the single-phase S version.
What size well is the 4" IPRO 16-030 pump suitable for?
Choosing a pump for your well diameter
The pump has a diameter of 99 mm and is designed for wells with a minimum diameter of 4". The maximum immersion depth is 150 m.
Where can you buy the IPRO 4" IPRO 16-030 pump?
Where to buy the 4" IPRO 16-030 pump
As a manufacturer, we do not sell directly. The 4" IPRO 16-030 pump is available from our trade partners, plumbing wholesalers, and authorized online distributors.
What warranty does the 4" IPRO pump come with?
Manufacturer's warranty
The 4" IPRO submersible pump comes with a 36-month (3-year) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
