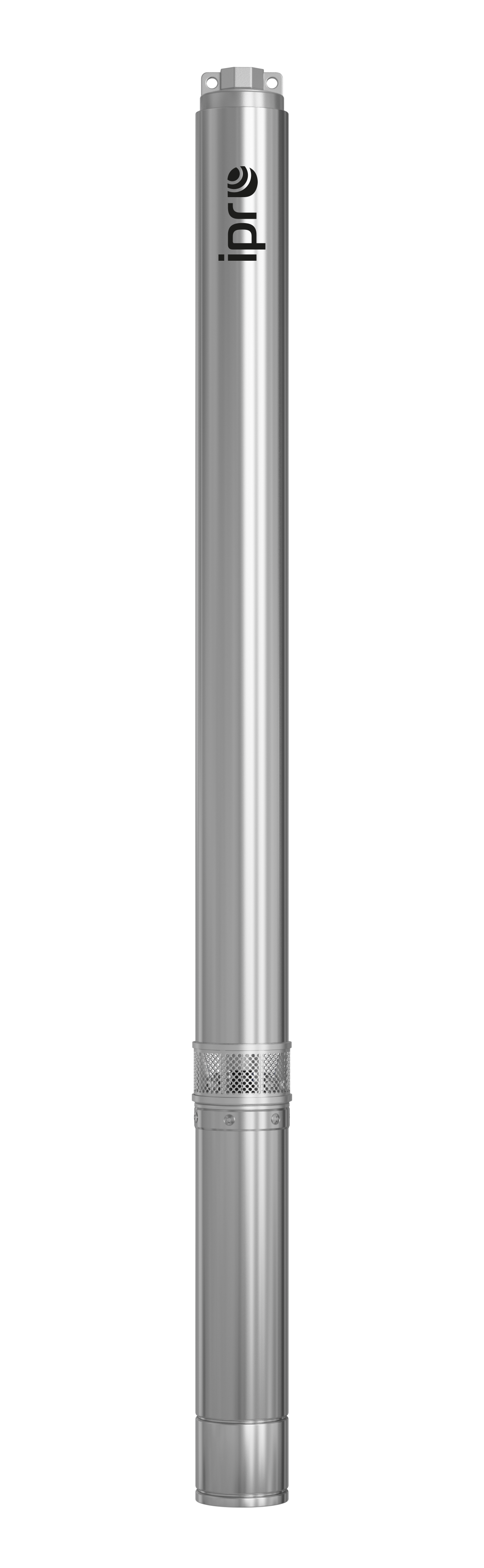

4" IPRO 16-030 (2,2 kW, 230 V) submersible pump with 1,5 m cable

IPROIndex:OPA000834 EAN:5903887216609

Description

  • Capacity [l/min.]: 430.0
  • Head [m]: 47.0
  • Power [kW]: 2.2
  • Power supply [V]: 1~230 V
  • Frequency [Hz]: 50
  • Current [A]: 15.8
  • Motor speed (rpm): 2850
  • Operating mode: continuous
  • Insulation class: F
  • Protection rating: IP68
  • Dimensions H/W/L [mm]: 99/1283
  • Max. liquid temperature: 35
  • Product weight [kg]: 23.7
  • Power cable length (m): 1.5
  • Connection [DN/inches]: 2
  • Diameter [inches]: 4”
  • Max. immersion depth (m): 150
  • Max. number of starts (cycles/h): 30

ADDITIONAL INFORMATION
• Number of steps: 8
• Shaft connection: NEMA standard
• Max. voltage fluctuations: ± 10%

MATERIALS
• Suction/discharge connector: AISI 304 stainless steel,
• Housing: AISI 304 stainless steel,
• Shaft and rotor: AISI 304 stainless steel,
• Filter screen: AISI 304 stainless steel,
• Impeller: PPO polymer,
• Diffuser: PPO polymer,
• Sliding sleeve: AISI 304 stainless steel,
• Coupling: AISI 304 stainless steel,
• Mechanical seal: Ceramic/SiC/NBR,
• Oil-cooled motor.

4" IPRO 16-030 (2,2 kW, 230 V) submersible pump with 1,5 m cable characteristics
