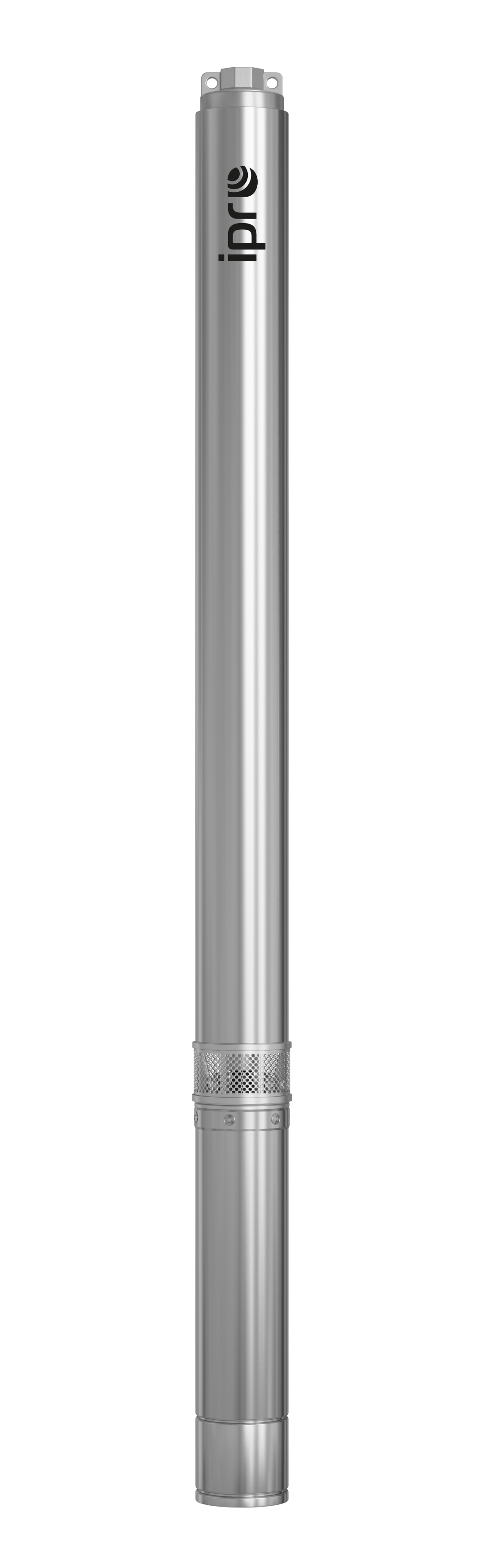

4" IPRO 12-040 – 4" submersible pump with increased sand resistance, 400 V
The 4" IPRO 12-040 by IPRO is a multistage, three-phase submersible pump with a diameter of 99 mm, designed for wells with a minimum diameter of 4". Floating impellers and the use of wear-resistant materials allow it to operate in water with a sand content of up to 5%.
Who it's for
- Households and farms with their own water intake – drawing untreated water from a deep well for further treatment and use.
- Orchardists and gardeners – supplying irrigation systems for gardens, orchards, and crops.
- Drainage and technical installation contractors – continuous operation in demanding conditions, including industrial and fire protection applications.
- Well owners with sandy water – floating impellers allow the pump to operate with a sand content of up to 5%.
Applications
- Drawing and pumping clean, untreated water from drilled deep wells before treatment.
- Irrigation of gardens, orchards, and agricultural crops.
- Land drainage, as well as industrial and fire protection applications.
In drilled deep wells, the 4" IPRO 12-040 400V submersible pump is powered by three-phase electricity, allowing lower current consumption per phase at the same motor power.
The pump is not a water treatment device and does not certify that the water is safe to drink. If the water is to be used for drinking, cooking, or other household purposes, the user should ensure appropriate treatment and monitor water quality at the point of use.
4" IPRO 12-040 pump features – description and technical specifications
The 4" IPRO 12-040 is a multistage submersible pump with radial impellers, powered by a three-phase PRO motor. Its design, based on Italian technology and featuring floating impellers, ensures long-lasting operation in sandy water and stable performance in demanding water intakes.
Water-contacting components are made from corrosion- and abrasion-resistant materials: the suction and discharge ports, housing, check valve, filter screen, sliding sleeve, and coupling are made of AISI 304 stainless steel; the shaft and rotor are made of AISI 420 stainless steel; and the impellers and diffusers are made of PPO polymer. Floating impellers allow the pump to operate in water with a sand content of up to 5%.
- Brand: IPRO
- Type: multistage 4" submersible pump (Ø 99 mm) with radial impellers and increased sand resistance
- Power supply: 3~400 V / 50 Hz
- Rotational speed: 2850 rpm
- Ingress protection rating: IP68
- Insulation class: F
- Operating mode: continuous
- Minimum well diameter: 4"
- Maximum submersion depth: 150 m
- Maximum fluid temperature: 35 °C
- Maximum number of starts: 30/h
- Shaft connection: NEMA standard
- Maximum sand content: 5%
- Power cable: 1.5 m
IPRO - 36 months (3 years) manufacturer's warranty. Dambat provides warranty and post-warranty service.
Dambat - a trusted manufacturer of pumps and hydrotechnical equipment with quality certifications.
Frequently asked questions (FAQ) - what is the 4" IPRO 12-040 submersible pump used for?
What is the 4" IPRO 12-040 submersible pump used for?
Applications of the 4" IPRO 12-040 pump
The 4" IPRO 12-040 pump is used to draw and pump untreated water from drilled deep-water wells - to supply households with their own water source, for irrigation, and for drainage. Water drawn from the source is intended for further treatment.
What sets the 4" IPRO series apart?
Floating impellers and sand resistance
The 4" IPRO series has floating impellers, allowing it to operate in water with a sand content of up to 5%. The components in contact with water are made of AISI 304 and AISI 420 stainless steel and PPO polymer.
How does the T version differ from the S version?
Three-phase 400 V version
The T version is three-phase (3~400 V) and designed for installations with access to a three-phase power supply. Three-phase power ensures smooth motor operation and lower current draw per phase than the single-phase S version.
What well is the 4" IPRO 12-040 pump suitable for?
Choosing a pump for your well diameter
The pump has a diameter of 99 mm and is designed for wells with a diameter of at least 4". The maximum submersion depth is 150 m.
Where can I buy the IPRO 4" IPRO 12-040 pump?
Where to buy the 4" IPRO 12-040 pump
As a manufacturer, we do not sell directly. The 4" IPRO 12-040 pump is available from our business partners, plumbing wholesalers, and authorized online distributors.
What warranty covers the 4" IPRO pump?
Manufacturer's warranty
The 4" IPRO submersible pump comes with a 36-month (3-year) manufacturer's warranty. Dambat provides warranty and post-warranty service.
