Description

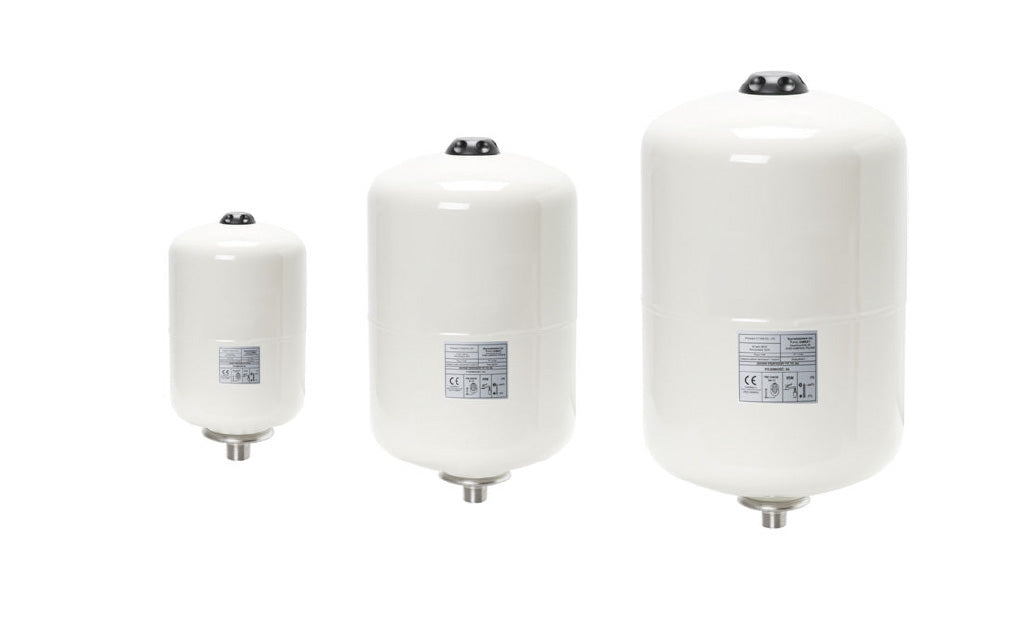

IBO C.W.U. 36 BASIC Diaphragm Expansion Vessel
IBO C.W.U. BASIC diaphragm expansion vessels are expansion tanks designed for hot and cold water installations, used to maintain and equalize pressure resulting from changes in water volume. As a manufacturer, we design the C.W.U. BASIC series with a butyl diaphragm and a carbon steel body coated with epoxy paint, ensuring durable and trouble-free operation in water systems. The series is available in capacities from 5 to 50 liters.
Who it is for
- Plumbing and water installation companies – we provide proven, ready-to-install components for hot and cold water installations, with complete Dambat technical documentation.
- Sanitary installation designers – we offer vessels with documented pressure and capacity parameters, facilitating system selection and planning.
- Wholesalers and technical stores – we enable you to expand your product range with the economical C.W.U. diaphragm vessel series, available in a wide range of capacities.
- Service technicians and maintenance departments – we provide vessels covered by a 24-month manufacturer’s warranty and supported by Dambat authorized service.
Applications
- Maintaining and equalizing pressure in hot and cold water installations – compensating for changes in water volume resulting from heating.
- Operation in installations filled with glycol mixtures at a maximum concentration of 50%.
- Protecting water systems in residential buildings, public-use facilities, and industrial installations.
- Operation with pumps and pressure systems requiring certified devices compliant with Directive 2014/68/EU.
Features, description, and technical data
The IBO C.W.U. BASIC series from Dambat includes diaphragm expansion vessels for hot and cold water installations, available in capacities from 5 to 50 liters. High-quality materials and quality control at every stage of production ensure consistent parameters and long-term device operation.
The vessel body is made of thick carbon steel coated with anti-corrosion varnish and an external powder epoxy coating, ensuring durable surface protection. A butyl diaphragm is installed inside the steel shell; this material is characterized by high tensile strength and very low gas permeability. The diaphragm completely separates the water from the compressed air cushion, protecting the steel body against internal corrosion.
A sealed valve (car tire valve) is located in the rear part of the vessel, under the cover, and is used to check and adjust the pre-charge pressure with a standard compressor. The vessels meet the requirements of the Pressure Equipment Directive 2014/68/EU.
Parameters of the IBO C.W.U. BASIC series:
- Diaphragm: YES – butyl
- Gas permeability: very low
- Body: carbon steel coated with anti-corrosion varnish and powder epoxy paint
- Compliance: PED Pressure Equipment Directive 2014/68/EU
- Permitted media: water, glycol mixtures up to 50% concentration
Detailed technical data for individual models (pre-charge pressure, operating pressure, dimensions, and weight) are available in the manufacturer’s technical documentation. Warranty: IBO – 24-month (2-year) manufacturer’s warranty. Dambat is the only authorized service provider.
Frequently Asked Questions (FAQ) – IBO C.W.U. BASIC diaphragm expansion vessels
What are IBO C.W.U. BASIC diaphragm expansion vessels used for?
IBO C.W.U. BASIC diaphragm expansion vessels are designed for hot and cold water installations to maintain and equalize pressure resulting from changes in water volume. The butyl diaphragm separates the water from the air cushion, stabilizing the operation of the entire system and protecting it against sudden pressure surges.
How does the IBO C.W.U. BASIC series differ from the IBO C.O. BASIC series and GBV tanks?
IBO C.W.U. BASIC vessels are designed for hot and cold water installations and feature a butyl diaphragm. The IBO C.O. BASIC series consists of vessels for closed heating and solar installations, with an EPDM diaphragm and a pre-charge pressure of 1.5 bar. GBV tanks, on the other hand, are vertical pressure vessels for water supply systems, with significantly higher capacities and a different range of applications.
Where can I purchase diaphragm expansion vessels from the IBO C.W.U. BASIC series?
As a manufacturer, we do not sell directly online. IBO C.W.U. BASIC diaphragm expansion vessels are available from our commercial partners, plumbing wholesalers, and authorized online distributors cooperating with the Dambat brand.
What is the warranty period, and where should I submit a service request?
Diaphragm expansion vessels from the IBO C.W.U. BASIC series are covered by a 24-month (2-year) manufacturer’s warranty. Dambat is the only authorized service provider – the contact form is available at dambat.pl/pages/serwis.
How do I adjust the pre-charge pressure in IBO C.W.U. BASIC vessels?
The pressure is adjusted using the sealed valve (car tire valve) located in the rear part of the vessel, under the cover. Pressure is added or reduced using a standard compressor. The pre-charge pressure should be selected according to the parameters of the specific installation, in line with Dambat’s technical documentation.
Are IBO C.W.U. BASIC vessels suitable for use with glycol?
Yes – IBO C.W.U. BASIC diaphragm expansion vessels are approved for use with glycol mixtures at a maximum concentration of 50%.
What material is the diaphragm in IBO C.W.U. BASIC vessels made of?
IBO C.W.U. BASIC diaphragm expansion vessels are equipped with a diaphragm made of butyl, a material characterized by high tensile strength and very low gas permeability. The diaphragm permanently separates the water from the compressed air cushion inside the tank.
- Diaphragm: YES,
- Installation position: Vertical/Horizontal,
- Connection: 3/4",
- Pressure gauge: NO,
- Maximum tested pressure: 15.0 bar,
- Pre-charge pressure: 3.5 ±10%,
- Operating pressure: 10.0 bar,
- Operating temperature: from 0°C to 99°C,
- Dimensions: Ø35/46 cm,
- Weight: 6.4 kg,
MATERIALS
• Body: Carbon steel coated with lacquer,
• Diaphragm: Butyl.
Download: IBO_CWU_BASIC_PL-EN_instrukcja.pdf
