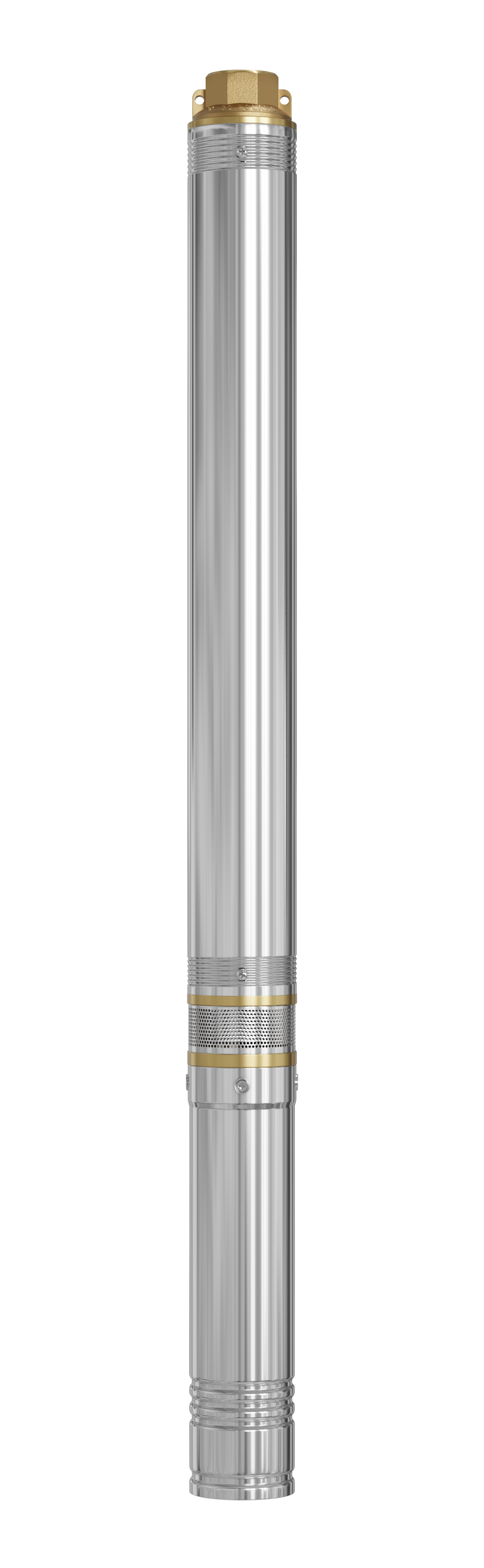

3.5" SDM 6-14 – 230 V multistage submersible pump
IBO’s 3.5" SDM series consists of multistage submersible pumps with a diameter of 90 mm, designed for wells with a minimum internal diameter of 100 mm. Among IBO submersible pumps, the SDM series offers one of the widest selections of models, differing in both capacity and head. The capacitor built into the motor eliminates the need for an external starting box.
Who it is for
-
Owners of single-family and multi-family homes – IBO’s 3.5" SDM series provides a reliable supply of raw water from a private deep well, operating continuously all year round.
-
Farms – the wide selection of models with different capacities and heads makes it possible to match the pump to the needs of both a small farm and extensive irrigation systems.
-
Owners of irrigation systems – the pump works well as a water source for sprinklers and drip lines, as well as in drainage systems.
-
Installers and well-drilling companies – the included starting box with overcurrent protection simplifies the electrical installation, while the 90 mm diameter enables installation in wells with an internal diameter of just 100 mm.
Application
IBO’s 3.5" SDM series is designed to draw water from deep and drilled wells with a minimum internal diameter of 100 mm, for single-family and multi-family homes and farms. The pump is equally suitable for supplying irrigation systems – sprinklers and drip lines – as well as drainage systems.
3.5" SDM submersible pumps operate in a vertical position, submerged to a maximum depth of 100 m, with a 1~ 230 V / 50 Hz power supply. The permissible temperature of the pumped liquid is up to 35°C. The pumps are not water-treatment devices; when using the water for other purposes, we recommend ensuring appropriate treatment.
Features of IBO’s 3.5" SDM series – description and technical data
IBO’s 3.5" SDM series submersible pumps are multistage centrifugal devices with an external diameter of 90 mm and increased resistance to sand. The housing, shaft and rotor are made of AISI 304 stainless steel, the impellers and diffusers of PPO polymer, and the suction and discharge bodies of brass. The motor is oil-cooled.
IBO’s 3.5" SDM series includes a wide range of models with different capacities and heads, allowing precise matching to the requirements of a specific installation. The capacitor built into the motor eliminates the need for an external starting box.
- Pump type: multistage, submersible
- Minimum well diameter: 100 mm
- Power supply: 1~ 230 V / 50 Hz
- Protection rating: IP68
- Insulation class: B
- Operating mode: continuous S1
- Installation position: vertical
- Maximum immersion depth: 100 m
- Maximum pumped liquid temperature: 35°C
- Power cable: 20 m with plug
- Capacitor: built into the motor
- Thermal protection: built into the motor winding
IBO – 24-month (2-year) manufacturer’s warranty.
Dambat – a trusted manufacturer of pumps and water engineering equipment with quality certificates.
Frequently asked questions (FAQ) – 3.5" SDM submersible pump
What is IBO’s 3.5" SDM series submersible pump used for?
IBO’s 3.5" SDM series is designed to draw water from wells with a minimum diameter of 100 mm, for single-family and multi-family homes, farms, and irrigation and drainage systems.
How does the 3.5" SDM series differ from the 3.5" SCM series?
Both series are single-phase (1~ 230 V) and designed for wells with a minimum diameter of 100 mm. Both series have a capacitor built directly into the motor, eliminating the need for an external starting box. The main differences are primarily the material of the suction body and the breadth of the product range: the SDM series includes more models with different capacities and heads.
How do I choose the right model from the 3.5" SDM series?
The choice depends on the well depth, required capacity and system pressure. The series offers a wide range of hydraulic parameters, with different models varying in both capacity and head. If in doubt, we encourage you to contact Dambat’s technical department.
Is the 3.5" SDM pump covered by the manufacturer’s warranty?
IBO – 24-month (2-year) manufacturer’s warranty. Dambat provides warranty and post-warranty service.
Where can I buy a 3.5" SDM submersible pump?
As the manufacturer, we do not sell directly. IBO’s 3.5" SDM series pumps are available from our trade partners, installation wholesalers and authorised online distributors.
