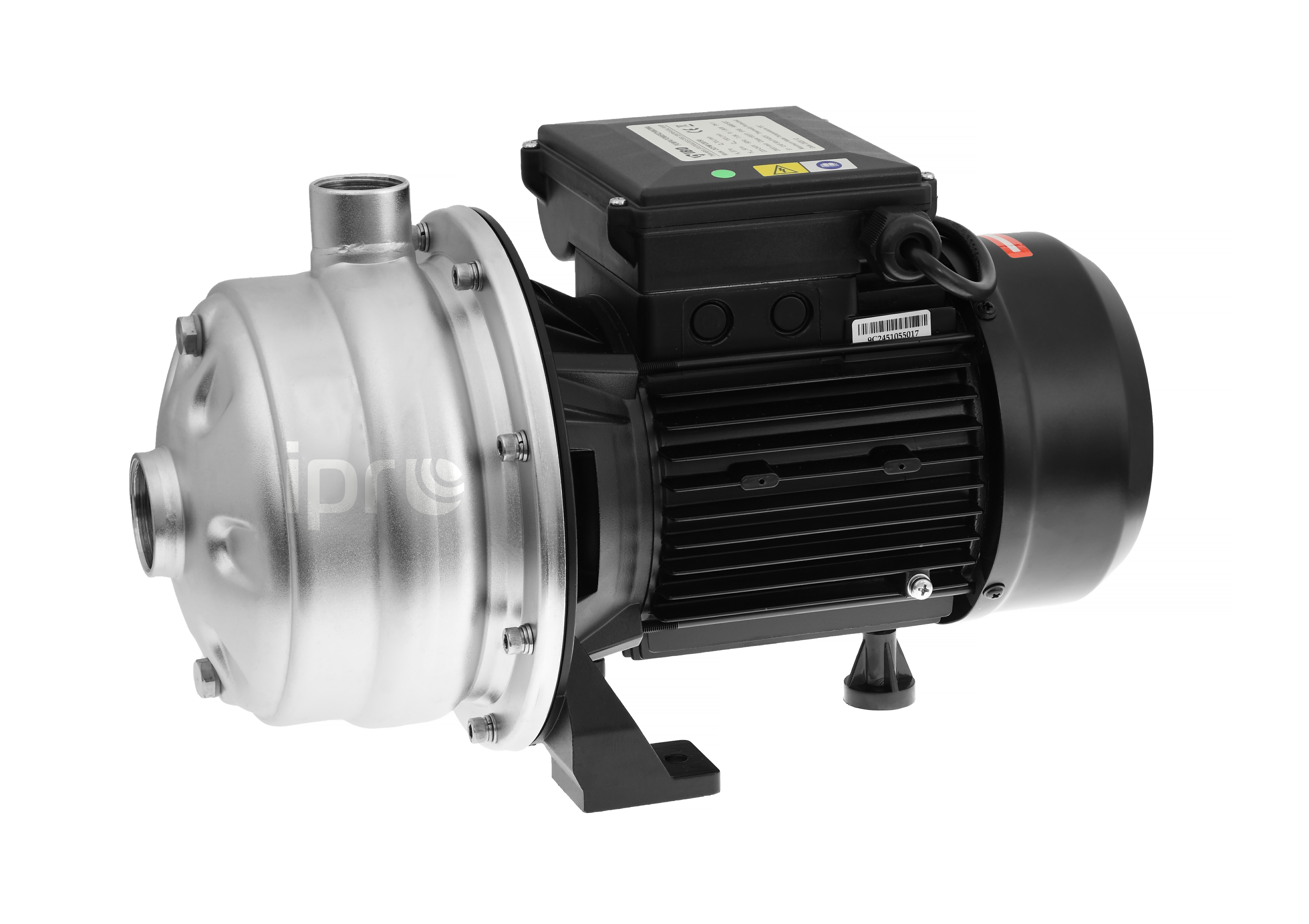

2CPM 200/55 – two-stage stainless steel centrifugal pump with a double impeller, 230V
iQ PRO 2CPM pumps are two-stage centrifugal pumps with a double closed impeller, made entirely of AISI 304 stainless steel and designed for transporting slightly contaminated liquids in systems requiring high head. The two-stage design and double mechanical seal ensure high operating efficiency even with significant pressure differences in the system. The single-phase 230V 2CPM series includes the 2CPM 120/50, 2CPM 120/64, and 2CPM 200/55 models, which differ in hydraulic performance and maximum head.
Who it is for
-
Food processing plants – the 2CPM pump is suitable for washing and dishwashing machines, as well as for transporting food liquids and conveying suspensions in processing facilities, including fish farms.
-
Systems requiring high head – the two-stage design enables significantly higher pressure than single-stage pumps, facilitating the supply of extensive systems and draw-off points located far from the source.
-
Metallurgical and textile plants – the pump is used in dyehouses and for cleaning bottles, cans, and glass in the manufacturing industry.
-
Farms and swimming pool systems – moderately viscous, mildly aggressive liquids, fertilizers, irrigation and drainage systems, as well as swimming pool, heating, and air-conditioning systems benefit from the stable operation of the 2CPM pump.
Applications
iQ PRO 2CPM pumps are designed for pumping slightly contaminated liquids and media containing solids with a diameter not exceeding 1 mm, with free solid particle content of up to 0.26 kg/m³ and dissolved particle content of up to 51 kg/m³. They are suitable for washing and dishwashing machines in the food industry, transporting food liquids, conveying suspensions in processing facilities, and use in fish farms. They are also used in the metallurgical industry, in textile dyehouses, for cleaning bottles, cans, and glass, and in air-conditioning and heating systems.
In agriculture, the pump can be used to transfer moderately viscous, mildly aggressive liquids and to pump fertilizers, as well as in irrigation and drainage systems. The series also supports swimming pool systems, where the two-stage design enables it to overcome greater elevation differences and pressure losses in the system. The 2CPM 230V industrial pump operates in a single-phase system supplied with 1~230 V.
2CPM 230V features – description and technical data
The 2CPM series pumps are based on a two-stage centrifugal design with a double closed impeller and double mechanical seal, enabling high efficiency and significantly greater head than comparable single-stage pumps. The asynchronous motor, with a squirrel-cage rotor and enclosed design, housed in an aluminum casing with external ventilation, drives the shaft, casing, impeller, and intermediate wall, all made of AISI 304 stainless steel, while the mechanical seal is made of graphite, silicon carbide, and NBR. This combination of materials provides corrosion resistance and compliance with the hygiene requirements applicable to equipment operating in contact with food products.
In the 230V version, the series includes three models differing in hydraulic performance and maximum head – 2CPM 120/50, 2CPM 120/64, and 2CPM 200/55 – offering a maximum head of 50 to 63 m. All three models are equipped with G1¼ discharge and suction connections, facilitating compatibility with standard installation fittings.
- Type of pump: two-stage, centrifugal, with a double closed impeller, made of stainless steel
- Power supply: 1~230 V / 50 Hz
- Insulation class: F (155)
- Protection rating: IP55
- Maximum pumped liquid temperature: 70°C
- Maximum ambient temperature: 50°C
- Maximum operating pressure: 10 bar
- Motor thermal protection: yes (Thermally Protected)
- Maximum solid contamination content: particles up to 1 mm, free particles up to 0.26 kg/m³, dissolved particles up to 51 kg/m³
- Discharge and suction connections: G1¼
iQ PRO – 36-month (3-year) manufacturer's warranty. Dambat provides warranty and post-warranty service.
Dambat – a trusted manufacturer of pumps and water engineering equipment with quality certificates.
Frequently asked questions (FAQ) – 2CPM 230V industrial pump
What industrial applications is the 2CPM pump suitable for?
The iQ PRO 2CPM pump is used in the food, metallurgical, and textile industries, in fish farms, and in swimming pool, air-conditioning, and heating systems. Its AISI 304 stainless steel construction facilitates maintaining process cleanliness in these industries.
What solid contaminants can the 2CPM pump?
The 2CPM pump is designed for slightly contaminated liquids containing solid particles with a diameter not exceeding 1 mm, with free solid particle content of up to 0.26 kg/m³ and dissolved particle content of up to 51 kg/m³.
How does the two-stage 2CPM pump differ from the single-stage F-CPM INOX?
The 2CPM pump is equipped with two stages and a double closed impeller, enabling a significantly higher head than the single-stage F-CPM INOX series. Both series are designed for the same type of medium – slightly contaminated liquids with solid particles up to 1 mm – and the choice between them depends primarily on the required head in the system.
Where can the 2CPM 230V industrial pump be purchased?
Dambat does not sell directly. The 2CPM pump is available from our commercial partners, installation wholesalers, and authorized online distributors.
Does the iQ PRO 2CPM pump come with a manufacturer's warranty?
iQ PRO – 36-month (3-year) manufacturer's warranty. Dambat provides warranty and post-warranty service.
