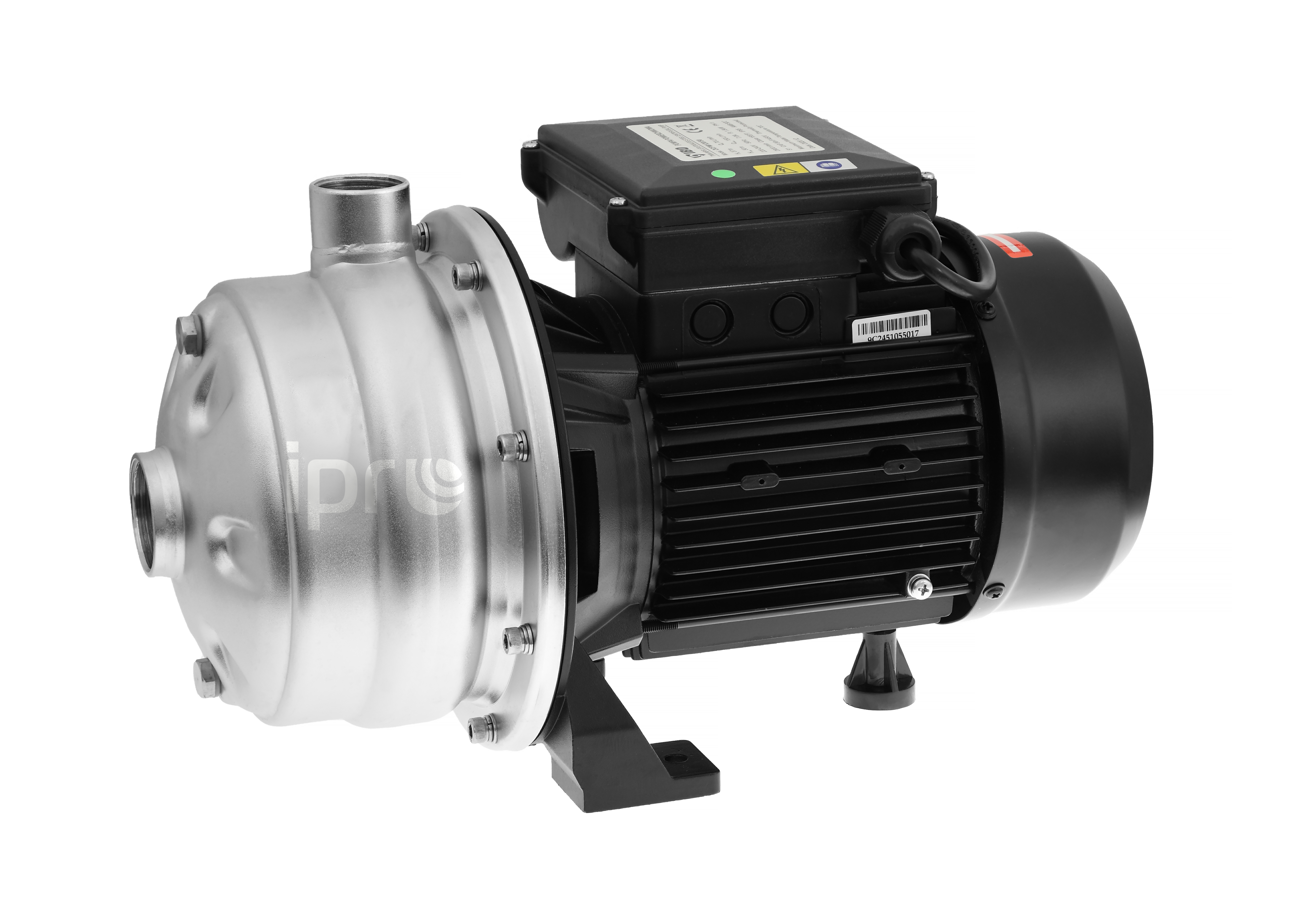

2CPM 120/50 – two-stage stainless steel centrifugal pump with double impeller 230V
iQ PRO 2CPM pumps are two-stage centrifugal pumps with a double closed impeller, made entirely of AISI 304 stainless steel, intended for transporting slightly contaminated liquids in installations requiring high lifting. The two-stage design and double mechanical seal ensure high operating efficiency even with significant pressure differences in the installation. The 2CPM series in the single-phase 230V version includes models 2CPM 120/50, 2CPM 120/64 and 2CPM 200/55, differing in hydraulic performance and maximum lifting capacity.
For whom
-
Food industry plants – the 2CPM pump works well in washing and dishwashing machines, as well as in the transport of food liquids and suspensions in processing, including fish farms.
-
Installations requiring high lifting – two-stage design allows for much higher pressure than in single-stage pumps, which makes it easier Power supply extensive installations and consumption points remote from the source.
-
Metallurgical and textile plants – the pump is used in dyeing plants and for cleaning bottles, cans and glass in the production industry.
-
Farms and swimming pool systems – moderately viscous liquids with low aggressiveness, fertilizers, irrigation and drainage, as well as swimming pool and heating and air-conditioning systems benefit from the stable operation of the 2CPM pump.
Application
2CPM pumps by iQ PRO are designed for pumping slightly contaminated liquids and media containing solids with a diameter not exceeding 1 mm, with the content of free solid particles up to 0.26 kg/m³ and dissolved particles up to 51 kg/m³. They are used in washing and dishwashing machines in the food industry, in the transport of food liquids, in the transmission of suspensions in processing and in fish farms. They are also used in the metallurgical industry, in dyeing plants in the textile industry, for cleaning bottles, cans and glass, and in air conditioning and heating systems.
In agriculture, the pump can be used to transfer moderately viscous liquids with low aggressiveness and to pump fertilizers, as well as in irrigation and drainage. The series also supports swimming pool systems, where the two-stage design allows for overcoming greater height differences and pressure losses in the installation. The 2CPM 230V industrial pump operates in a single-phase system, powered by 1 ~ 230 V.
Features of 2CPM 230V – description and technical data
The 2CPM series pumps are based on a two-stage, centrifugal design with a double closed impeller and a double mechanical seal, which allows for high efficiency and much higher lifting than comparable single-stage pumps. An asynchronous motor with a squirrel-cage rotor, closed structure, in an aluminum housing with external ventilation, drives the shaft, casing, rotor and interwall made of AISI 304 stainless steel, while the mechanical stuffing box is made of graphite, silicon carbide and NBR. This combination of materials ensures corrosion resistance and compliance with the hygiene requirements for devices working in contact with food products.
In the 230V version, the series includes three models differing in hydraulic performance and maximum lifting - 2CPM 120/50, 2CPM 120/64 and 2CPM 200/55, offering maximum lifting from 50 to 63 m. All three models are equipped with pressure and suction connections in size G1¼, which facilitates cooperation with standard installation fittings.
- Pump type: two-stage, centrifugal, with a double closed impeller, made of stainless steel
- Power supply: 1~230V/50Hz
- Insulation class: F (155)
- Degree of protection: IP55
- Max. temperature of pumped liquid: 70°C
- Max. ambient temperature: 50°C
- Max working pressure: 10 bar
- Motor thermal protection: yes (Thermally Protected)
- Max. content of solid impurities: particles up to 1 mm, free particles up to 0.26 kg/m³, dissolved particles up to 51 kg/m³
- Pressure and suction connections: G1¼
iQ PRO – 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
Dambat – a trusted manufacturer of pumps and hydrotechnical equipment with quality certificates.
Frequently asked questions (FAQ) – 2CPM 230V industrial pump
What industrial applications is the 2CPM pump suitable for?
The iQ PRO 2CPM pump is used in the food, metallurgical and textile industries, in fish farms, as well as in swimming pool, air conditioning and heating systems. Made of AISI 304 stainless steel, it facilitates maintaining process cleanliness in these industries.
What solid pollutants can 2CPM pump?
The 2CPM pump is intended for slightly contaminated liquids containing solid particles with a diameter not exceeding 1 mm, with the content of free solid particles up to 0.26 kg/m³ and dissolved particles up to 51 kg/m³.
What is the difference between the two-stage 2CPM pump and the single-stage F-CPM INOX?
The 2CPM pump is equipped with two stages and a double closed impeller, which allows for a much higher lift than the single-stage F-CPM INOX series. Both series are designed for the same type of medium - slightly contaminated liquids with solid particles up to 1 mm - and the choice between them depends primarily on the required lifting height in the installation.
Where can you buy a 2CPM 230V industrial pump?
Dambat does not sell directly. The 2CPM pump is available from our trading partners, installation wholesalers and authorized online distributors.
Is the iQ PRO 2CPM pump covered by the manufacturer's warranty?
iQ PRO – 36 months (3 years) manufacturer's warranty. Warranty and post-warranty service is provided by Dambat.
