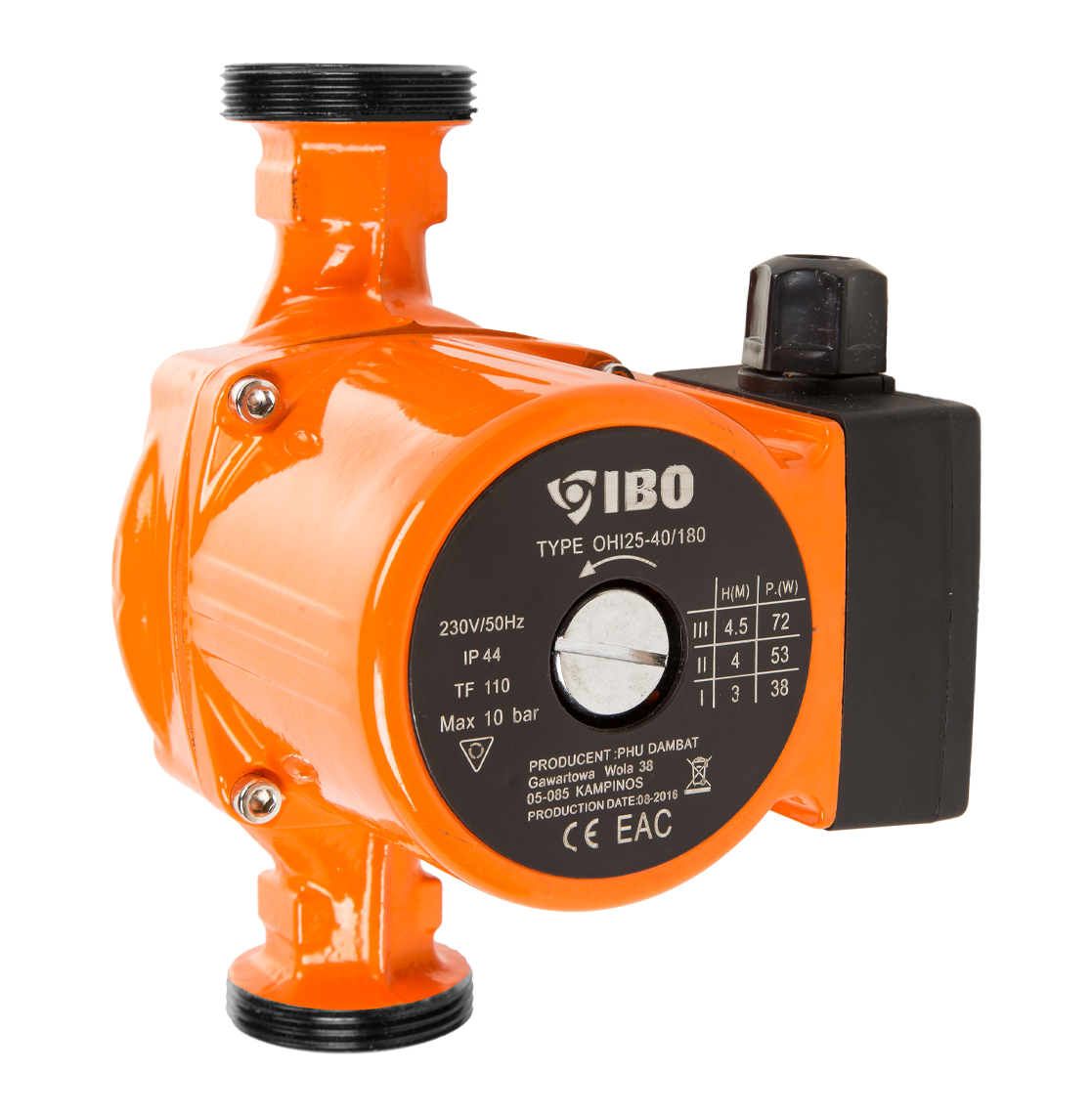

OHI 25-40/180 Circulation pump for drinking water
Hung on the picture to bring closer Click on the picture to enlarge it
OHI 25-40/180 Circulation pump for drinking water

OHI 25-40/180 Circulation pump for drinking water

IBO Index: 0060 EAN: 5903111344122
No review
Do you have questions? Contact us.

Description

Pumps equipped with 3 running engines, enabling adaptation of operation parameters depending on the user's needs. Pump in a version with cast iron body. Due to the design and high quality of the materials used, the pumps are very quiet. All OHI pumps have a PZH certificate.

CHARACTERISTICS

  • PZH certificate
  • Quiet work
  • Easy operation
  • Warranty and post -warranty service
  • Warranty 24 months

3 Operating modes: Bieg / h [m] / q [l / min.] / Power [in]

  I / 3/18/38

 II /4/36/53

III / 4.5 / 48/71

  • Number of operating modes: 3,
  • SPICATION SPACE: 180 mm,
  • Diameter of the connectors / screws: 1½ / 1",
  • Lifting: 4.0 M,
  • Efficiency: 55.0 l/min.,
  • Engine power: 71 IN,
  • Power supply: ,
  • Insulation class: F,
  • Degree of protection: IP44,
  • Scope of pumped liquid: from 2° C to 110° C,
  • Dimensions of the length/height/width: 18/12,9/13,5 cm
  • Libra: 2.4 kg.

Download: OHI_OHI_MAX_148x210-PL-EN-RoHS.pdf
Download: Karta_OHI.pdf
