BJ 60/100 (1.3 kW, 230 V) Pump with accessories

Hung on the picture to bring closer Click on the picture to enlarge it

A single -stage, self -esteem, centrifugal surface pump, equipped with an ability to increase the ability to suck, thanks to the use of Venturi's tube.

Designed for pumping clean, cold water from your own shots and for lifting pressure. This pump model is used when supplying water, recreational plots and hydration.

CHARACTERISTICS:

Ability to suck with a depth of max. 9 m
Small dimensions of the pump
Possibility of working with a tank or hydrophore machines (e.g. PC, SK)
Thermal protection built into the engine winding
The highest quality materials
24 -month warranty
Warranty and post -warranty service

SET

Pump BJ 60/100,
Manometer,
Five -profile discharge output,
Pressure switch.

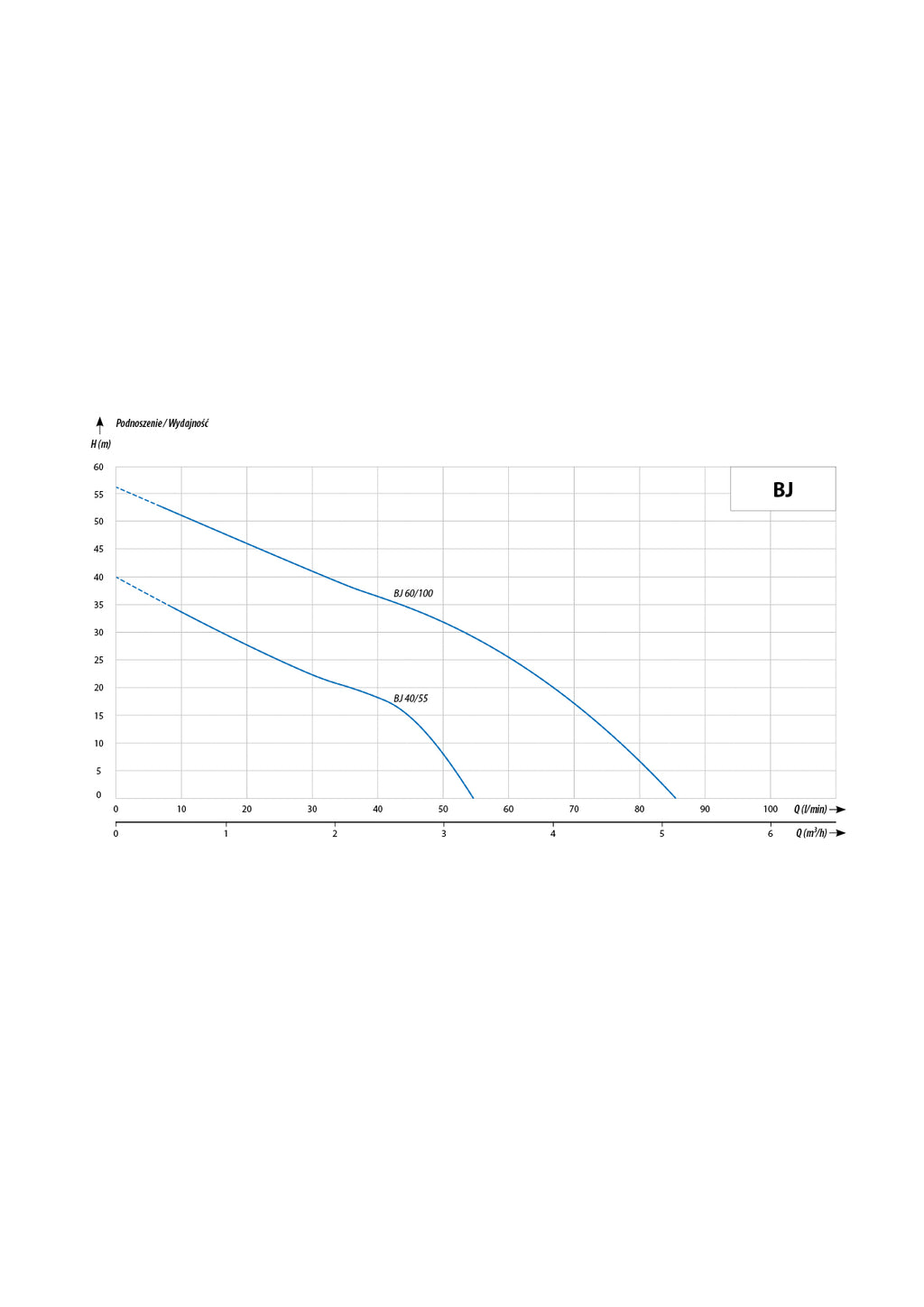

Lifting: 56.0 M,
Efficiency: 100.0 l/min.,
Suction capacity: 9.0 M,
Power: 1.3 kw,
Power supply: ,
Frequency: 50 Hz,
Power consumption: 8.4 AND,
Engine speed: 2850 rpm ,
Insulation class: F,
Working mode: continuous,
Degree of protection: IP55,
Connection: 1 minute1",
Departure direction: ,
Work position: Horizontal,
Maximum liquid temperature: 70° C,
Maximum environmental temperature: 50° C,
Dimension of the length/height/width: 43/23/21 cm
Libra: 20.0 kg,

Materials:

• Pump body: Aisi 304 stainless steel,
• shaft and rotor: Aisi 304 stainless steel,
• Międzyśna: AISI 304 stainless steel,
• rotor: Noril,
• diffuser/steering wheel: Noril
• Mechanical angina: ceramics / graphite / nb.
