Name: 4 SD 10-13 (3 kW, 400 V) deep pump with engine IBO ITALY
Brand: IBO
SKU: 000596
Price: 2084.73 PLN
Availability: InStock

4 SD 10-13 (3 kW, 400 V) deep pump with engine IBO ITALY

Hover over the picture to get closer Click on the picture to enlarge it

Multi -stage deep pump with a diameter of 98 mm, with increased sand resistance, designed for installation in wells with a minimum internal diameter of 115 mm. The pump is used to supply single and multi -family houses, farms, as well as to supply ironal systems (sprinklers, drop lines). Pumps also apply in industry and dehydration.

CHARACTERISTICS

Increased sand resistance,
PZH certificate,

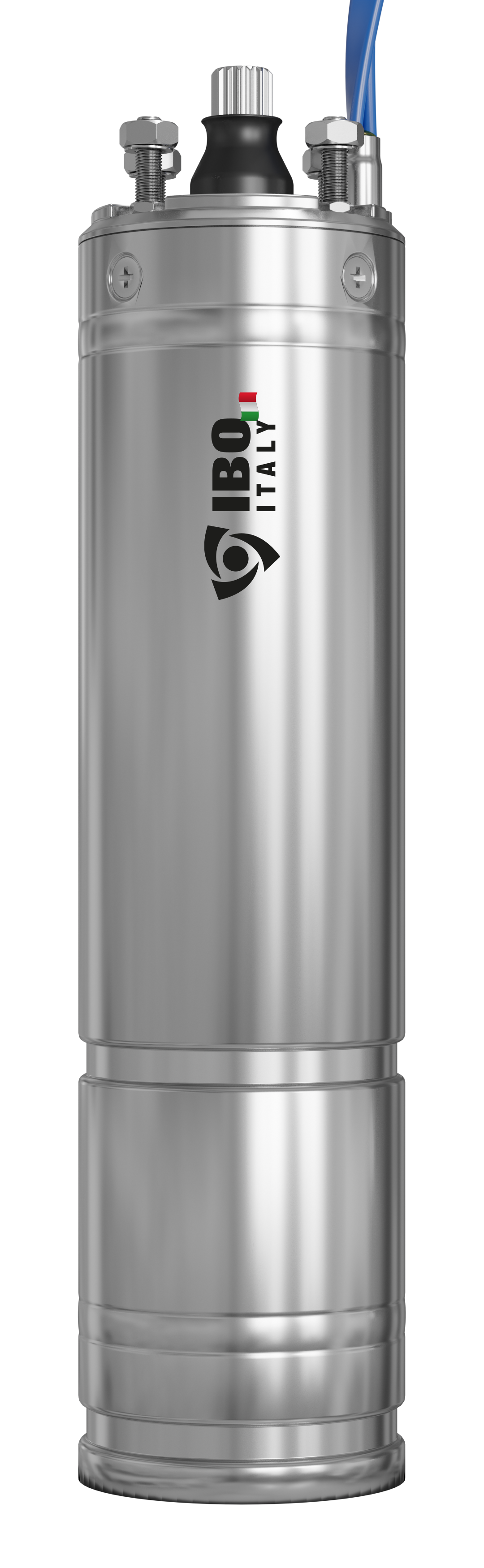

Engine IBO ITALY,
Thermal protection built into the engine winding,
The highest quality materials,
Warranty and post -warranty service,
24 months warranty.

Diameter: 4”,
Lifting: 72.0 M,
Efficiency: 360.0 l/min.,
Power: 3.0 kw,
Power supply: 3 ~ 400 V,
Frequency: 50 Hz,
Current: 7.2 AND,
Engine speed: 2850 rpm,
Insulation class: F,
Working mode: continuous,
Degree of protection: IP68,
Connection [mm/incly]: 2,
Work position: Vertical,
Liquid temperature: 35° C,
Max. Number of starts at 1H: 20,
Depth of immersion: 100 M,
Power cable length: 1.5 M,
Dimension diamond/height: 98/1650 mm,
Libra: 26.0 kg,

----------

Material
• sucking/pressure connector: brass,
• housing: AISI 304 stainless steel,
• shaft and rotor: Aisi 304 stainless steel,
• rotor: Noril,
• diffuser: Noril,
• Mechanical seal: ceramics/sic/nbr,
• Oil -cooled engine.

4 SD 10-13 (3 kW, 400 V) deep pump with engine IBO ITALY Characteristics

Download: INSTRUKCJA_GLEBINOWE_IBO_3_5SRH_PL_DE_EN.pdf
