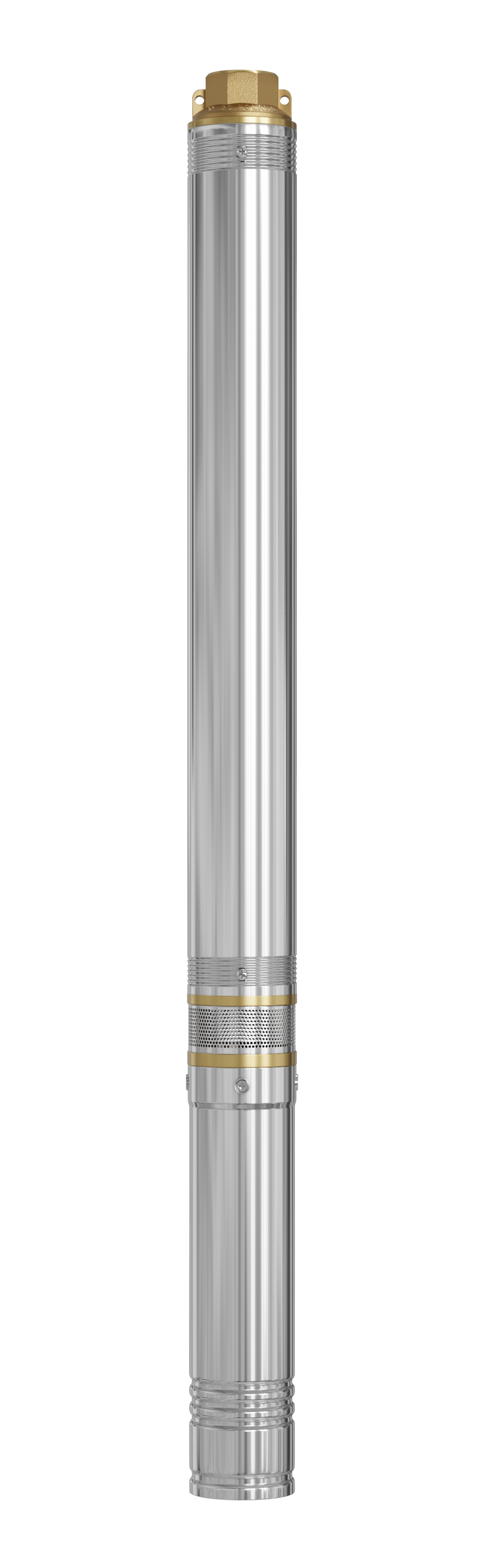

Ibo 3.5 "SDM deep pump
A multi -stage deep pump with a diameter 90 mm, made of the highest quality materials and adapted to work in difficult conditions. Thanks increased sand resistance, it works perfectly in wells with a minimum internal diameter 100 mm.
Perfect for:
- supplying single and multi-family houses with water
- farms
- irrigating systems (sprinklers, drop lines)
- drainage applications
Product features:
- Increased sand resistance
- The highest quality construction materials
- Thermal protection built into the engine winding
- The capacitor built into the engine - no need for an external start box
- Warranty and post -warranty service
- 24 months of warranty
Technical data:
- Liquid temperature: 35 ° C
- Power supply: 230 V
- Insulation class: B
- Working mode: continuous
- Degree of protection: IP68
- Power cable length: 20 m
- Work position: vertical
- Max. Number of launching per hour: 20
- Depth of immersion: 100 m
- Engine speed: 2850 rpm
Materials:
- Suction/crowded body: brass
- Case: Aisi 304 stainless steel
- Shaft and rotor: Aisi 304 stainless steel
- Rotor and diffuser: PPO polymer
- Mechanical slam: Sic / sic / nbr
- Engine: oil -cooled
